Serijska številka proizvoda
T90552
Transportne dimenzije (DxŠxV)
620021502.13 m
Velikost sprednjih pnevmatik
400
Velikost zadnjih pnevmatik
60
Drugi podatki

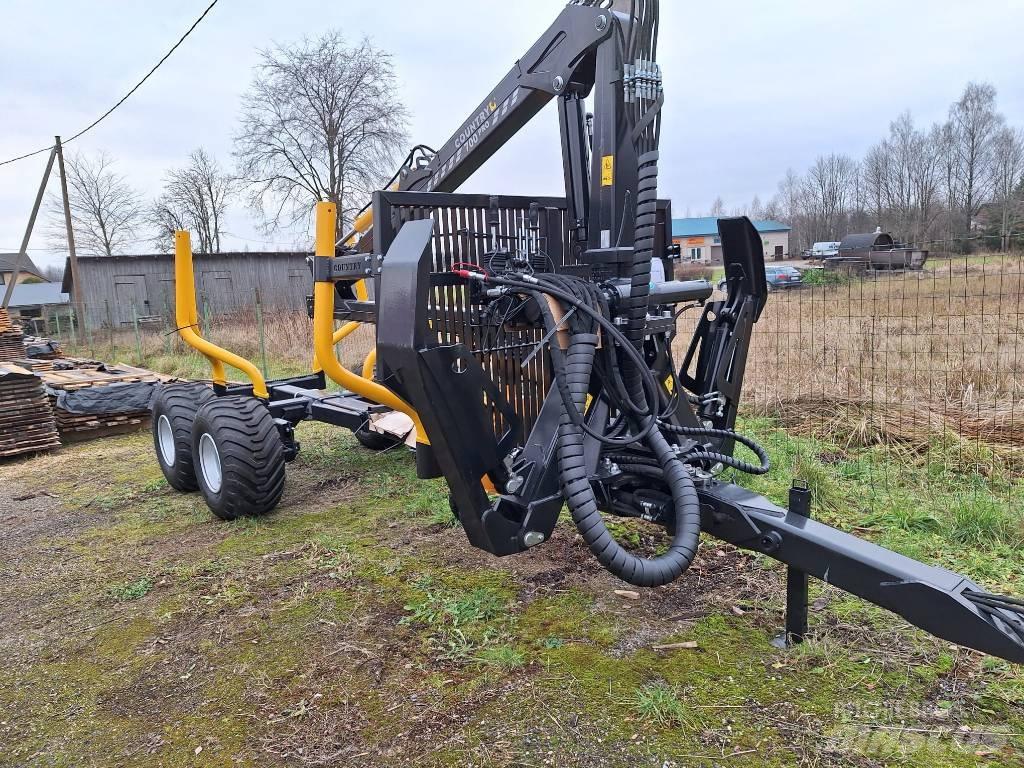

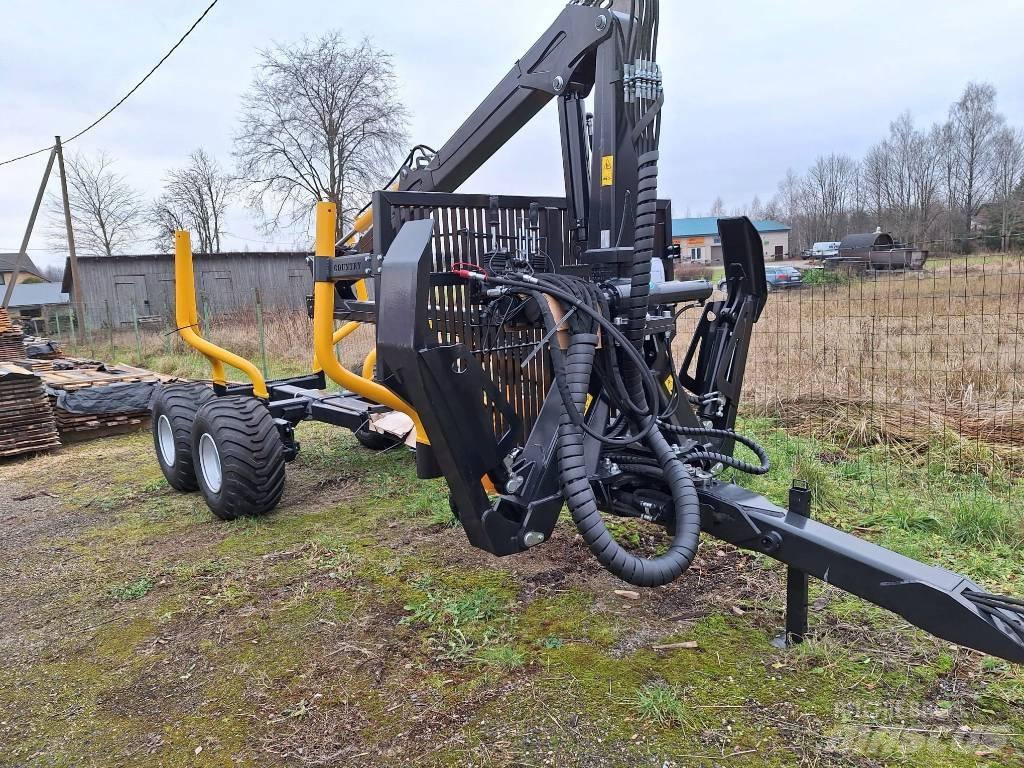

CRANE FPartner 700 PRO – Specifications:
• Maximum reach: 7 m
• Gross lifting torque: 50 kNm
• Lifting capacity:
o At 3.5 m – 1120 kg
o At full reach – 560 kg
• Rotation:
o Torque – 15 kNm
o Cylinders – 4 pcs.
o Angle – 380°
• Max axial load on rotator: 40 kN
• Operating pressure: 190 bar
• Weight (without support legs): 690 kg
• Support legs compatibility: FD/A
• Support legs weight:
o Type A – 319 kg
o Type FD – 338 kg
• Compatible grapples: 0.22 / 0.22 PRO
________________________________________
TRAILER FPartner 90DU – Specifications:
• Max load capacity: 9000 kg
• Total length: 6200 mm
• Width (standard wheels): 2150 mm
• Cargo platform area: 2.1 m²
• Cargo platform length: 3900 mm
• Weight (without crane and wheels): 1610 kg
• Standard wheels: 400/60-15.5 mm
• Chassis: 2 (200×100) mm
• Braking options: Hydraulic, pneumatic, or inertia brakes (optional)
• Cylinder control: 2 pcs.
________________________________________
Included Equipment:
• Grapple 0.22 (60) for 700 – For log handling
• Trailer with three beam pairs – For transporting heavy logs
• 700 Pro (ready for winch) + 4/8 on-off – Main control mechanism with winch compatibility
• Forestry wheels 400/60-15.5 – For stability on rough terrain
• Steering drawbar – Enhanced maneuverability
• Dual brake link system – Ensures reliable braking under heavy loads
• 700 FD-Type PRO support legs – Provides crane stability on uneven surfaces
• Hydraulic brakes (2 pcs.) – For safe operationNaprej
