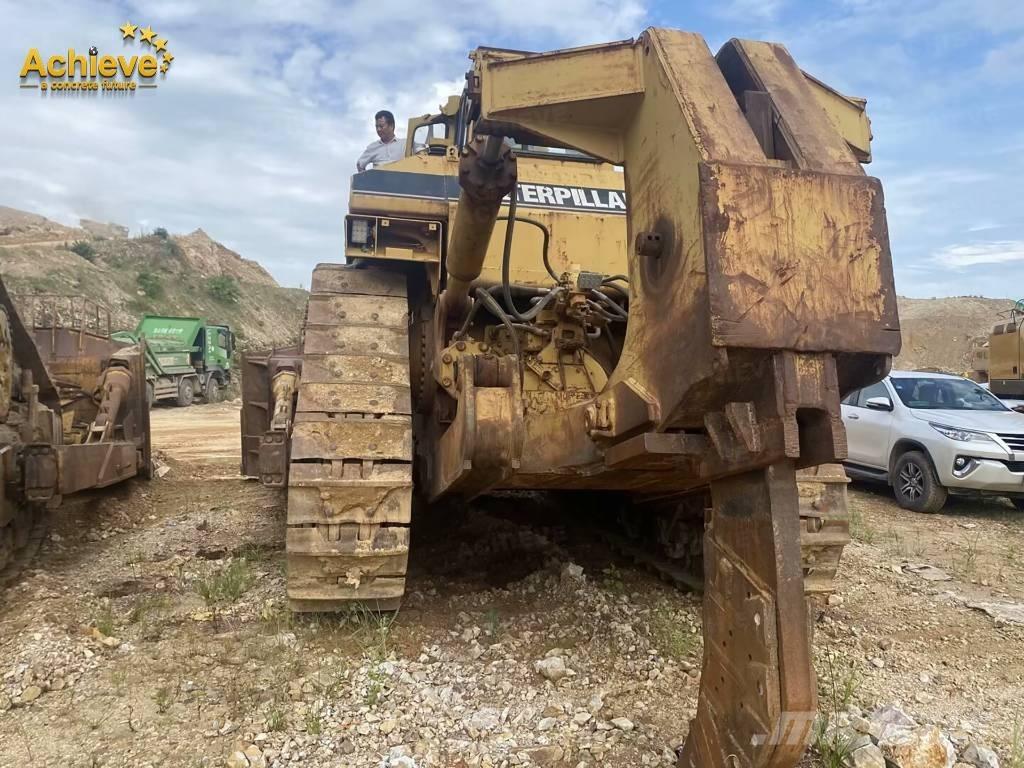

CAT D 11 N

Caterpillar D11N Browse All Caterpillar or Crawler Tractor Models Contents: Dimensions Undercarriage Engine Operational Transmission Hydraulic System Standard Blade Dimensions Length W/ Blade 27.53 ft in (8390 mm) Width Over Tracks 12.41 ft in (3780 mm) Height To Top Of Cab 14.97 ft in (4560 mm) Length Of Track On Ground 14.57 ft in (4440 mm) Ground Clearance 2.05 ft in (623 mm) Length W/O Blade 20.21 ft in (6160 mm) Undercarriage Track Gauge 9.49 ft in (2890 mm) Standard Shoe Size 27.96 in (710 mm) Ground Contact Area 9796.03 in2 (6.32 m2) Number Of Track Rollers Per Side 8 Ground Pressure 21.62 psi (149 kPa) Engine Engine Make 2236 Engine Model 3508 Gross Power 770 hp (574.2 kw) Displacement 2105.4 cu in (34.5 L) Aspiration Turbocharged Operational Operating Weight 211304.3 lb (95846 kg) Fuel Capacity 393.7 gal (1490 L) Hydraulic Fluid Capacity 44.7 gal (169 L) Transmission Transmission Type powerAshift Number Of Forward Gears 3 Number Of Reverse Gears 3 Max Speed - Forward 7.3 mph (11.6 km/h) Max Speed - Reverse 8.8 mph (14.1 km/h) Hydraulic System Relief Valve Pressure 3300 psi (22752.7 kPa) Pump Flow Capacity 161.2 gal/min (610 L/min) Standard Blade Width 18.4 ft in (5600 mm) Height 91 in (2310 mm) Capacity 33.5 yd3 (25.6 m3) Cutting Depth 30.5 in (774 mm) Source:
