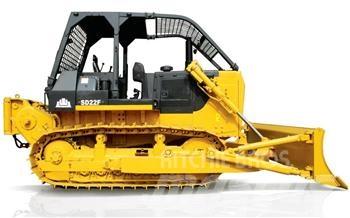

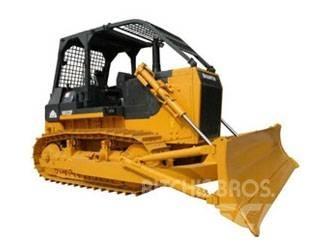

Shantui SD22F

Ripper Winch

ITEM 　UNIT SD22F L×W×H (Ripper not included) mm 5750×3725×3395 Operating weight (Ripper not included) t 23.4 Engine - Cummins NT855-C280S10 Rated power kW/rpm 162/1800 Gradeability ° 30 Blade type - Straight tilt blade Blade width mm 3725×1315 Dozing capacity m3 6.4 Ma× drop below ground of blade mm 540 Lift height of blade mm 1210 Ripper type - Single ripper Three-shank ripper Ripping depth of ripper mm Single ripper 695 Three-shank ripper 666 Lifting height of ripper mm Single ripper515 Three-shank ripper 555 Number of carriers (each side) - 2 Number of track rollers (each side) - 6 Number of track shoes (each side) - 38 Width of track shoe mm 560 Track gauge mm 2000 Ground length and ground pressure mm/MPa 2730-0.066 Pitch mm 216 Forward speed km/h 0–3.6 0–6.5 0–11.2 Reverse speed km/h 0–4.3 0–7.7 0–13.2
