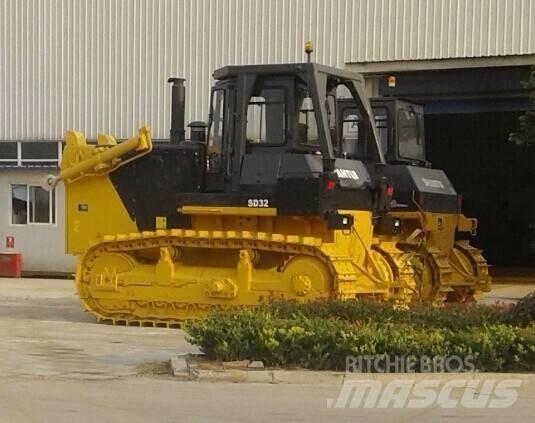

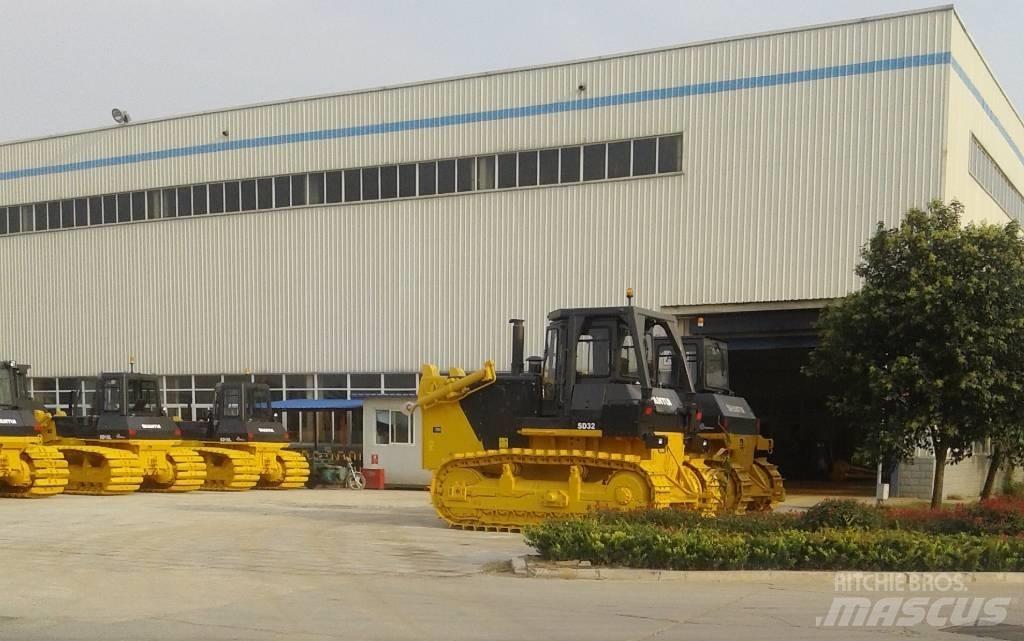

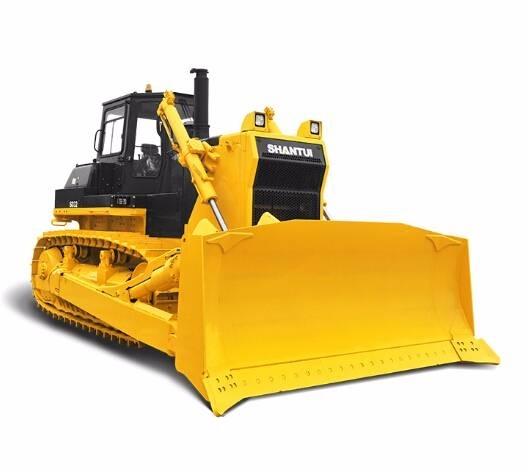

Shantui SD32

Cena brez DDV

Vprašaj za ceno

Compnay LOGO
Images3
Shantui SD32 Buldožerji goseničarji
Shantui SD32 Buldožerji goseničarji
Shantui SD32 Buldožerji goseničarji
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Buldožerji goseničarji
Znamka /model
Shantui SD32
Leto izdelave
2018
Dodatne možnosti
Novo/nerabljeno,Možnost najema,Obnovljeno
Kraj stroja
Jining, Shandong, China
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
9DD39A99

PODROBNOSTI

Inventarna št.
SD32
Zadnji pregled
yes
Popolna evidenca servisov
Da
Delovna širina
413 cm
Serijska številka proizvoda
SD32
Bruto teža
37,200 kg
Tip pluga
Ravni plug
Podvozje
Goseničen
Emisijski razred
Stage II
Tip kabine
Zaprta kabina
Motor
Cummins NTA855-C360S10
Izhodna moč motorja
232 kW (315 KM)
Širina gosenic
560 mm
Menjalnik
Shantui
Engine Manufacturer
Cummins
Transportne dimenzije (DxŠxV)
6880 x 4130 x 3730 mm
Originalna barva
yellow
Znamka gum
Shantui
Informacije o stanju/garancija
ISO9001
Ohranjenost profila sprednjih pnevmatik
100
Država izdelave
Kitajska
Opremljen za
propertynames.pp_equippedfor_2100012
Pogoji dostave
FOB, CFR, CIF, EXW
Certifikati
EPA, CE, ANSI
Dodatna oprema
Vitel
Klimatska naprava
Dodatna hidravlika
Enojni riper
Naprej
Drugi podatki
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Naprej
