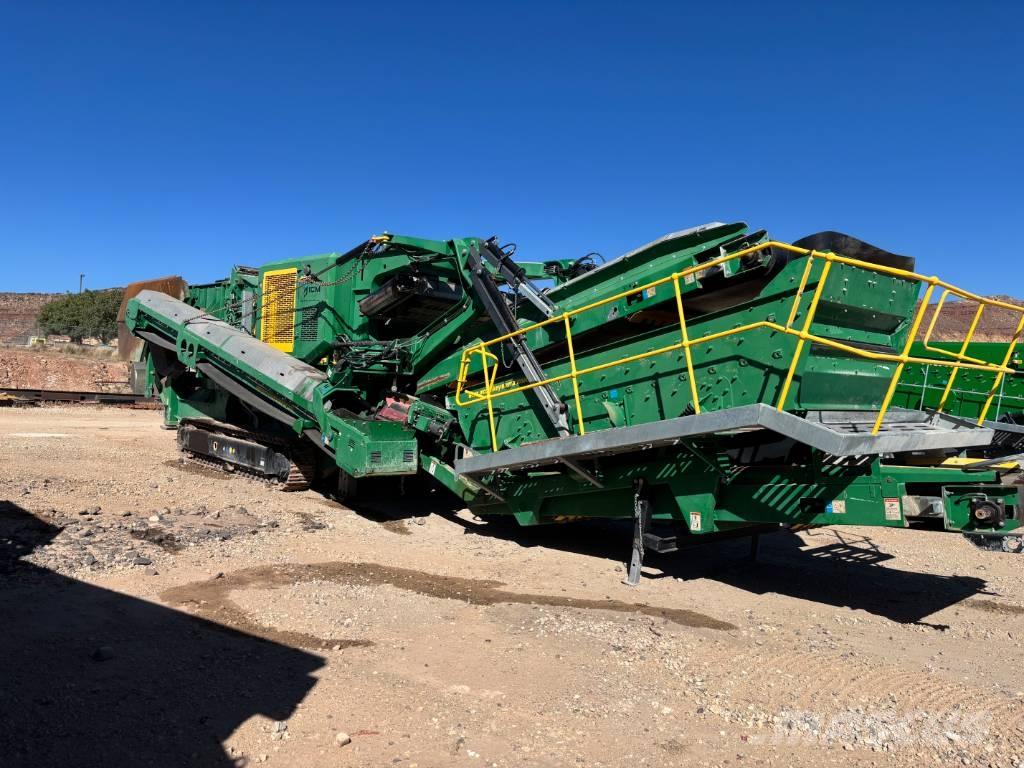

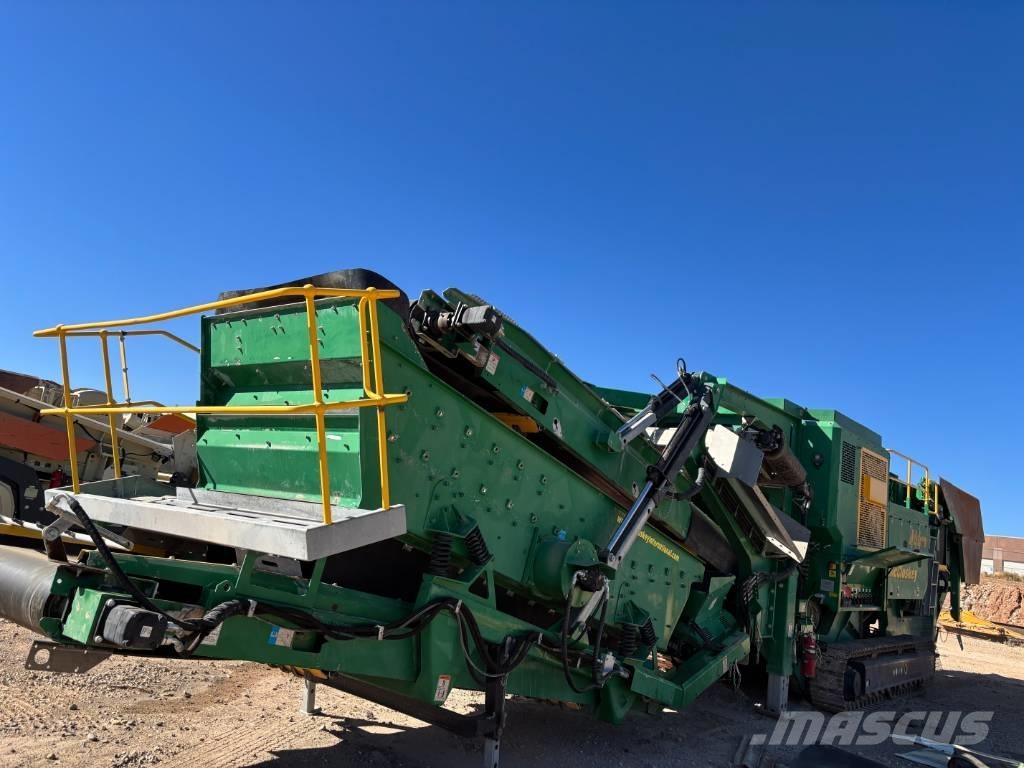

McCloskey I44RV3

2021 McCloskey I44Rv3HD IMPACT CRUSHER with 14X6 DOUBLE DECK RECIRCULATION SYSTEM Heavy duty track mounted Impact Crusher with (42in) x (44.3in) I-beam plate fabricated chassis construction Open chassis design for ease of maintenance. Hopper dimensions (7ft 1.8in) wide x (14ft 3.7in) long- volume of (7.85yd3) HOPPER EXTENSIONS - STANDARD SIZE TOP HALF DECK/BOTTOM FULL DECK SCREENBOX TOP SCREEN--SQUARE MESH - 1 1/2" BOTTOM SCREEN--SQUARE MESH - 1" Direct Drive Impactor - feed opening (45.2in.) x (27.9in.) HAMMERS/BLOWBARS INSTALLED 2 HIGH/2 LOW HALF HEIGHT HAMMER/BLOWBAR MARTENSITIC MARTENSITIC / CERAMIC HAMMERS HARDENED STEEL CURTAIN LINER Double Deck Grizzly Pre Screen (41.9in.) X (6ft 7.3in.) SHORTER PANFEEDER WITH PRE-SCREEN OPTION PUNCH PLATE (1in.) FIT BLANKING PLATES TO PRE-SCREEN BOTTOM DECK: Vibratory pan feeder under Impactor- (49.8in.) X (93.3in) UNDER PAN FEEDER OPTION Power unit information. CAT TIER 4F/STAGE V 9.3b 375 HP (280 KW) HYDRAULIC OIL AW68 OVERBAND MAGNET ON MAIN CONVEYOR (TWIN POLE) CHUTES INSTALLED ON THE MAIN CONVEYOR FOR OVERBAND MAGNET SIDE DISCHARGE CONVEYOR (3-PLY BELT - (32in.) DISCHARGE CHUTE ON RECIRCULATION FINES CONVEYOR RECIRCULATING RETURN CONVEYOR - (25.59 IN) MARTIN/ASGCO SCRAPER ON MAIN CONVEYOR DUST COVERS-SPRAY BARS-WATER PUMP UMBILICAL CORD WITH REMOVEABLE REMOTE CONTROL FOR CRAWLER TRACKS
