Metso HP 300

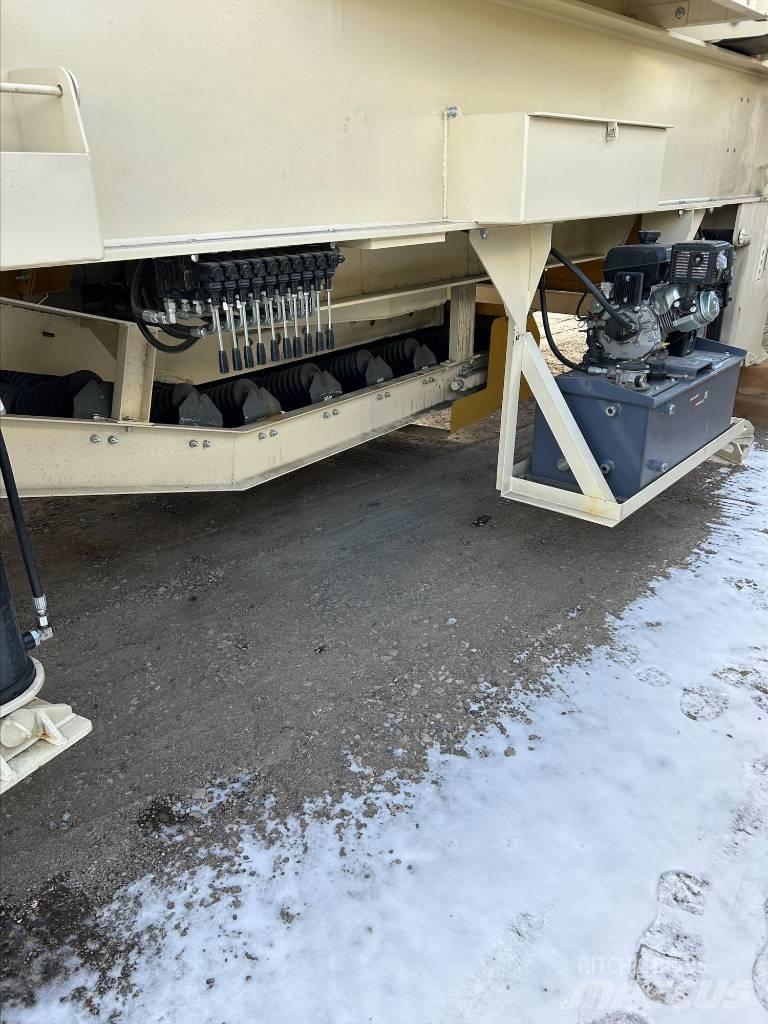

2022 Metso HP300 Closed Circuit Plant on Masaba Chassis w/ 6x20 Deister 3 Deck Screen CONE CRUSHER HP300 Lube Unit LUBRINATOR- THE LUBRICATION UNIT CONTAINS AIR-OIL COOLER, WHICH KEEPS OIL TEMPERATURE IDEAL FOR THE BEARING LUBRICATION. THE HYD UNIT HELPS DURING THE SETTING AND MAINTENANCE OPERATIONS MOBILE LUBRICATION UNIT-INCLUDED CRUSHER ECCENTRICITY- STANDARD MAIN UNIT HYD MOTOR LOCATION-ON COUNTER-SHAFT CENTERLINE CRUSHER CAVITY-INCLUDED STANDARD COARSE MOTOR POSITION- STANDARD BTW 8 AND 4 O'CLOCK DRIVE- SINGLE DRIVE ACCUMULATOR CERTIFICATION-STNDRD AMBIENT TEMP- MINIMUM TEMP 5F CRUSHER PULLEY-INCLUDED MOTOR GROOVES TYPE- 8V ACCUMULATOR CHARGING KIT-INCLD OPTIONS COOLER LOCATION- ON LUB UNIT FAN-COOLED AIR COOLER TYPE-AIR COOLER UP TO 40C 3 Deck, 6' x 20' Standard Duty Triple-shafted Horizontal Screen ONE - TYPE TFM3P-3620, triple deck, 6' x 20' Deister Standard Duty Triple-shafted Standard Duty Horizontal Vibrating Screen, LESS steel wire screen cloth, but INCLUDING: Screen Vibrating Frame  Trunnion type spring support mounts on each corner, baked epoxy coated support springs  Snubbers (friction checks) - spring loaded  1/4" thick HSLA steel sideplates formed along the top and bottom, with 5/16" thick formed HSLA steel reinforcing plates bolted to sideplates between bearing housing and sideplates  Access ports with cover plates in the sideplates  Removable back plates, rubber flap and steel combination  Screen media support panel configuration o Top deck – Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates o Middle deck - Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates o Bottom deck - Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates  4" long discharge lips protected by 1/4" thick AR steel replaceable wear plates  Tension plates (skirtboards)  Deister heavy duty tension screen cloth tensioning devices  Feed box with 1/4" AR steel replaceable wear plate in the bottom\ Eccentric Mechanism  The triple-shafted “gear-type” vibrating mechanism is located between the middle and bottom decks and equipped with 120 mm. spherical roller vibrating screen bearings  Steel-flanged vibrating mechanism tubes bolted to the sideplates  Oil fill and drain plugs and the oil level gauges located on the outside surface of the vibrating mechanism end covers plate  Deister “slingermist” oil bath lubrication system, with labyrinth type dust and oil seals requiring approximately 3-1/2 gallons of oil in the vibrating mechanism end covers acting as the oil reservoir and requiring only oil changes every 500 hours  Each vibrating mechanism tube is protected by a 3/8" thick steel-backed rubber shield tack welded to the tube  Eccentric shafts with adjustable weights for stroke adjustment  Bronze sleeve between bearing and shaft Drive System  Deister heavy duty rubber torsion pivoted motor base, less motor support  Wideband V-belt, and motor sheave  Belt guard, less mounting brackets Screen Parameters  Screen is horizontal  Approximate operating speed: 790 RPM  Approximate stroke setting: 11/16"  Estimated weight (screen only): 18,600 lbs.  Heavy-Duty Frame construction o Screen mount and extended discharge lip for cone feed. Top and second deck overs feed cone with removable gated on second deck to by-pass to cross conveyor. Third deck overs feed cross conveyor with flop gate to pass overs to under screen conveyor. o Cone mount with feed basket. o Hydraulic lube package mounted on outside of trailer beam. o Under-screen hopper o Leg mounts for customer supplied hydraulic lifting legs o Walkways around screen and cone crusher w/ ladder access o 42” under crusher conveyor frame o 60” under screen conveyor frame o 42” Overhead feed conveyor
