Horyong BMK-403 ECO

Cena brez DDV

Vprašaj za ceno

Compnay LOGO
Images6

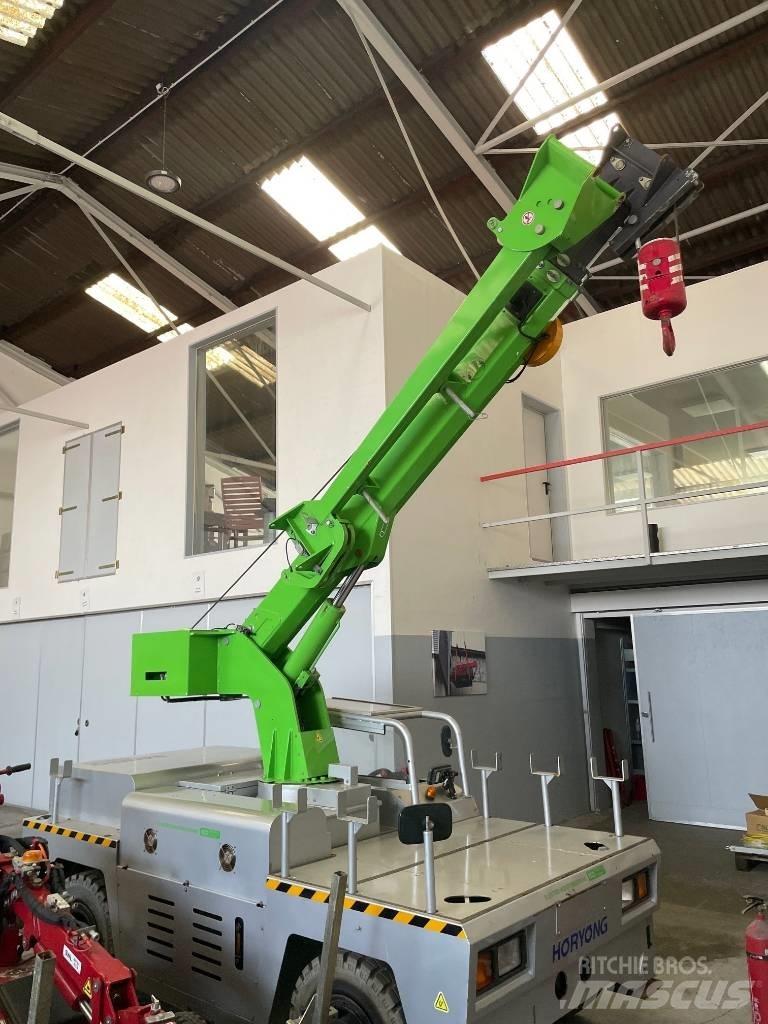

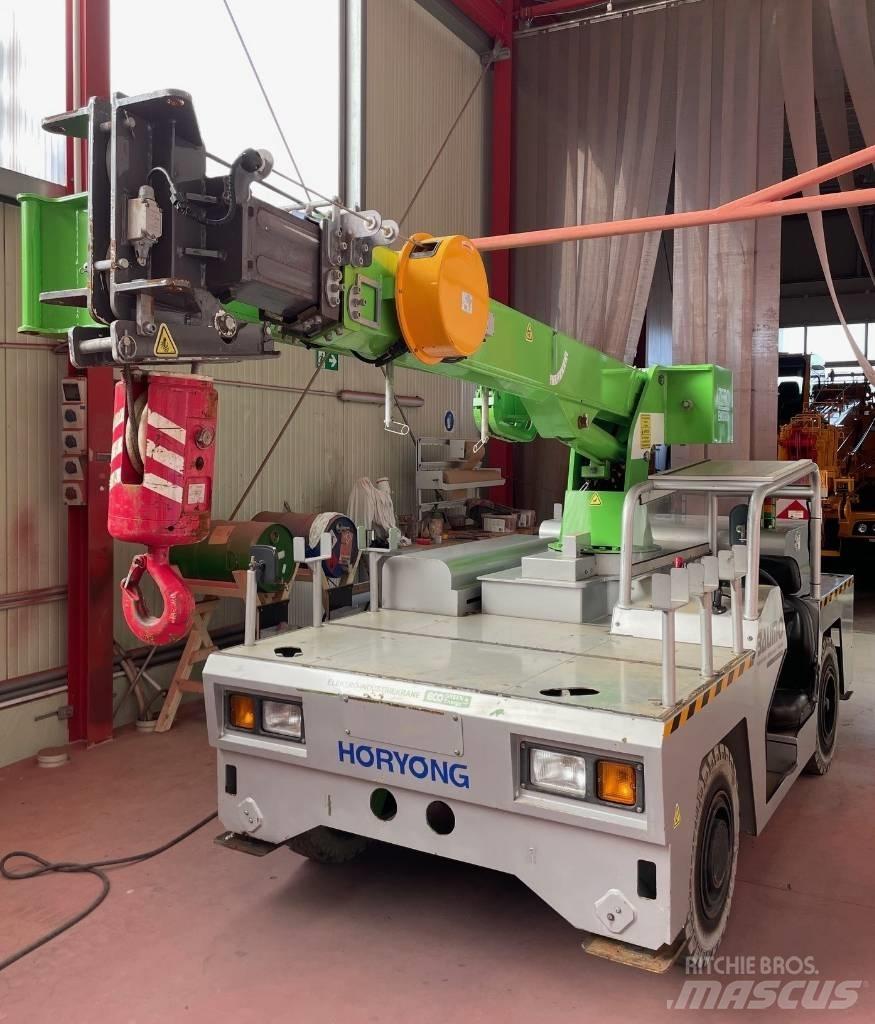

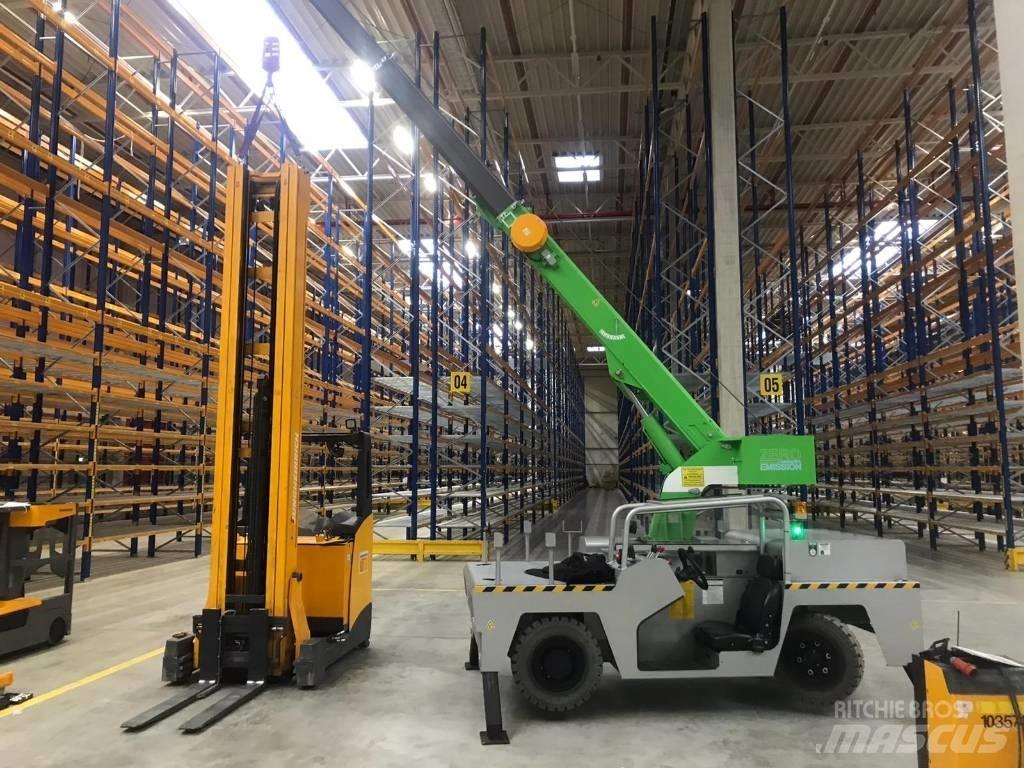

Horyong BMK-403 ECO Druga dvigala/žerjavi
Horyong BMK-403 ECO Druga dvigala/žerjavi
Horyong BMK-403 ECO Druga dvigala/žerjavi
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Druga dvigala/žerjavi
Znamka /model
Horyong BMK-403 ECO
Leto izdelave
2018
Delovne ure
287 h
Kraj stroja
Duisburg, Nordrhein-Westfalen
Država
Nemčija
Splošna ocena
1
2
3
4
5
Mascus ID
A65059D6

PODROBNOSTI

Število prejšnjih lastnikov
1
Bruto teža
4,019 kg
Dvižna nosilnost
4,200 ton
Nosilnost na koncu kraka
3,000 ton
Dolžina teleskopa
6.80 m
Premični krak
2.20 m
Dolžina kraka
6.80 m
Dvižna višina
10.2 m
Višina vodoravno postavljenega kraka žerjava
8.40 m
Višina dvignjenega kraka žerjava
2.21 m
Zgornji motor
see chassis
Zgornje ure
200 h
Originalna barva
Silber-Grün
Nosilec motorja
Electric
Transportne dimenzije (DxŠxV)
435000 x 157000 x 205000 mm
Tip nosilca
Kolesni
Znamka gum
NM-Bereifung
Ohranjenost profila sprednjih pnevmatik
90
Ohranjenost profila zadnjih pnevmatik
90
Država izdelave
Južna Koreja
Pogoji dostave
FCA, CPT, EXW
Certifikati
CE, TÜV
Dodatna oprema
Hakenflasche 1-rollig
Dodatna oprema
Kavlji
Dokumenti
Traglasttabellen-Horyong-BMK-403-ECO-Hauptausleger-abgestutzt.pdf
Drugi podatki
Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Naprej
