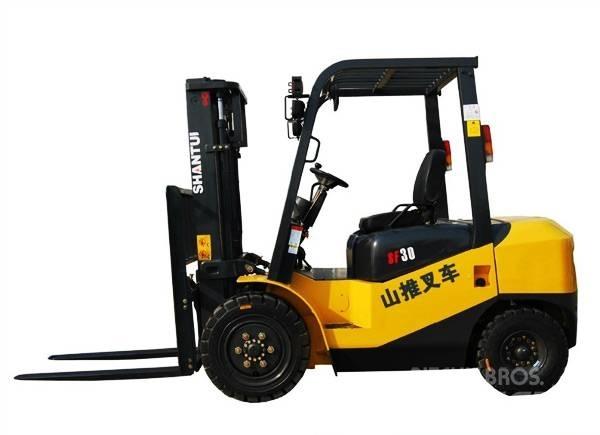

Shantui SF30

Cena brez DDV

Vprašaj za ceno

FavoritePriljubljena
shareDelež
Save searchShrani iskanje
report adPrijavi sumljiv oglas

INFORMACIJE

Kategorija stroja / vozila
Drugo
Znamka /model
Shantui SF30
Leto izdelave
2015
Dodatne možnosti
Novo/nerabljeno
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
A43EB042

PODROBNOSTI

Popolna evidenca servisov
Da
Država izdelave
Kitajska
Pogoji dostave
FOB, CFR, CIF
Drugi podatki
ITEM Unit SF30 General Load capacity kg 3000 Load center mm 500 Power type Diesel Dimensions Lift size mm 3000 Free lift height mm 160 Fork size mm 1070×122×45 Mast tilt angle deg 6/12 Fork overhang mm 495 Overall dimensions Full length mm 2704 Full width mm 1226 Height with mast not lifted mm 2140 Height with mast lifted mm 4272 Overhead guard height mm 2140 Minimum turning radius mm 2400 Minimum right angle passage width mm 2100 Performance Drive speed (full load/no load) Hydraulic forklift truck km/h 19/20 Mechanical forklift Gear I 8.8/8.8 Gear II 20/20 Full-load lifting speed mm/sec 450 Maximum gradeability % 20 Curb weight kg 4500/4474 Tires Front wheel 28*9-15-14PR Rear wheel 6.50-10-10PR Wheel & tires Tread Front wheel mm 1000 Rear wheel mm 980 Wheelbase mm 1700 Ground clearance (full load/no load) Mast mm 110/135 Frame mm 130/135 Drive units & control Engine Applicable vehicle type SF30AT Model 490BPG CA498 Rated power kW/rpm 8/573 3/175 Rated torque N.m/rpm 37/475 19/180Naprej

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kitajska
