APV B134 MGS-20

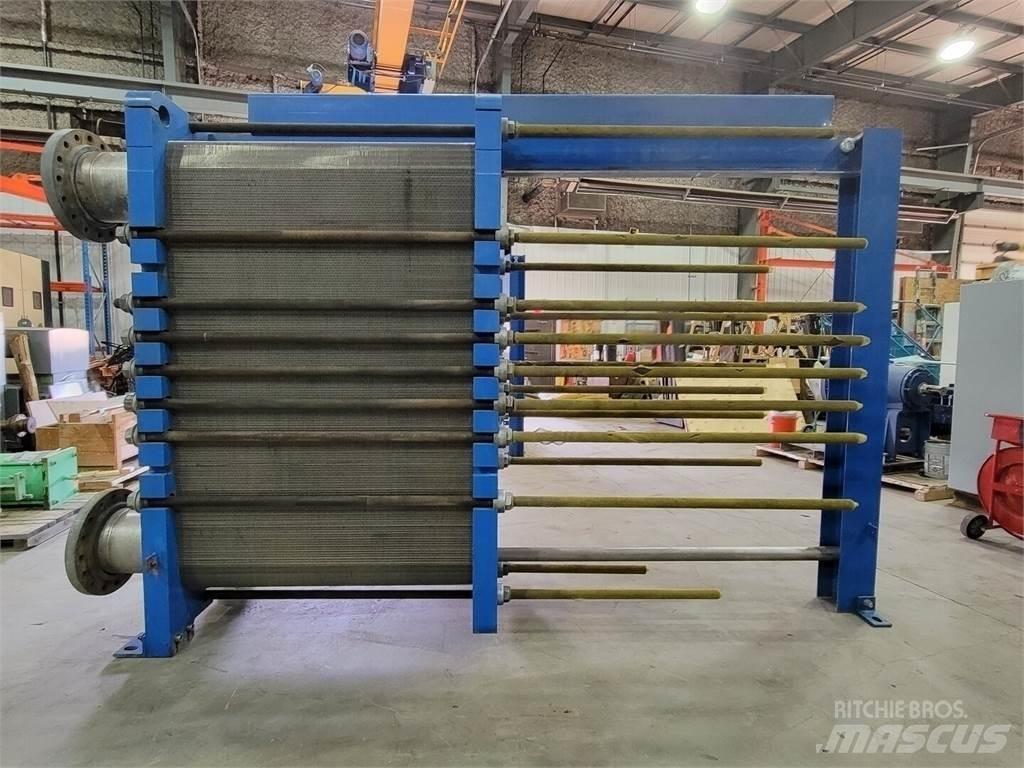

Paraflow B134 MGS-20 Plate Heat Exchanger Title: Paraflow B134 MGS-20 Plate Heat Exchanger SKU: 82863 Model: B134 MGS-20 Year: 2007 Condition: Used S/N: 20053003000606 Made In: UNITED STATES Dimensions: 111.00 (H) x 41.00 (W) x 164.00 (L) inches Max. Allowable Working Pressure: 399 PSIG/FV ... 302 oF Min. Design Metal Temperature: -20 oF ... 399 PSIG/FV Operating Temp.: Max. 302 oF / Min. -20 oF Heat Transfer Area: 5524.3 sq. ft. Frame Size: No. 35 Max. Frame Capacity: 537 Plates Dry Weight: 20462 lbs. Flooded Weight: 24230 lbs. Total Liquid Volume: 452.4 US Gals. (1712.6 L) Operation Liquids: Lean diethanolamine, inhibited water Materials Frame: SA-516-70N Plates: SA-240-316 Gasket: EPDM (Peroxide cured) Tie Bars: SA-193 B7 Shroud: 304 SS Nozzle Lining: 316 SS Bolts/Nuts (Internal): SA-193-B7M / SA-194-2HM Bolts/Nuts (External): SA-193-B7 / SA-194-2H [Datasheet](...
