Haas VF-7/50
Cena brez DDV
Natisni
INFORMACIJE
Kategorija stroja / vozila
Gradbeništvo - drugo
Znamka /model
Haas VF-7/50
Leto izdelave
2006
Dodatne možnosti
Rabljena
Kraj stroja
Langley, British Columbia
Država
Kanada
Mascus ID
8D35D632
CENA
Izberite valuto
PODROBNOSTI
Inventarna št.
138726
Drugi podatki
30 hp Vertical Machine Centre VF-7/50
Title: 30 hp Vertical Machine Centre VF-7/50
SKU: 138726
Model: VF-7/50
Year: 2006
Condition: Used

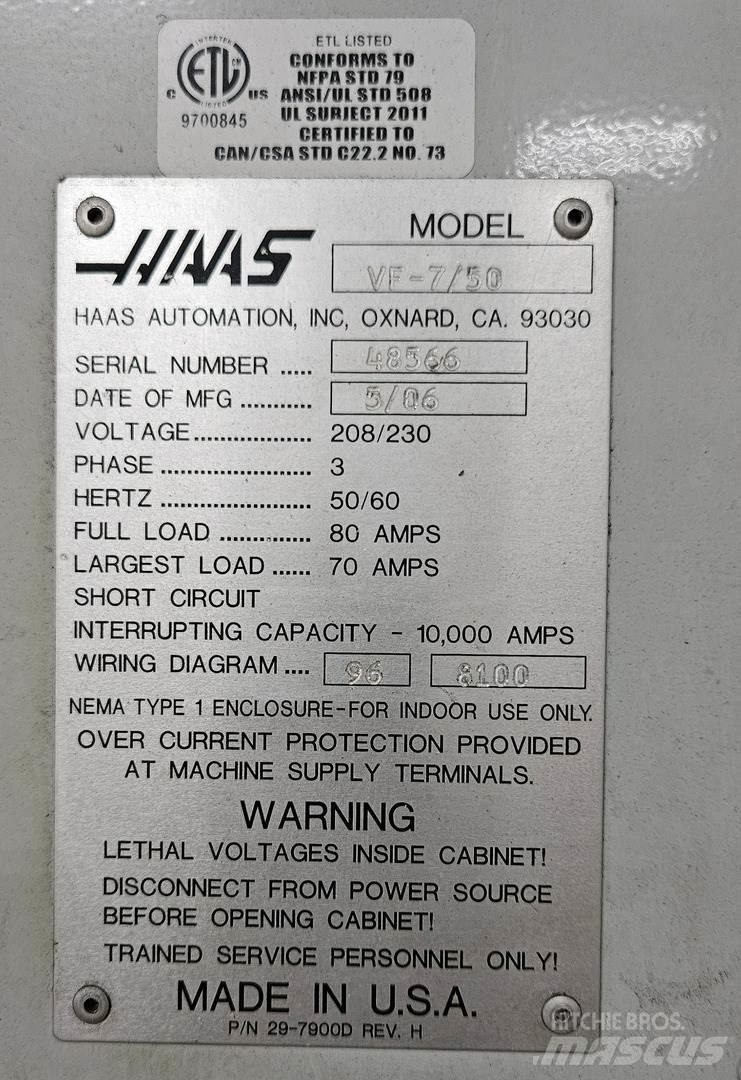

S/N: 48566
GeneralSpindle Taper:CAT 50
Cross Travel (Table):84 x 32 x 30"
Table Size:84 x 28"
Speed:7500 rpm
CNC:Yes
ElectricalVoltage:208/230volts
Phase:3-phase
Amps:80amps
Vertical Machining Center with Haas CNC Control
Table Size: 84" x 28"
Maximum Weight on Table: 4000 lbs
Travels:
- X-Axis: Travel 84"
- Y-Axis: Travel 32"
- Z-Axis: Travel 30"
Spindle Speed: 7,500 RPM
Spindle Nose to Table: 4" - 34"
Number of Tool Positions: 30+1 Station Side Mounted ATC
Rapid traverse rates (x, y, z): 400 ipm / 600 ipm / 600 ipm
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Kanada
