Skoda SK40A

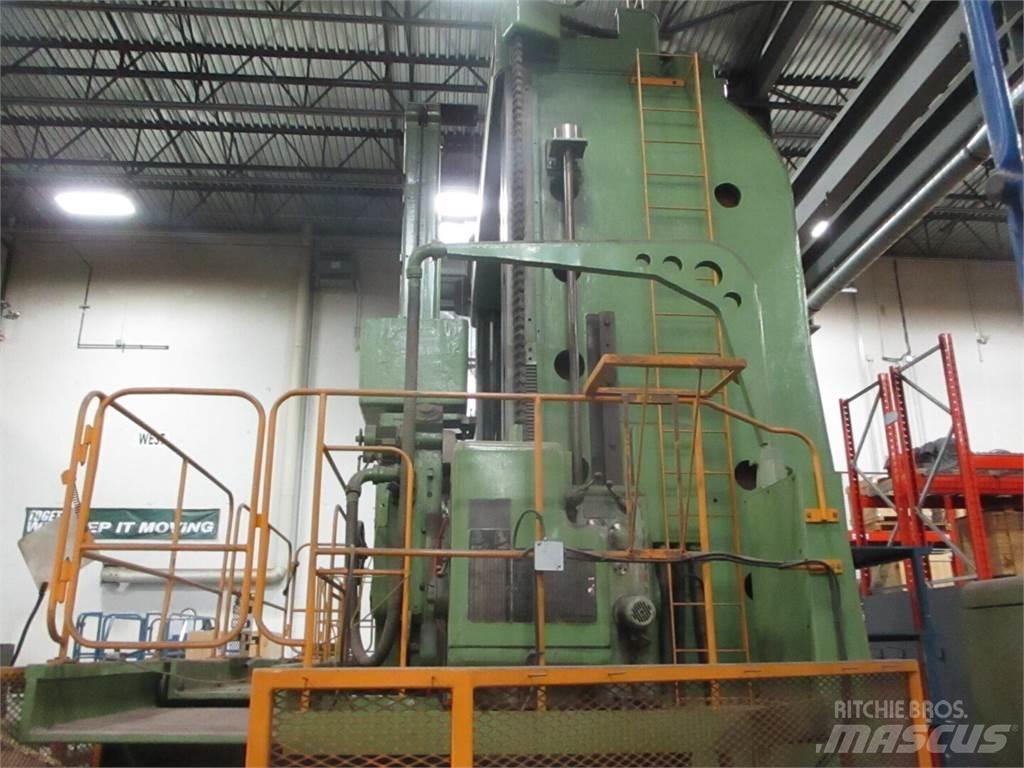

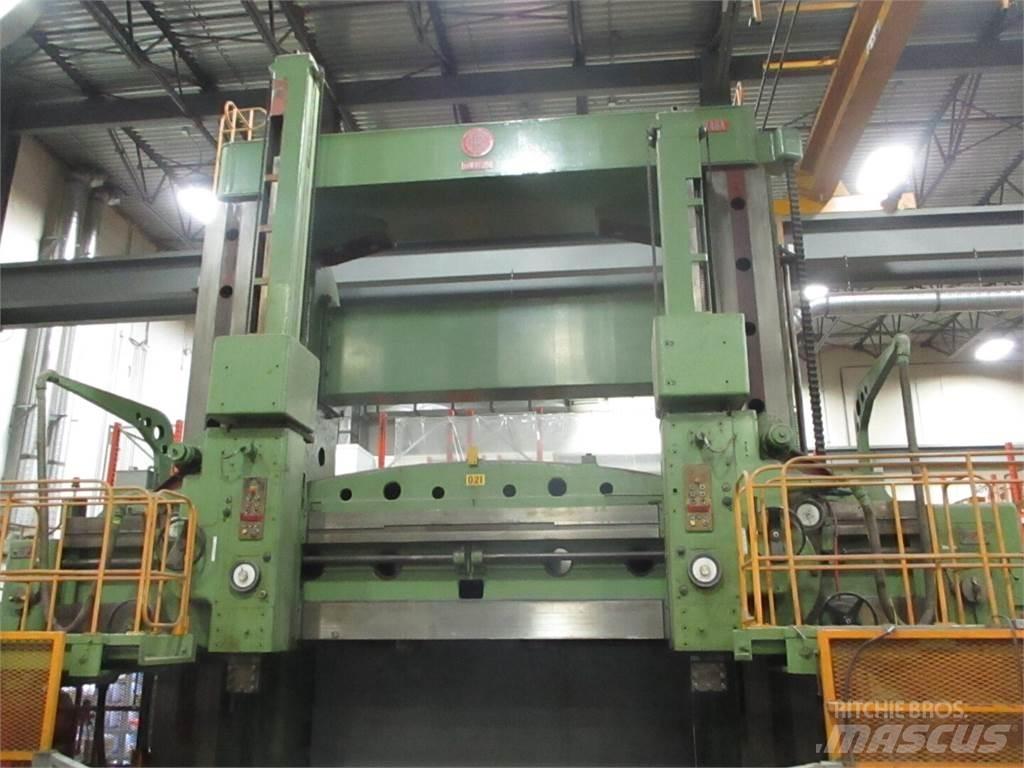

148" Vertical Boring Mill SK40A Title: 148" Vertical Boring Mill SK40A SKU: 130450 Model: SK40A Condition: Used ElectricalVoltage:480volts Phase:3-phase Electric Motors: - Main motor: 100 hp - Rapid motors: 3 hp - Cross rail lift motor: 22 hp Turning Capacity: - 4-jaw chuck diameter: 148.5" - Max diameter turned with side head: 157.5" - Max swing: 169.3" - Max workpiece weight: 139,000 lbs - Side head max tool working height: 127.95" - Left ram stroke: 100" - Right ram stroke: 96" - Cross rail travel: 135.8" - RPM with load: 0.4-11 RPM Machine Weight and Component Weights: - Net weight of machine with standard components: 253,460 lbs Basic Component Weights: - Drive gearbox and rails: 6,500 lbs - Bed and gearbox: 29,000 lbs - Chuck: 27,000 lbs - Columns (each): 33,000 lbs x 2 - Cross slide with feed boxes: 38,000 lbs - Tool heads (each with counterweight): 29,000 lbs x 2 - Side head: 22,000 lbs - Connecting beam: 14,000 lbs Improvements: - CSA certified electrical cabinet and control components - Replacement of all rotating bearings upon startup and commissioning - Fresh paint job
