INFORMACIJE

Kategorija stroja / vozila
Kamionske črpalke za beton
Znamka /model
ACHIEVE AP300-TD
Leto izdelave
2024
Dodatne možnosti
Novo/nerabljeno
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
49885CF8

CENA

Izberite valuto

PODROBNOSTI

Serijska številka proizvoda
Concrete trailer pump truck parameters
Zadnji pregled
2024-09-26
Bruto teža
2,600 kg
Tip premikanja
na gosenicah
Tip moči črpalke
Dizel
Moč črpalke
50 kW
Transportne dimenzije (DxŠxV)
46000 x 17800 x 17200 mm
Engine manufacturer
Deutz, Köln-deutz
Tip pumpe
Batna
Država izdelave
Kitajska
Pogoji dostave
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Theoretical maximumthroughput 5-25 m³/h 5-30 m³/h 45m³/h Maximum conveying pressure 80bar 70bar 80bar Specification of conveying cylinder 160 ㎜ 150㎜ 180mm Work schedule 800mm 1000㎜ 1000mm Maximum stroke per minute 27 30 30 Engine brand Deutz, Köln-deutz Deutz, Köln-deutz DEUTZ (imported from Germany)/Dalian diesel engine in China Engine type TD2.9-L4 (EKZ11501) 2200r/min TD2.9-L4(EKZ11505) 2200r/min TCD3.6L04/BF4M2012-09T3R Power 50KW 55KW (3.7562 Horsepower) 74.4Kw/72Kw Discharge US EPA Tier 4 US EPA Tier 4 Euro 5/Country 3 Fuel tank volume 65L 98L 98L Volume of hydraulic tank 200L 200L 200L Hopper structure S valve S valve S valve Hopper height 960㎜ 960㎜ 1250mm Hopper capacity 260L 260L 300L Outlet diameter 125 ㎜ 125㎜ 125mm Maximum aggregate size ≤30㎜ ≤30㎜ ≤40mm Trailer Single Shaft、electric controller Single Shaft、electric controller Single Shaft、electric controller Weight 2300Kg 2600㎏ 2600㎏ External
Drugi podatki

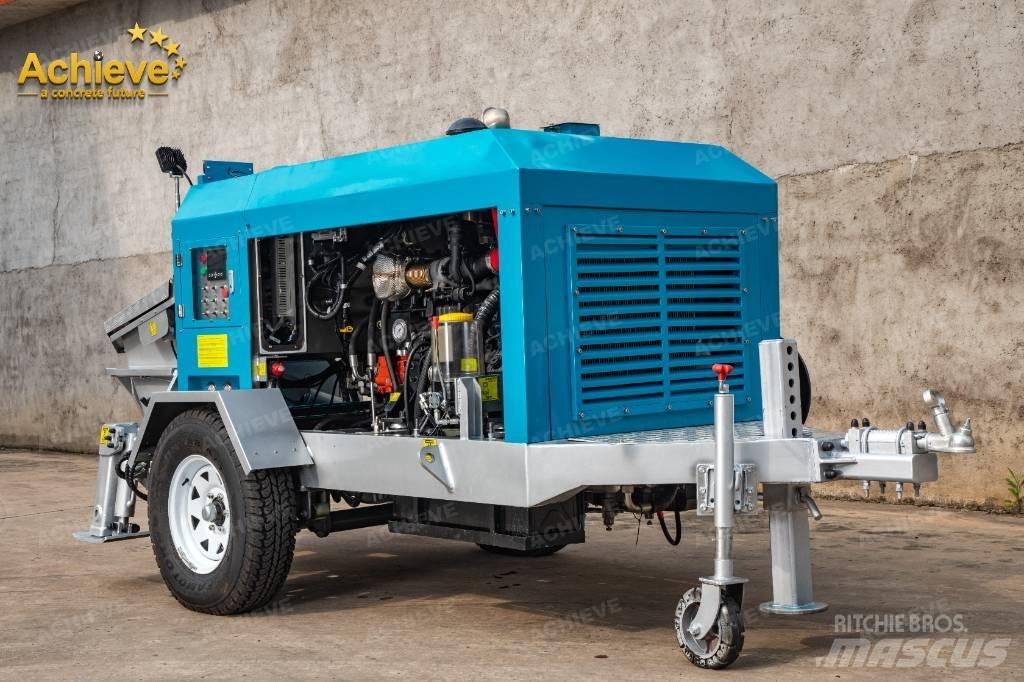

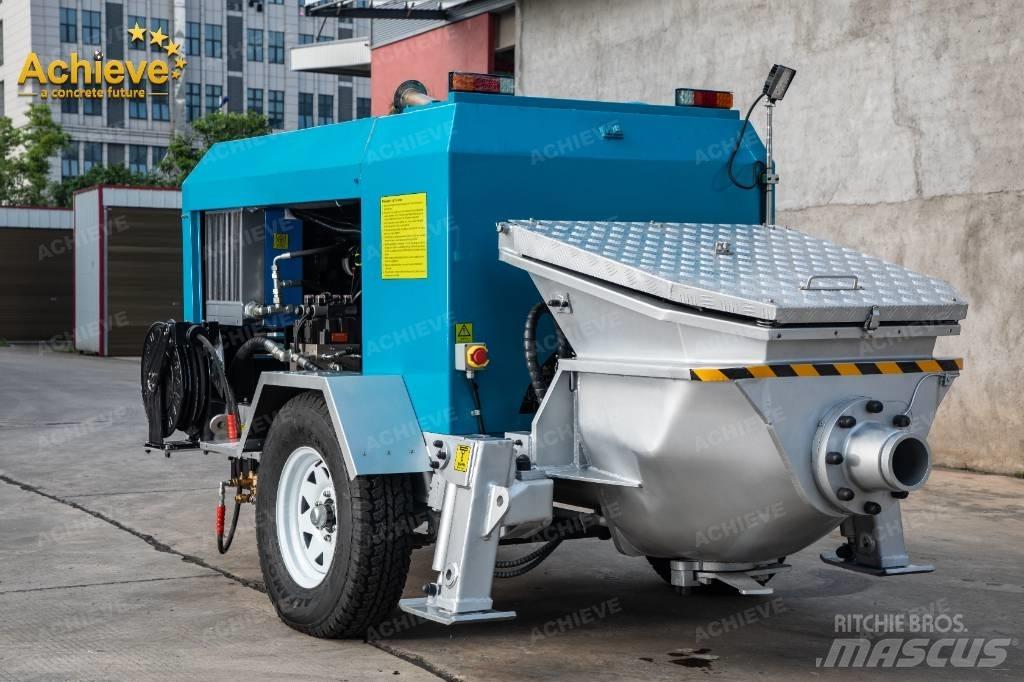

ACHIEVE AP300-TDE European Version Of Concrete Pump New Product Trailer Mounted Concrete Pump The AP300 piston pump is ideally suited for controlling shotcrete smaller than 30 mm, and the AP300 engineers designed and defined a completely new product based on the criteria used by customers in the European market. This machine has more power and a higher lightweight, and every detail has been thought through. The AP300 is easier to maintain than any previous model, requires less maintenance costs and is our most user-friendly design. In addition, ACHIEVE will be happy to explain to you additional advantages and questions about your individual requirements 1.Use industrial motion controllers to optimize fuel output. 2.The new engine technology of Deutz engines imported from Germany - clean and efficient is suitable for all the requirements of the Stage V "emission standard", obtained the clean emission certificate from the United States, with more power and higher delivery rate. 3.TNaprej

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kitajska
