Putzmeister M46-5

Cena brez DDV

Images58Videos1

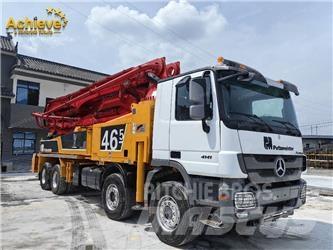

Putzmeister M46-5 Kamionske črpalke za beton
Putzmeister M46-5 Kamionske črpalke za beton
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Kamionske črpalke za beton
Znamka /model
Putzmeister M46-5
Leto izdelave
2013
Delovne ure
3,000 h
Dodatne možnosti
Obnovljeno,Obnovljeno
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
FF862F64

CENA

Izberite valuto

PODROBNOSTI

Inventarna št.
AICPT016
Število boom delov razmahov
5
Zadnji pregled
2024-09-26
Bruto teža
32,000 kg
Dolžina teleskopa
300 cm
Maksimalni horizontalni doseg
4,110 cm
Največji vertikalni doseg
4,610 cm
Tip premikanja
mirujoč
Tip moči črpalke
Dizel
Moč črpalke
300 kW
Transportne dimenzije (DxŠxV)
11850 x 2500 x 4000 mm
Emisijski razred
Stage V
Engine manufacturer
Ergonic3. EU Version
Tip pumpe
Batna
Proizvajalec šasije
Mercedes Benz
Znamka gum
Mercedes Benz
Pogoji dostave
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Drugi podatki
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducNaprej

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kitajska
