Putzmeister M49-5

Cena brez DDV

Images35Videos1

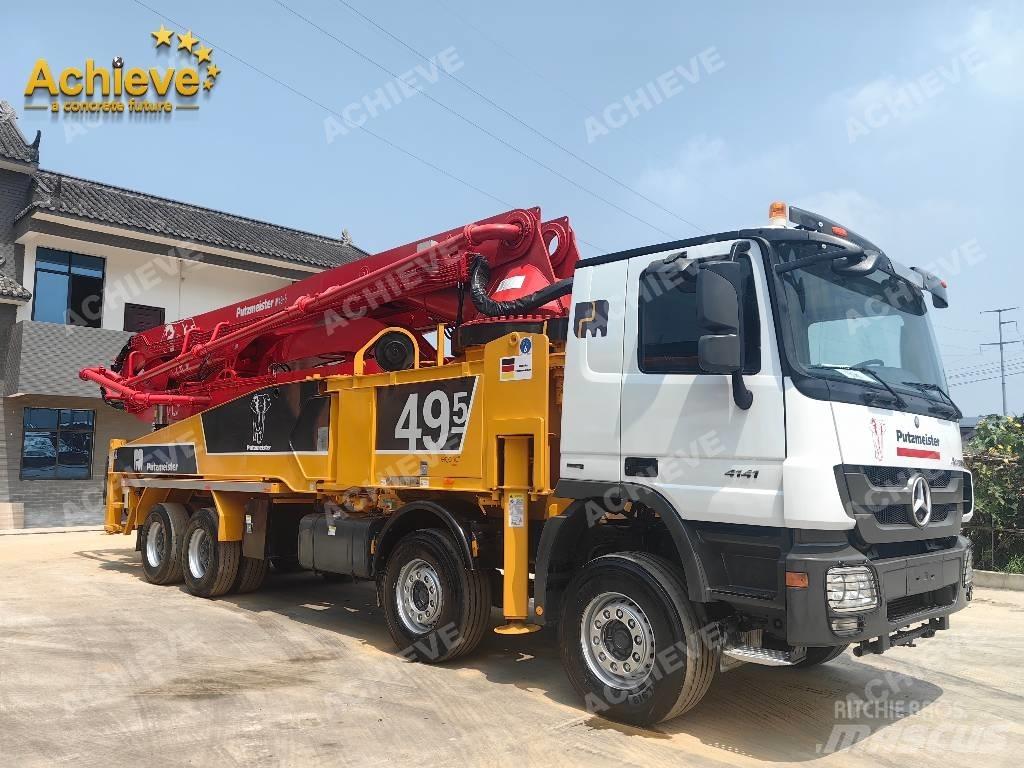

Putzmeister M49-5 Kamionske črpalke za beton
Putzmeister M49-5 Kamionske črpalke za beton
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Kamionske črpalke za beton
Znamka /model
Putzmeister M49-5
Leto izdelave
2013
Delovne ure
3,000 h
Dodatne možnosti
Obnovljeno,Obnovljeno
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
8A178F24

CENA

Izberite valuto

PODROBNOSTI

Inventarna št.
AICPT026
Število boom delov razmahov
5
Zadnji pregled
2024-09-26
Bruto teža
32,000 kg
Dolžina teleskopa
400 cm
Maksimalni horizontalni doseg
3,730 cm
Največji vertikalni doseg
4,160 cm
Tip premikanja
mirujoč
Tip moči črpalke
Dizel
Moč črpalke
300 kW
Transportne dimenzije (DxŠxV)
11500 x 2500 x 4200 mm
Emisijski razred
Stage V
Engine manufacturer
Mercedes Benz OM501LA.III/17
Tip pumpe
Batna
Proizvajalec šasije
Mercedes Benz
Znamka gum
Mercedes Benz
Država izdelave
Kitajska
Pogoji dostave
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Boom M 42-5 Sections 5 Reach height m 41.6 Horizontal reach gross m 37.3 net m 34.5 Reach depth max. m 31.0 Unfolding height m 8.6 End hose length m 4 Folding system RZ Delivery line DN 125 Pump BSF .16 H .17 i LS Rod side Output m³/h 160 - Delivery pressure bar 85 - Strokes 1/min. 31 - Piston side Output m³/h 108 170 Delivery pressure bar 130 85 Strokes 1/min. 21 27 Delivery cylinder Ø mm 230 250 Stroke mm 2100 2100
Drugi podatki
Truck-mounted concrete pump 49-5 Efficiency and flexibility on 4 axles Get ahead with 5 arms 49-5, this means a 49 m vertical reach distributed over 5 arms with a compact design in roll Z-folding system. 5 arms, this means a high degree of versatility. Optimized kinematics also ensures that there is no noticeable dead space. A placing boom in roll Z-folding system combines a compact design with a low unfolding height, optimum slip characteristics and the best use of the horizontal reach from the front edge of the truck. This means that you benefit from the advantages of the roll and of the Z-folding system in an economic way. Get closer to the action with less space requirement Set-up times can be kept as short as possible. With the TRDI support developed by Putzmeister, you save time and space, without compromising on safety. Double telescoping support legs can also be securely placed in minimal spaces between obstacles. Thanks to the optional One Side SupportNaprej

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kitajska
