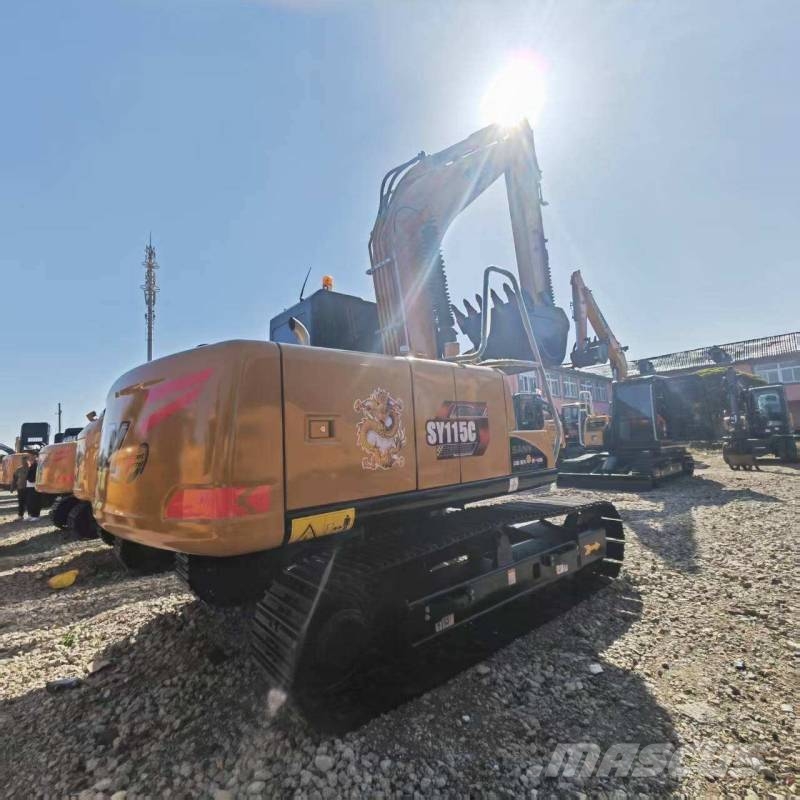

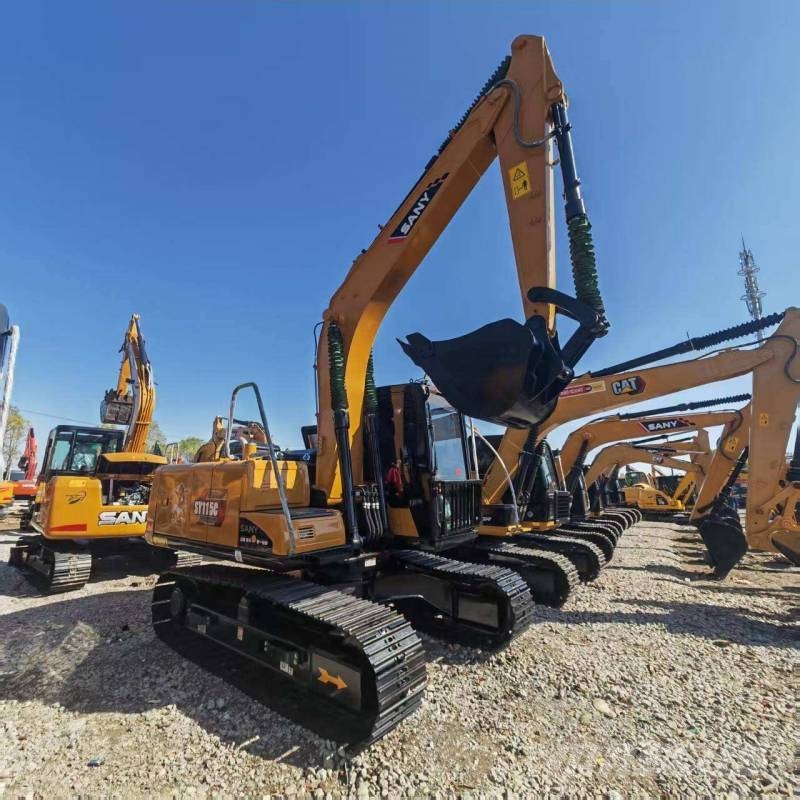

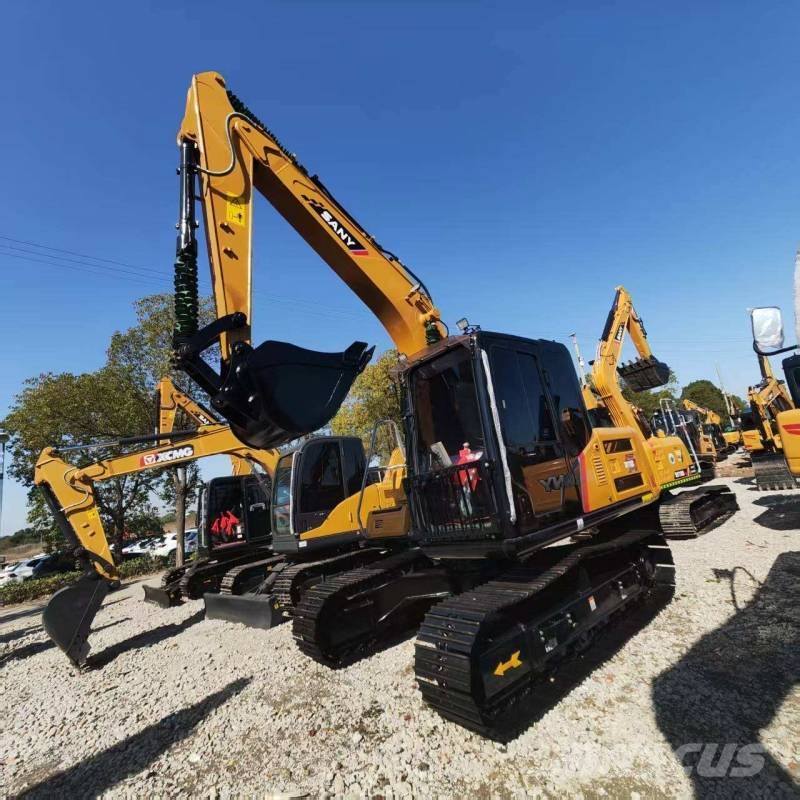

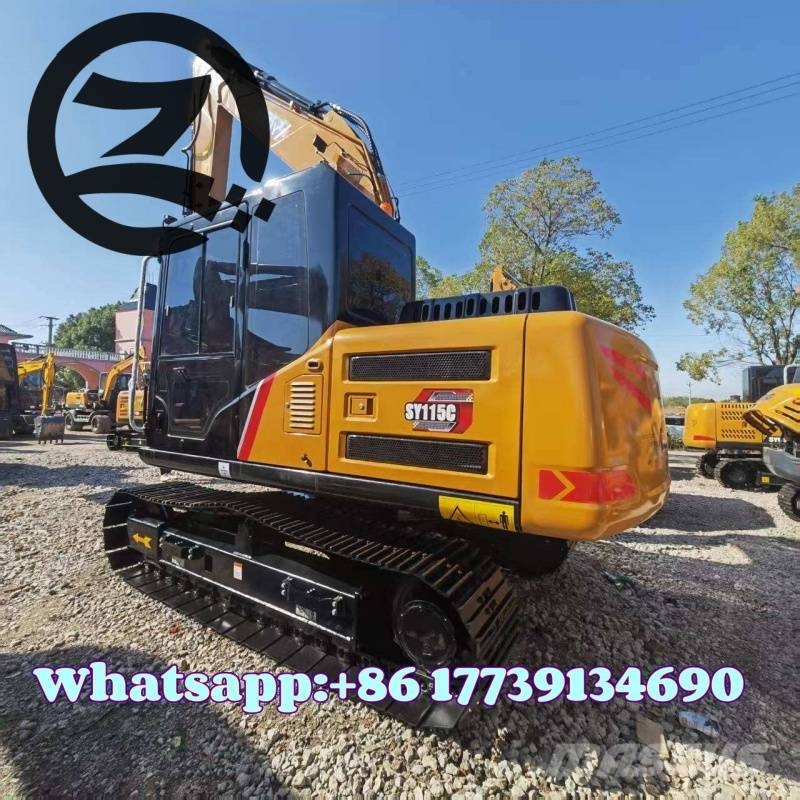

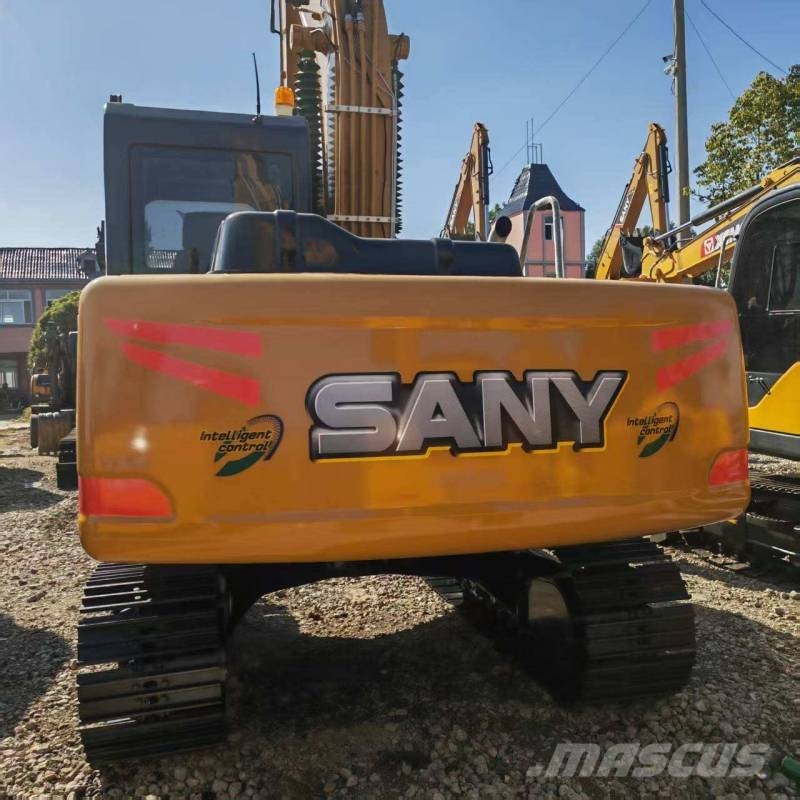

Sany SY 115 C

# SANY SY115C Crawler Excavator Specifications Model: SANY SY115C Operating Weight: 12400 kg Bucket Capacity: 0.50 m³ Transport Dimensions (L×W×H): 7280 × 2550 × 2890 mm Track Shoe Width: 500 mm Travel Speed (High/Low): 5.5 / 3.5 km/h Swing Speed: 13.06 rpm Bucket Digging Force: 90.6 kN Arm Digging Force: 57.2 kN Max Digging Depth: 5190 mm Max Digging Radius: 7735 mm Max Dumping Height: 5480 mm Max Digging Height: 8150 mm Ground Clearance: 425 mm Ground Pressure: 41.6 kPa Gradeability: 35° Fuel Tank Capacity: 240 L ## Engine Engine Model: Isuzu 4JJ1-XDJAG-01-C3 Rated Power: 73 kW / 2000 rpm Cylinders: 4 Displacement: 2.999 L Cooling Type: Water cooled Origin: Japan ## Hydraulic System Pump Type: Variable displacement axial piston pump, load sensing system Max System Pressure: 27.5 MPa
