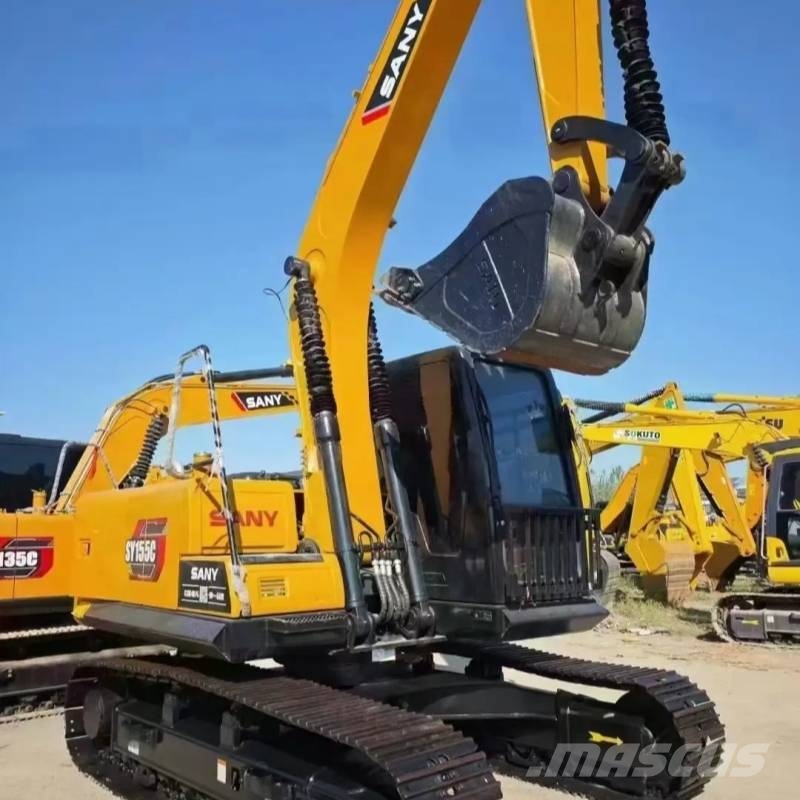

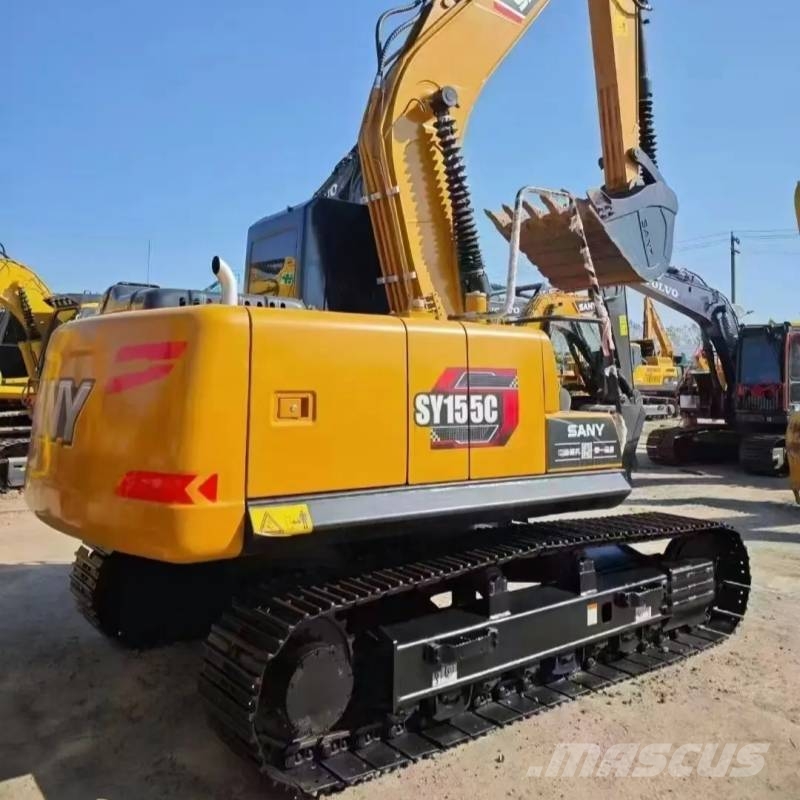

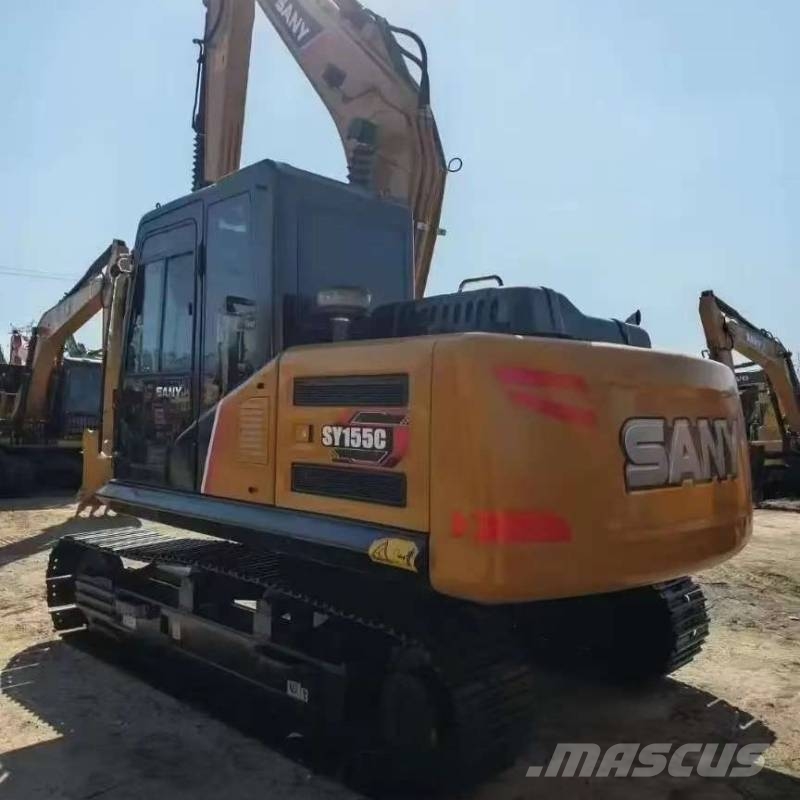

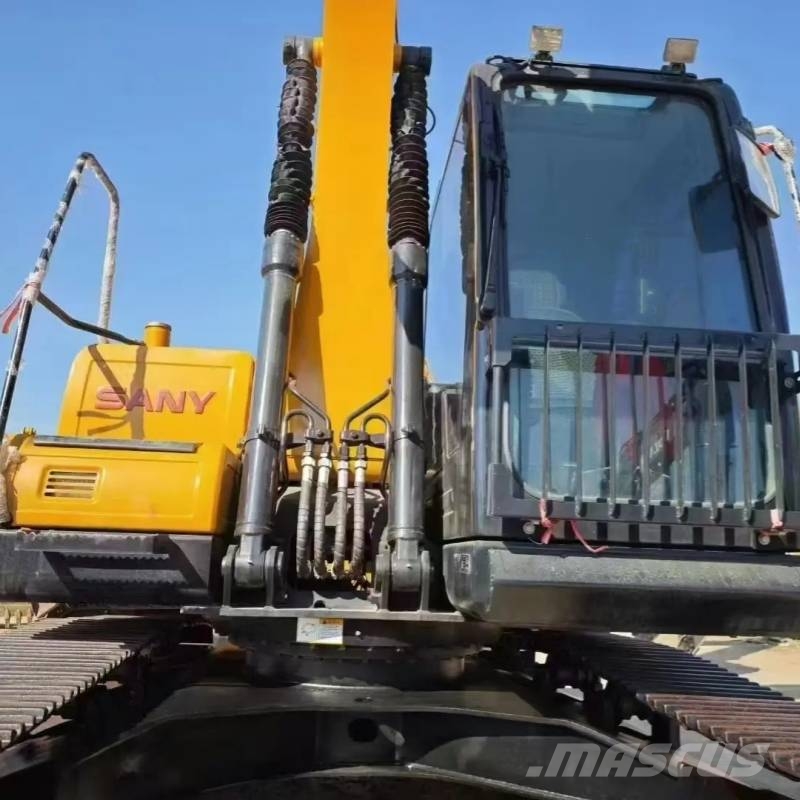

Sany SY 155 C

# SANY SY155C Crawler Excavator Specifications Model: SANY SY155C Operating Weight: 14100 kg Bucket Capacity: 0.65 m³ Transport Dimensions (L×W×H): 7870 × 2570 × 2870 mm Track Shoe Width: 500 mm Travel Speed (High/Low): 5.5 / 3.5 km/h Swing Speed: 12 rpm Bucket Digging Force: 103 kN Arm Digging Force: 67 kN Max Digging Depth: 5500 mm Max Digging Radius: 8330 mm Max Dumping Height: 6115 mm Max Digging Height: 8610 mm Ground Clearance: 430 mm Ground Pressure: 43 kPa Gradeability: 70% (35°) ## Engine Engine Model: ISUZU 4JJ1X Rated Power: 84 kW / 2000 rpm Max Torque: 375 N·m / 1800 rpm Displacement: 2.999 L Engine Type: 4-cylinder, water-cooled, turbocharged, common rail diesel Emission Standard: China Stage IV / Stage V optional ## Hydraulic System Hydraulic System: Positive flow control Fuel Tank Capacity: 240 L Hydraulic Tank Capacity: 150 L
