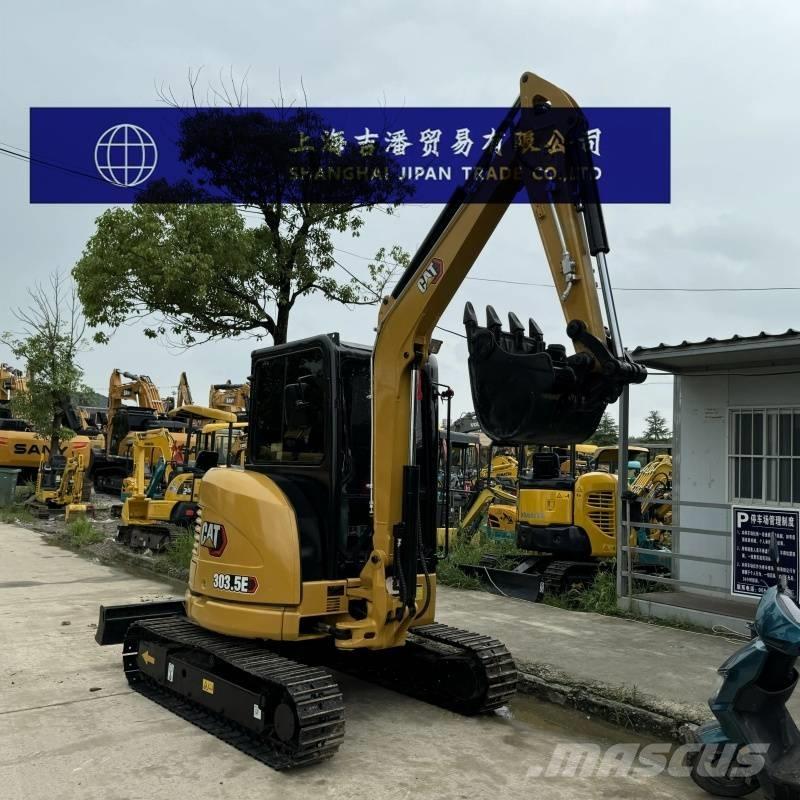

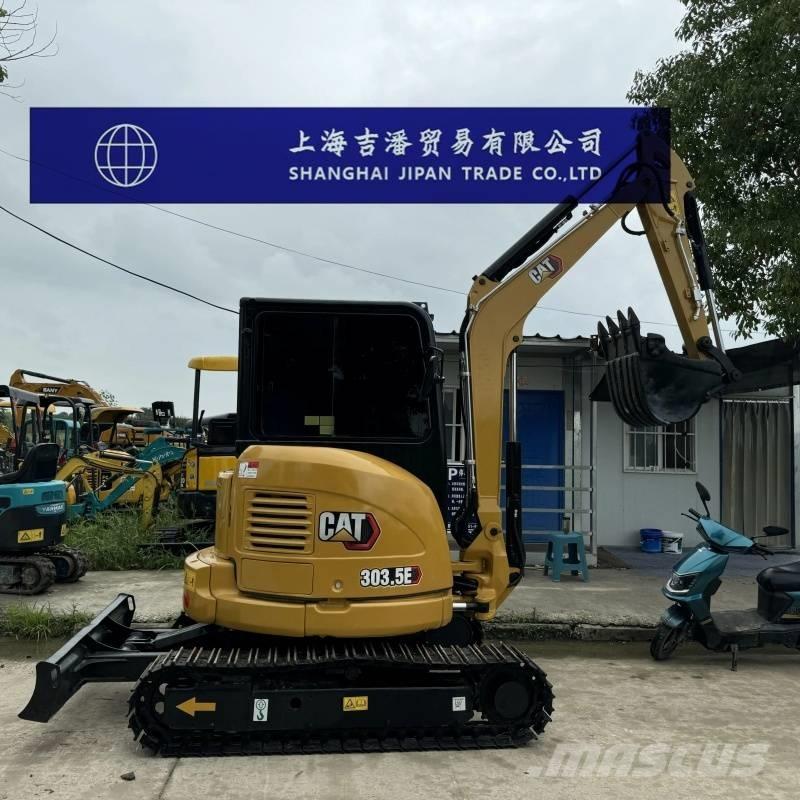

CAT 303.5 E CR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of CAT303.5E CR Small Hydraulic excavator Specification Tonnage (tons)3 The overall working weight of the machine (kg) is 3548 Bucket capacity (m³)0.12 Performance Rotational speed (rpm)9 Walking speed (km/h) : 4.6/2.6 Ground pressure (Kpa) : 32.1 Bucket digging force (kN)33 The digging force of the bucket arm (kN) is 18.9 Maximum traction force (kN)31 Power system Engine model Cat C1.8 Rated power (kw/rpm) : 23.6 Displacement (L)1.8 Cylinder diameter × stroke (mm)87×102.4 The cooling method is water cooling Hydraulic system The maximum flow rate of the main pump (l/min) is 60 The walking hydraulic circuit (Mpa) is 24.5 Rotary hydraulic circuit (Mpa)18.1 Oil capacity Fuel tank (L)46 Hydraulic oil tank (L)42.3 Hydraulic system (L)65 Engine oil change volume (L)7 Coolant (L)5.5 Main body size The total length of transportation (mm) is 4730 The total transportation width (mm) is 1780 The total transportation height (mm) is 2500 The total height of the cab (mm) is 2500 Track plate width (mm) : 300 Scope of work Maximum excavation radius (mm) : 5200 The maximum excavation radius of the shutdown face (mm) is 5060 Maximum excavation depth (mm) : 2880 Maximum excavation height (mm) : 5030 Maximum unloading height (mm) : 3640 The width × height (mm) of the bulldozer board is 1780*325 The bulldozer shovel lifts or deepens (mm)400/470
