CAT CAT305.5E2

Cena brez DDV

Images10

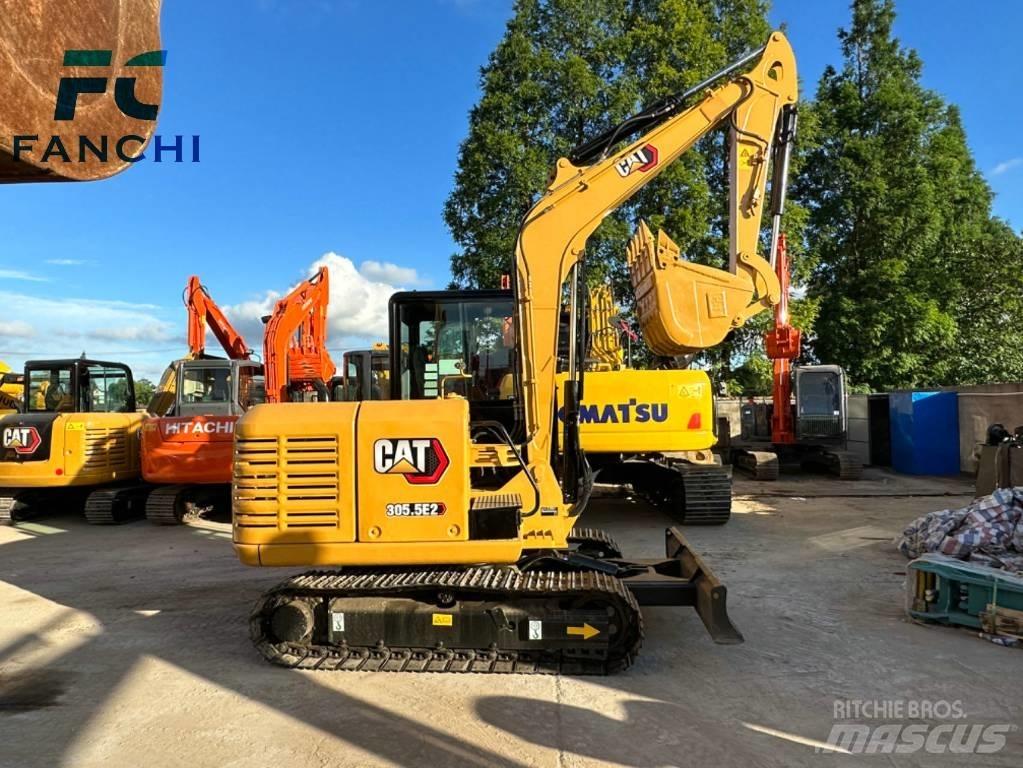

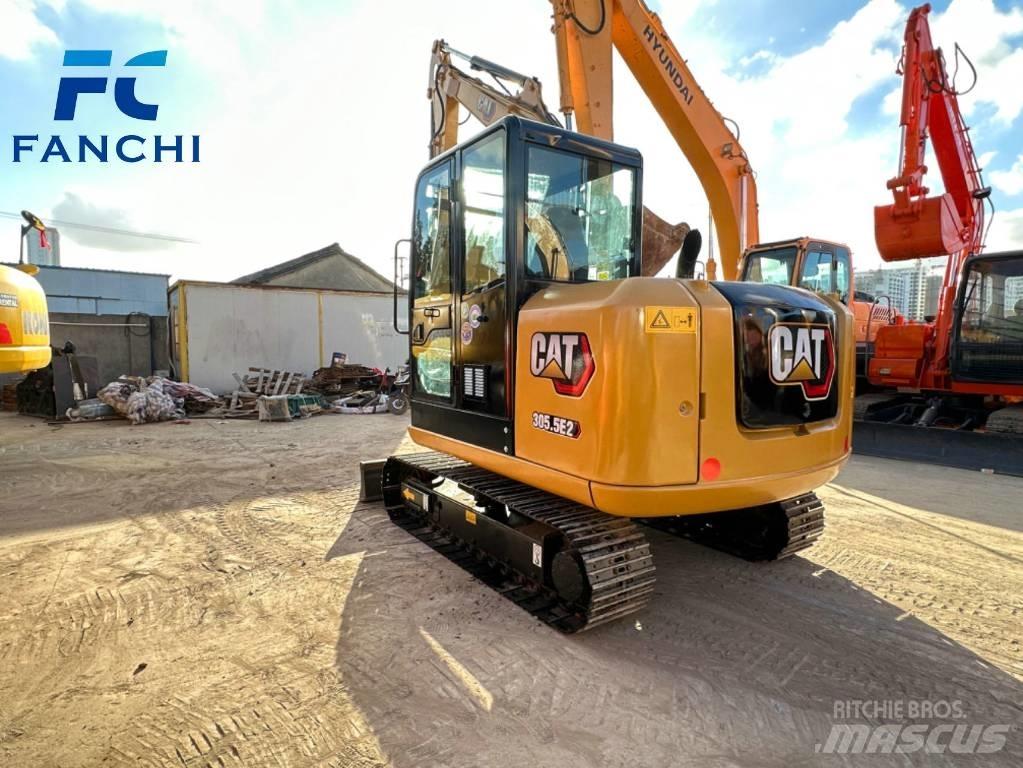

CAT CAT305.5E2 Mini bagri <7t
CAT CAT305.5E2 Mini bagri <7t
CAT CAT305.5E2 Mini bagri <7t
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Mini bagri <7t
Znamka /model
CAT CAT305.5E2
Leto izdelave
2024
Delovne ure
450 h
Dodatne možnosti
Obnovljeno
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
77BC2619

CENA

Izberite valuto

PODROBNOSTI

Tip motorja
Dizel
Popolna evidenca servisov
Da
Število prejšnjih lastnikov
1

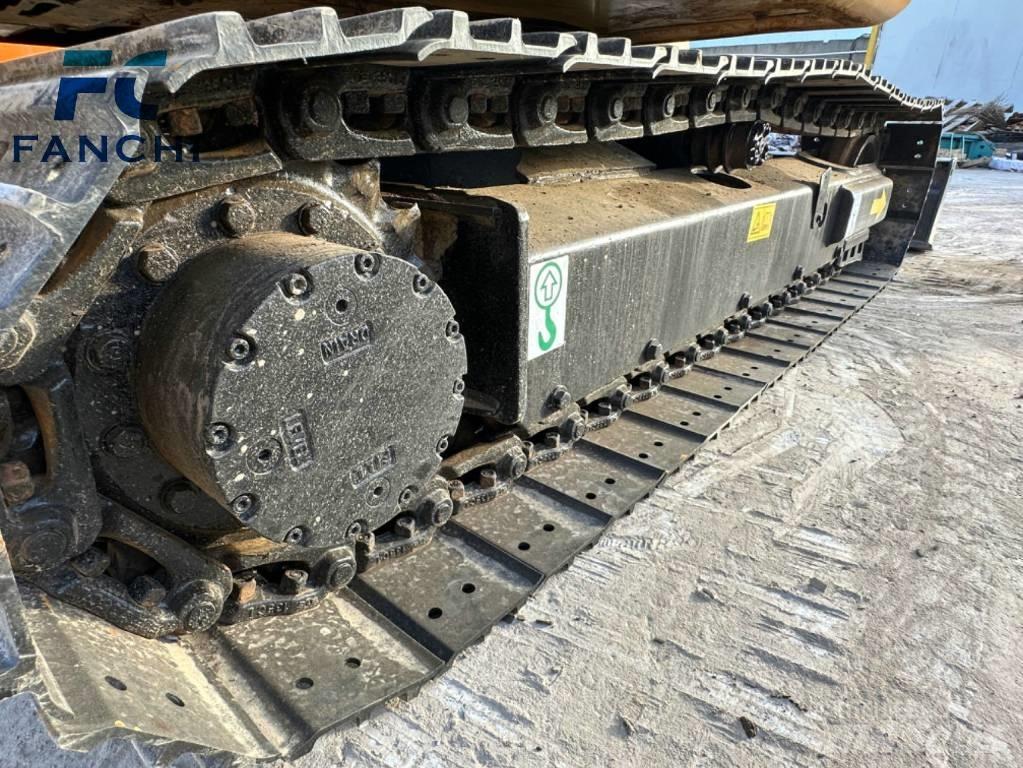

Stanje podvozja
good
Bruto teža
5,500 kg
Emisijski razred
Stage V
Širina gosenic
400 mm
Prostornina žlice
0.22 m3
Transportne dimenzije (DxŠxV)
576519502.54 m
Originalna barva
YELLOW
Dolžina "stick" roke
960 mm
Motor
Cat C2.4 DI
Izhodna moč motorja
34.1 kW (46.4 KM)
Engine manufacturer
JAPAN
Informacije o stanju/garancija
good
Država izdelave
Japonska
Pogoji dostave
FOB, CIF, EXW
Certifikati
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Dodatna oprema
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Dodatna oprema
Škatla za vrvice
Klimatska naprava
Dodatna hidravlika
Ad blue
Naprej
Drugi podatki
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Naprej

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kitajska
