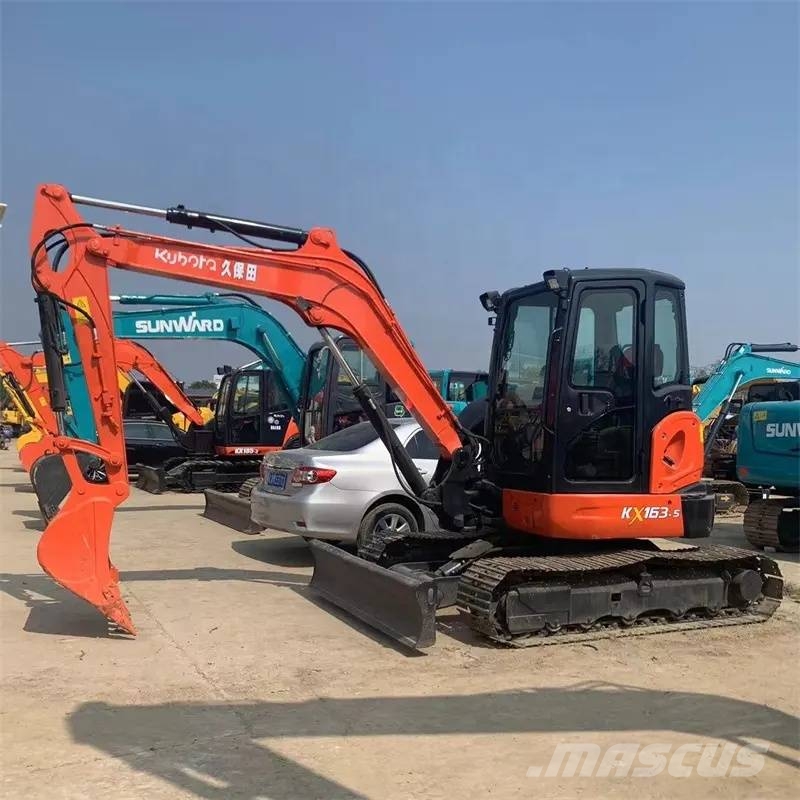

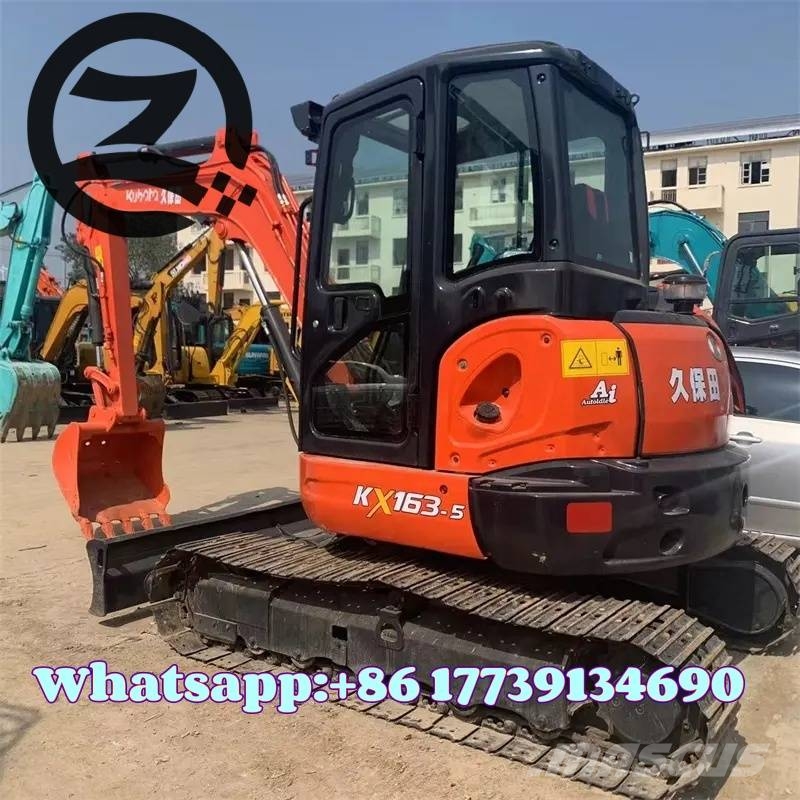

Kubota KX 163-5

# KUBOTA KX163-5 Crawler Excavator Specifications Model: KUBOTA KX163-5 Operating Weight: 5600 kg Bucket Capacity: 0.22 m³ Transport Dimensions (L×W×H): 5500 × 1960 × 2550 mm Track Shoe Width: 450 mm Travel Speed (High/Low): 4.6 / 2.7 km/h Swing Speed: 9.3 rpm Bucket Digging Force: 40.1 kN Arm Digging Force: 32.5 kN Max Digging Depth: 3690 mm Max Digging Radius: 6140 mm Max Dumping Height: 3950 mm Max Digging Height: 5685 mm Ground Clearance: 330 mm Ground Pressure: 33 kPa ## Engine Engine Model: Kubota V2607-E3 Rated Power: 35.5 kW (47.6 HP) / 2200 rpm Displacement: 2615 cc Cylinder: 4-cylinder, water-cooled diesel Emission Standard: Stage IIIA ## Hydraulic System Main Pump Type: Variable pump ×2 + Gear pump ×2 Max System Pressure: 25.0 MPa Swing Motor: Piston motor Travel Motor: 2-speed piston motor
