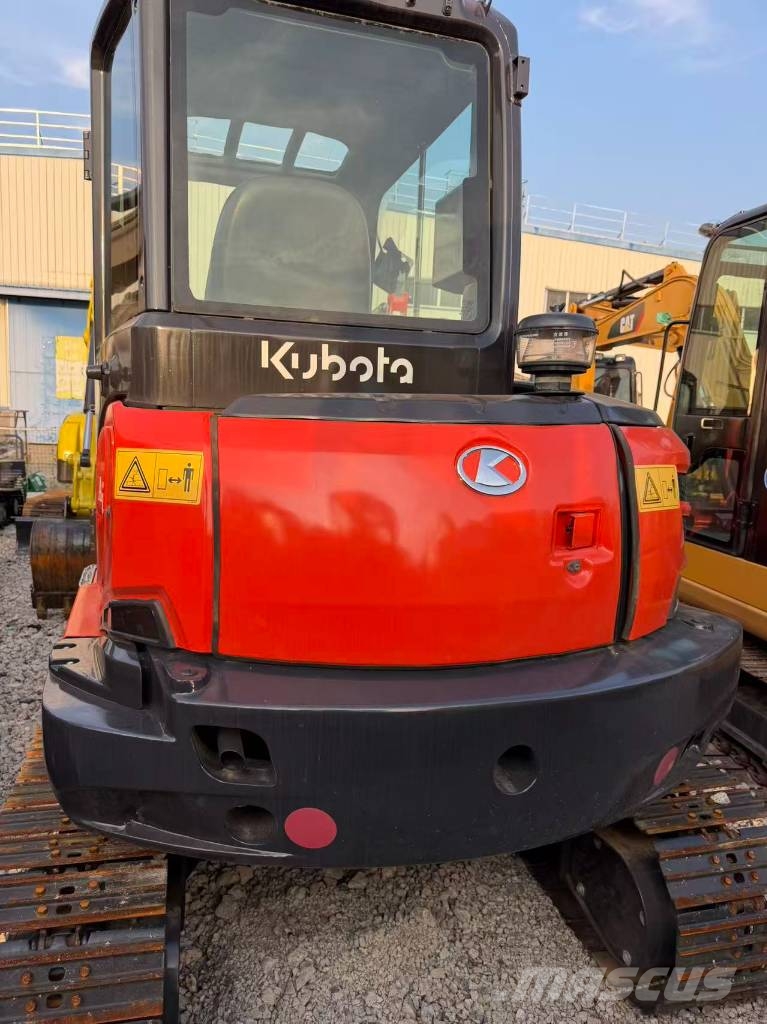

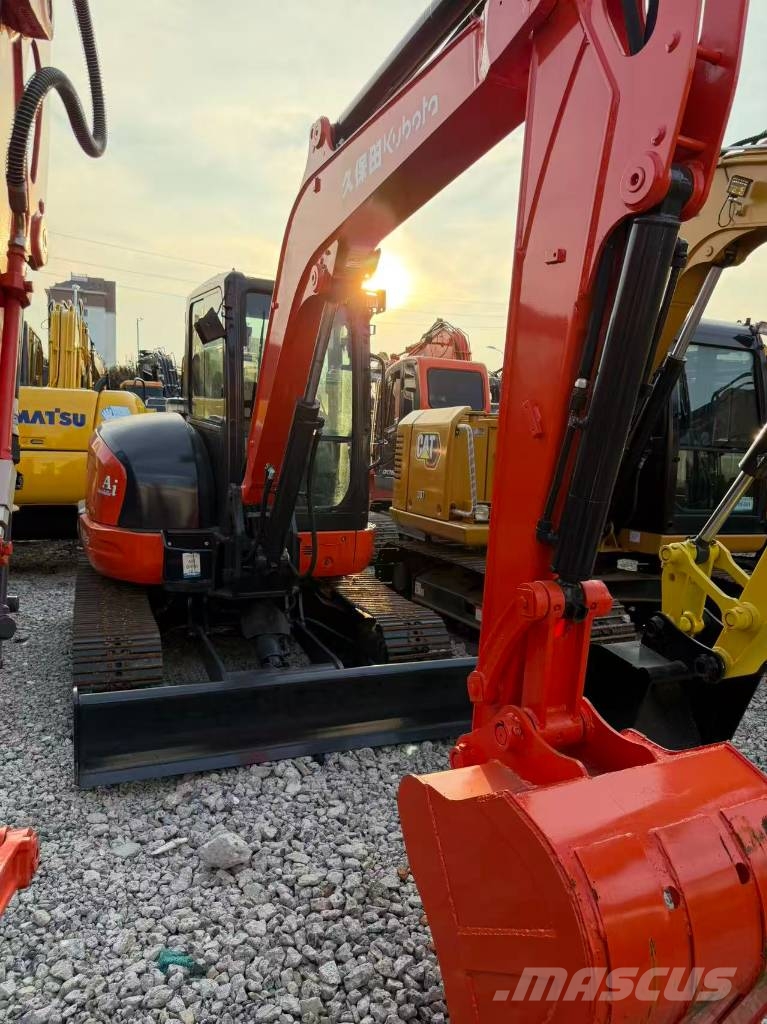

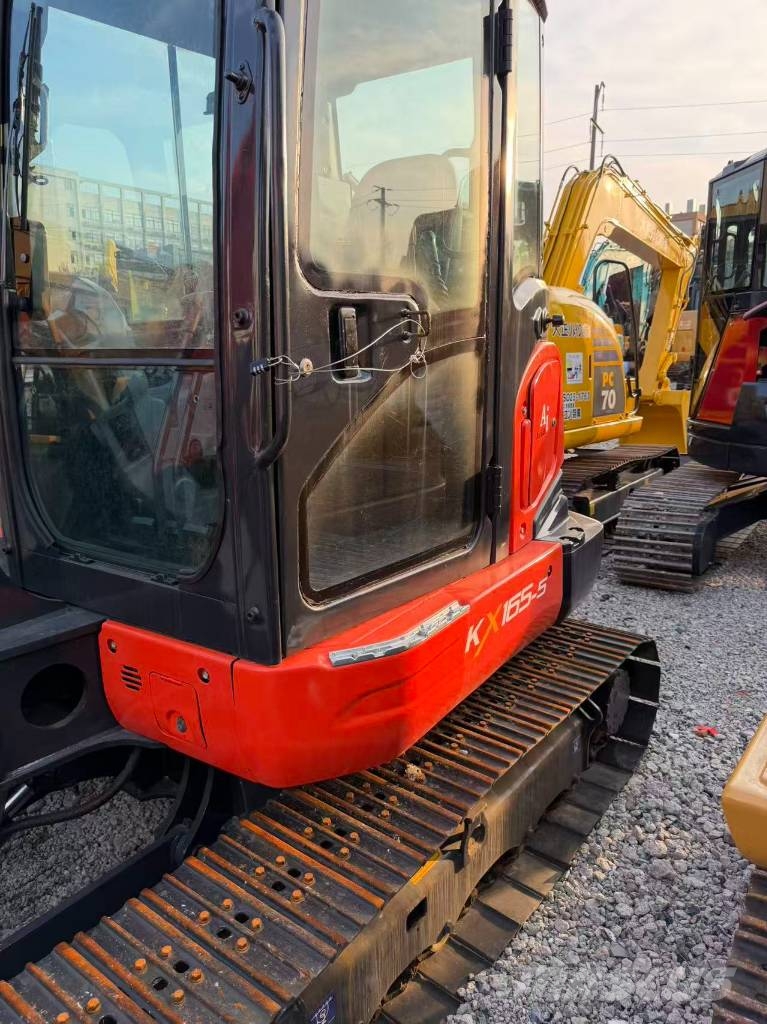

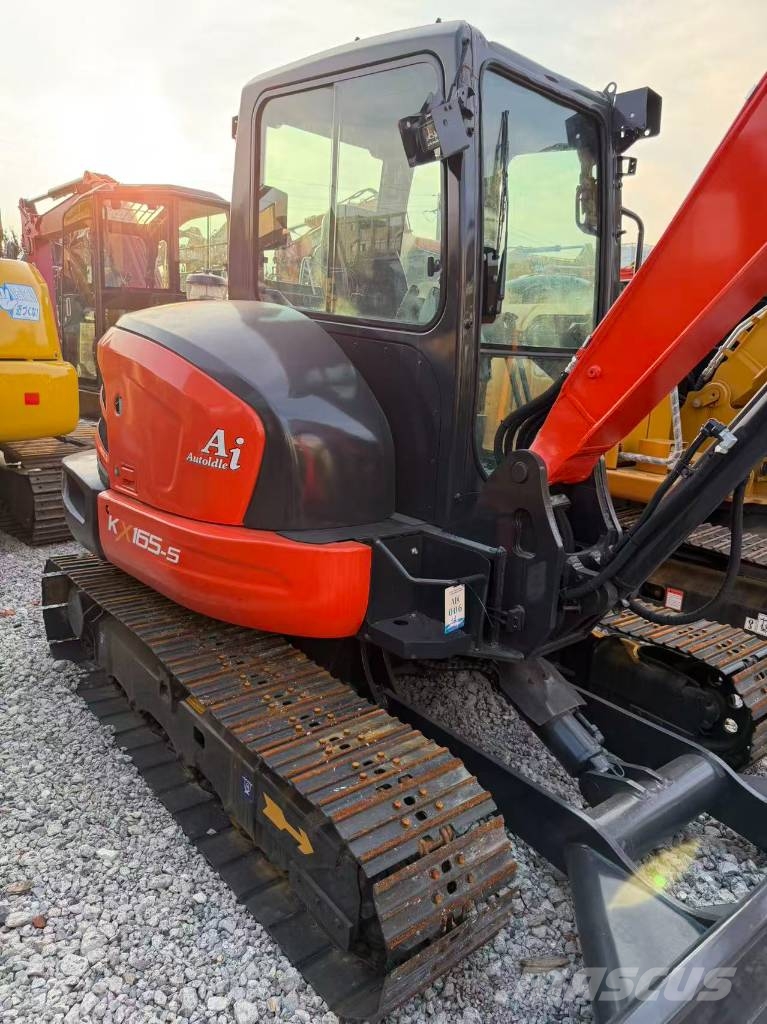

Kubota KX 165

# KUBOTA KX165-5 Crawler Excavator Specifications Model: KUBOTA KX165-5 Operating Weight: 5540 kg Bucket Capacity: 0.24 m³ Transport Dimensions (L×W×H): 5520 × 1960 × 2550 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.6 / 2.7 km/h Swing Speed: 9.3 rpm Bucket Digging Force: 40.1 kN Arm Digging Force: 31.0 kN Max Digging Depth: 3920 mm Max Digging Radius: 6295 mm Max Dumping Height: 4125 mm Max Digging Height: 5860 mm Gradeability: 30° Fuel Tank Capacity: 75 L ## Engine Engine Model: Kubota V2607-DI Rated Power: 48.3 kW / 2200 rpm Cylinders: 4 Displacement: 2.615 L Cooling Type: Water cooled Origin: Japan ## Hydraulic System Pump Type: 2 variable piston pumps + 2 gear pumps Hydraulic System Pressure: 24.5 MPa
