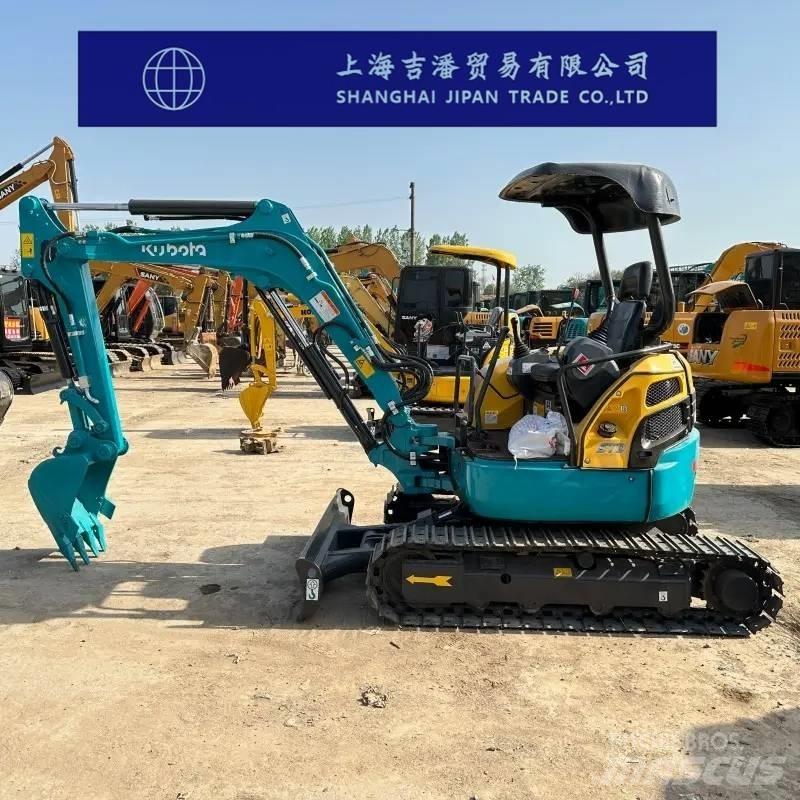

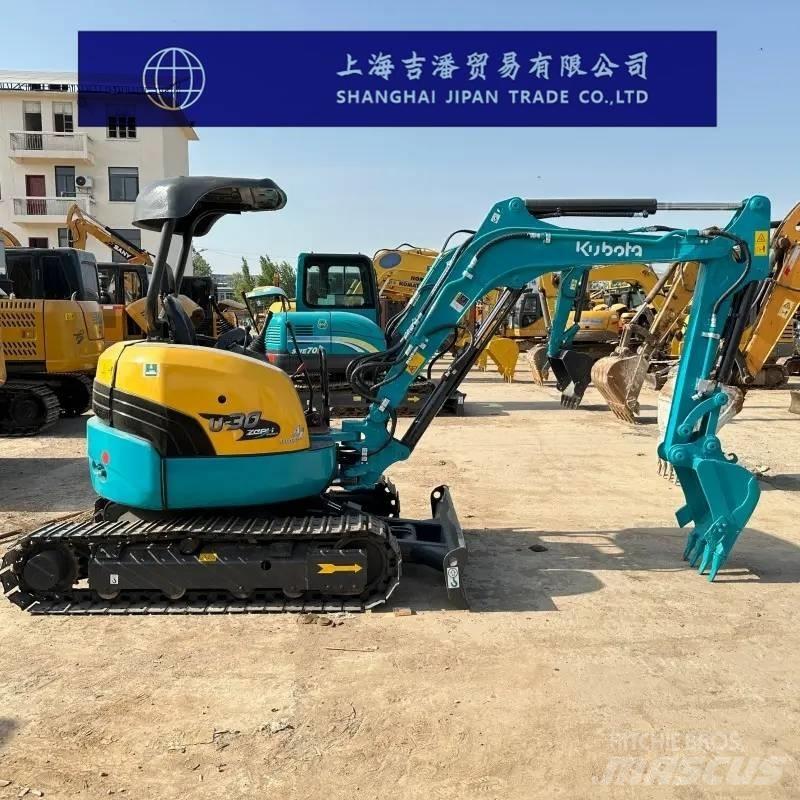

Kubota U 30

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Overall machine parameters The overall working weight of the machine is 3648kg Bucket capacity: 0.08m³ Bucket width: 520/470mm Power type: Traditional power Manufacturer: Joint venture/Imported Bucket: Backhoe Tonnage: 3 tons Engine parameters Engine model: D1703-E4 Rated power: 18.5kW/2200rpm Displacement: 1.647L Performance parameters Rotational speed: 9rpm Walking speed: 3.0/4.6km/h Climbing ability: 30° Bucket digging force: 29.5kN Hydraulic system parameters Main pump type: 2 variable pumps + 2 gear pumps Walking hydraulic motor type: 2-speed plunger hydraulic motor Rotary hydraulic motor type: Plunger hydraulic motor Oil capacity Fuel tank: 45.1L Main body size parameters Total transportation length: 4,573mm Total transportation width: 1550mm Total transportation height: 2482mm Total track length: 2081mm Track plate width: 300mm Minimum ground clearance: 287mm Minimum turning radius of the front working device: 2164mm Rear end turning radius: 900mm Operation scope parameters Maximum excavation radius: 4,951mm Maximum excavation depth: 2825mm Maximum excavation height: 4,558mm Maximum unloading height: 3141mm Maximum vertical excavation depth: 1988mm The width × height of the bulldozer board is 1550×341mm Bulldozer lift or depth push: 366/375mm
