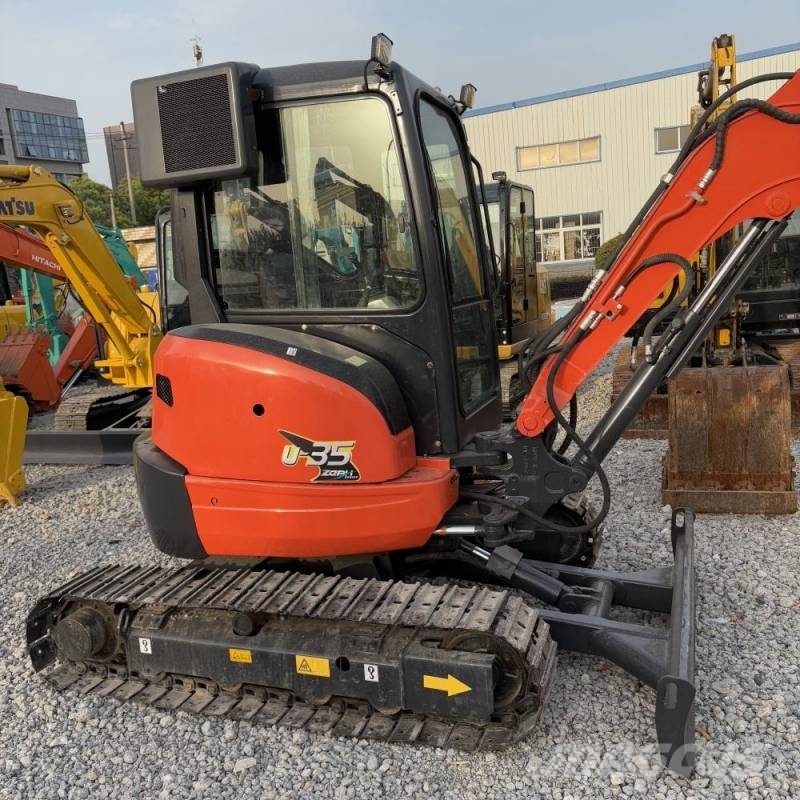

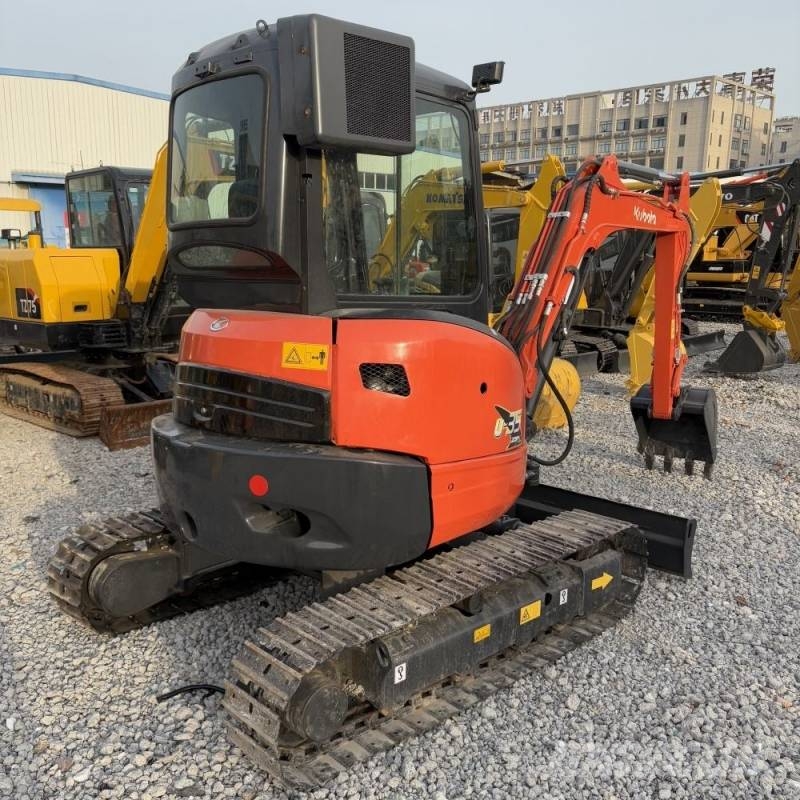

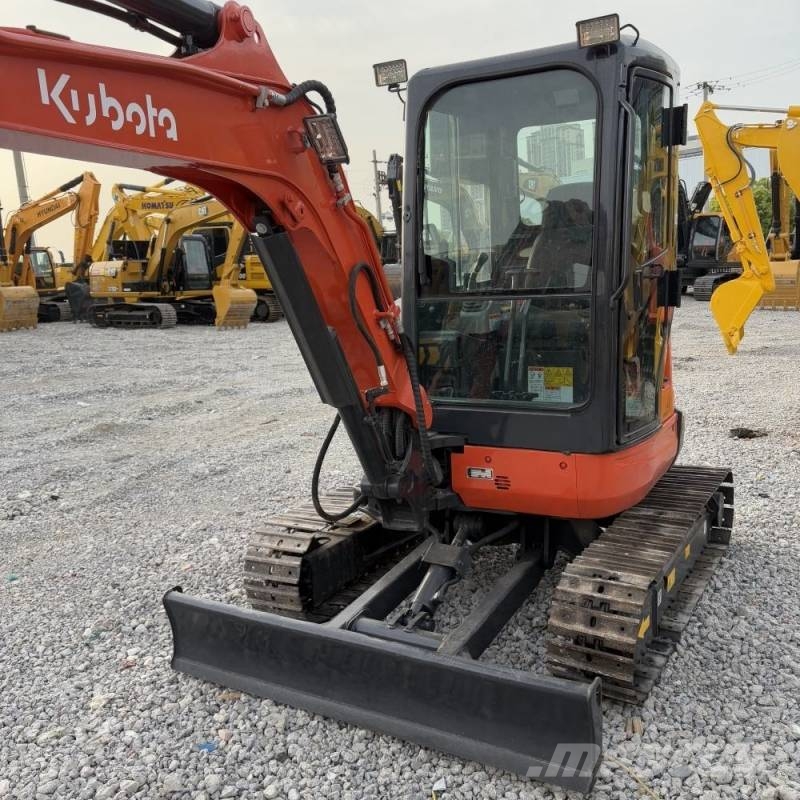

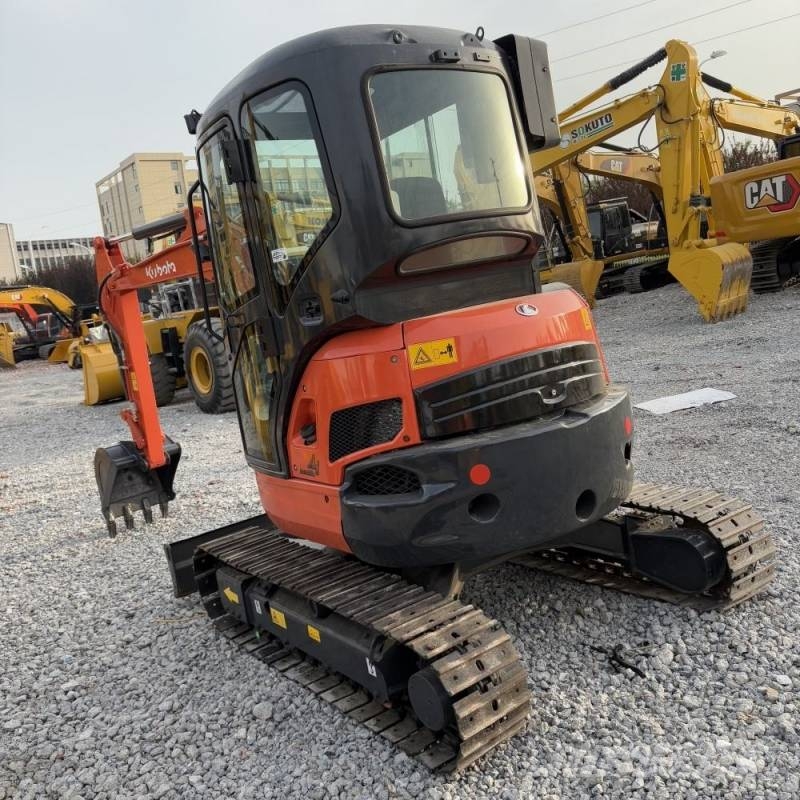

Kubota U 35

# KUBOTA U35-5 Crawler Excavator Specifications Model: KUBOTA U35-5 Operating Weight: 3490 kg Bucket Capacity: 0.12 m³ Transport Dimensions (L×W×H): 4754 × 1700 × 2476 mm Track Shoe Width: 280 mm Travel Speed (High/Low): 4.0 / 2.2 km/h Swing Speed: 9.0 rpm Bucket Digging Force: 28.2 kN Arm Digging Force: 19.8 kN Max Digging Depth: 2989 mm Max Digging Radius: 5275 mm Max Dumping Height: 3404 mm Max Digging Height: 4826 mm Ground Clearance: 287 mm Ground Pressure: 29 kPa ## Engine Engine Model: Kubota D1703-E4 Rated Power: 18.5 kW (25.1 PS) / 2200 rpm Displacement: 1647 cc Cylinder: 3-cylinder, diesel Emission Standard: Stage IIIA ## Hydraulic System Main Pump Type: Gear pump Auxiliary Hydraulic Flow: 42 L/min Swing Motor: Piston motor Travel Motor: Piston motor
