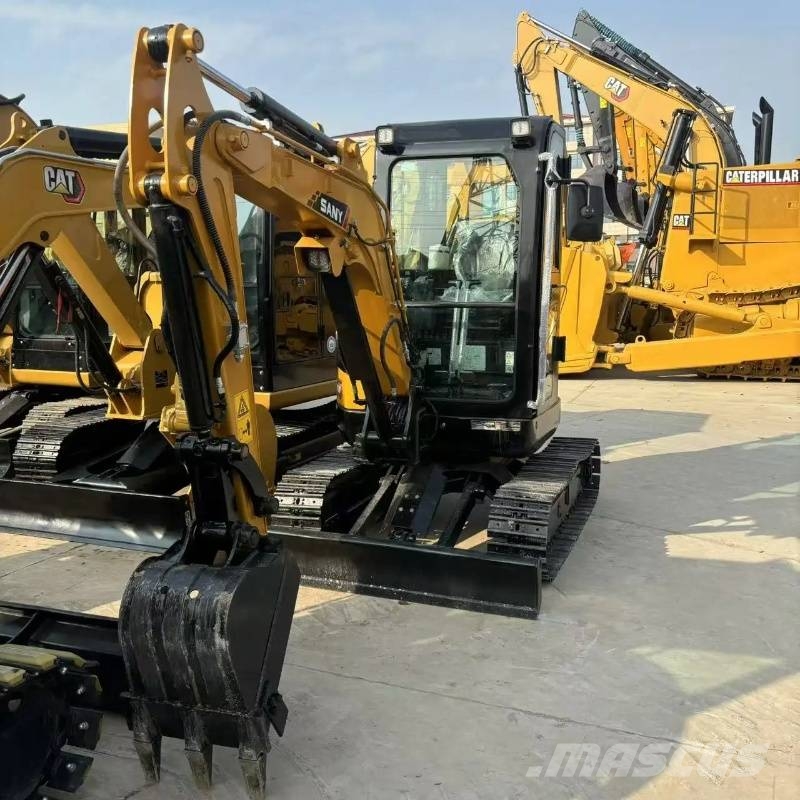

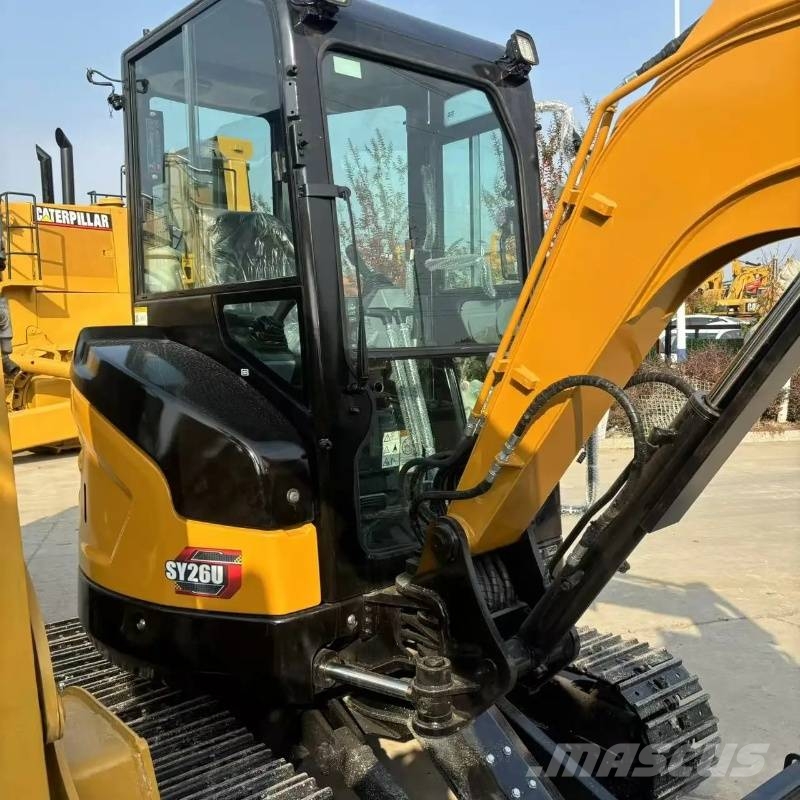

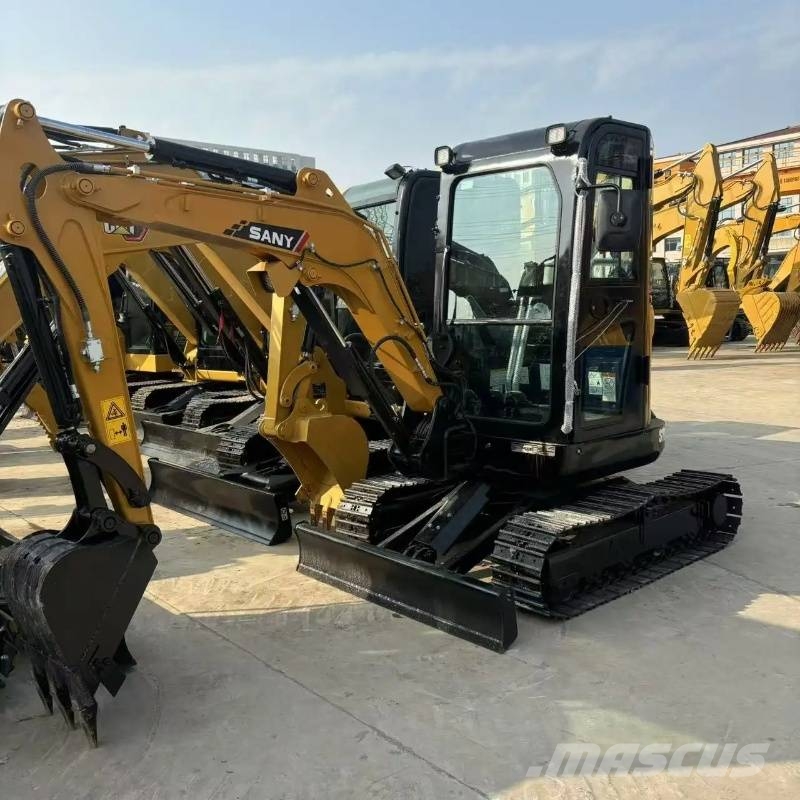

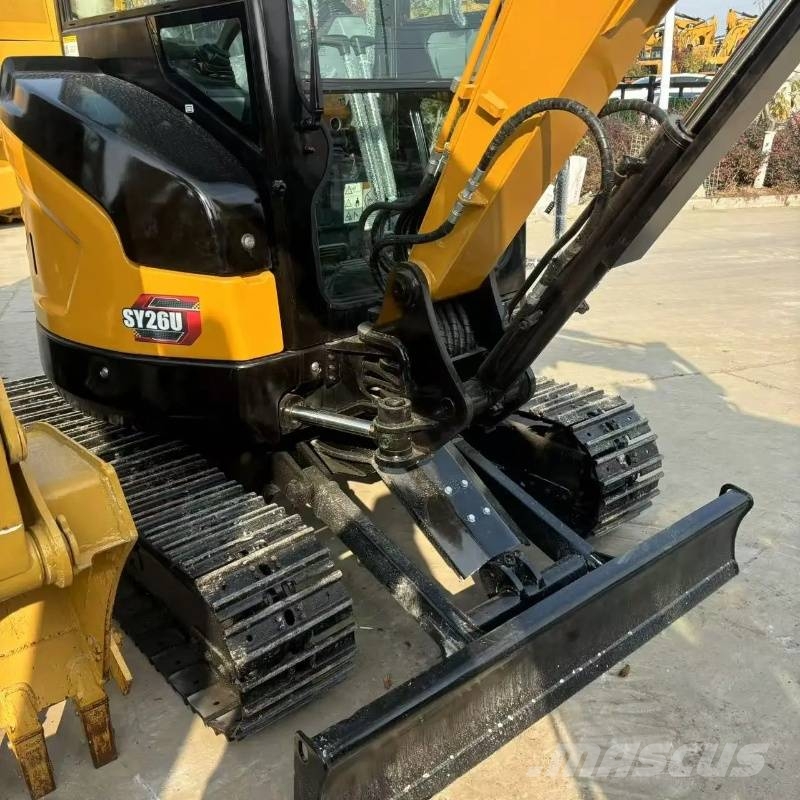

Sany SY 26 U

# SANY SY26U Crawler Excavator Specifications Model: SANY SY26U Operating Weight: 2660 kg Bucket Capacity: 0.07 m³ Transport Dimensions (L×W×H): 4180 × 1500 × 2350 mm Track Shoe Width: 300 mm Travel Speed (High/Low): 4.5 / 2.6 km/h Swing Speed: 10 rpm Bucket Digging Force: 27.9 kN Arm Digging Force: 14.2 kN Max Digging Depth: 2820 mm Max Digging Radius (Ground Level): 4850 mm Max Dumping Height: 3100 mm Ground Contact Pressure: 0.274 bar ## Engine Engine Model: Yanmar 3TNV80F Rated Net Power: 14.6 kW / 2400 rpm Cylinder: 3-cylinder, water-cooled naturally aspirated diesel Displacement: 1.267 L Emission Standard: EU Stage V ## Hydraulic System Main Pump: Variable displacement axial piston pump Max Pump Flow: 78 L/min Relief Pressure: 24.5 MPa Fuel Tank: 34 L Hydraulic Tank: 27 L System Type: Load sensing hydraulic system
