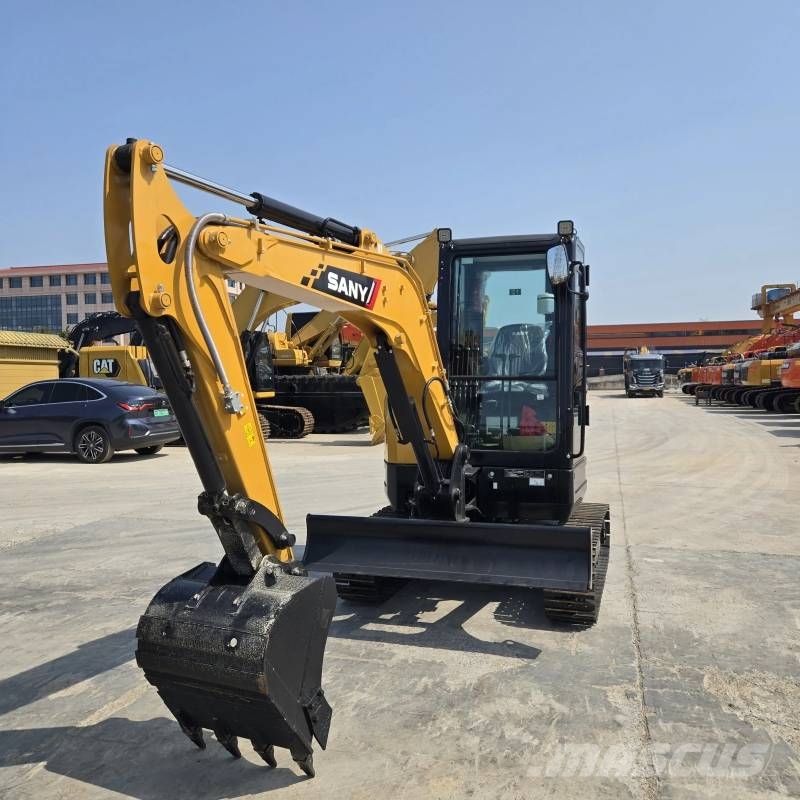

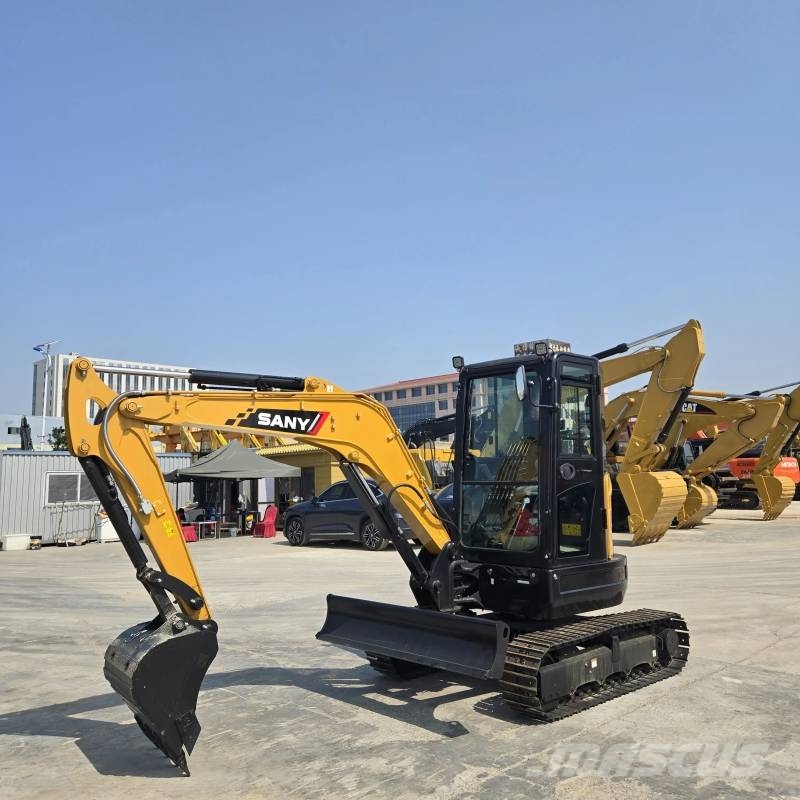

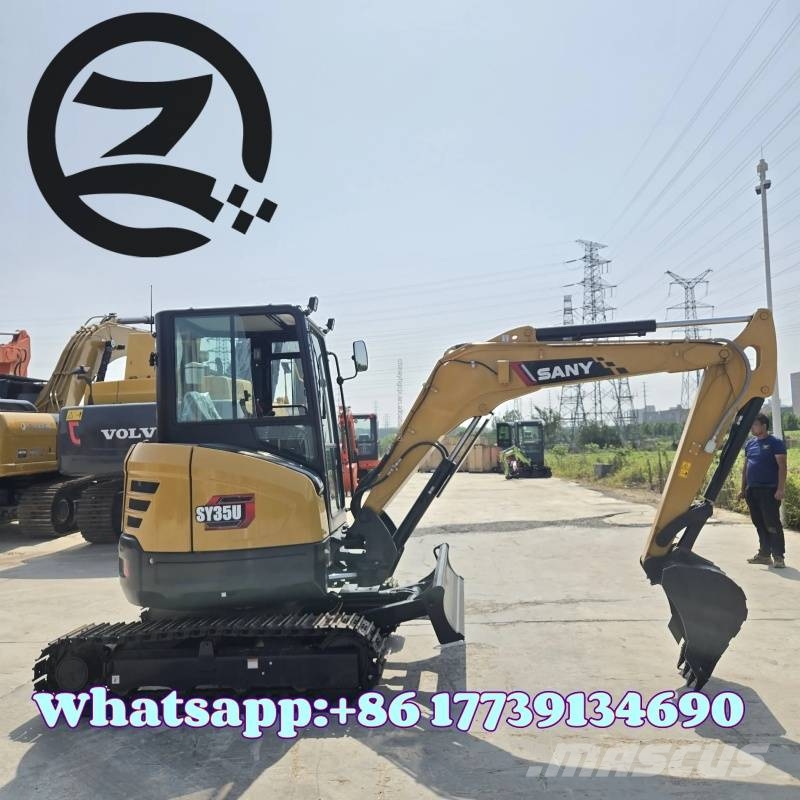

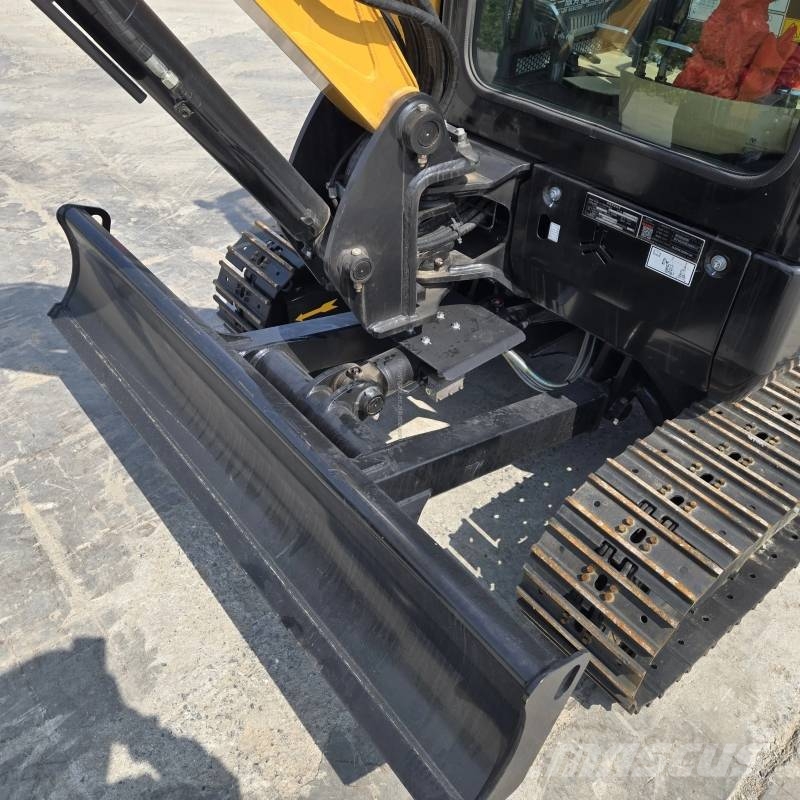

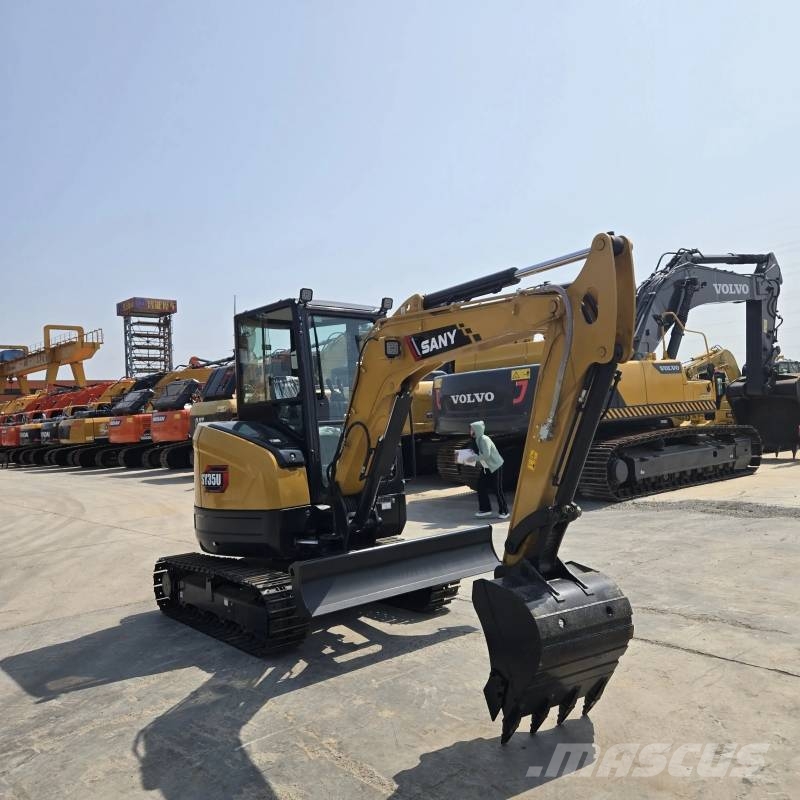

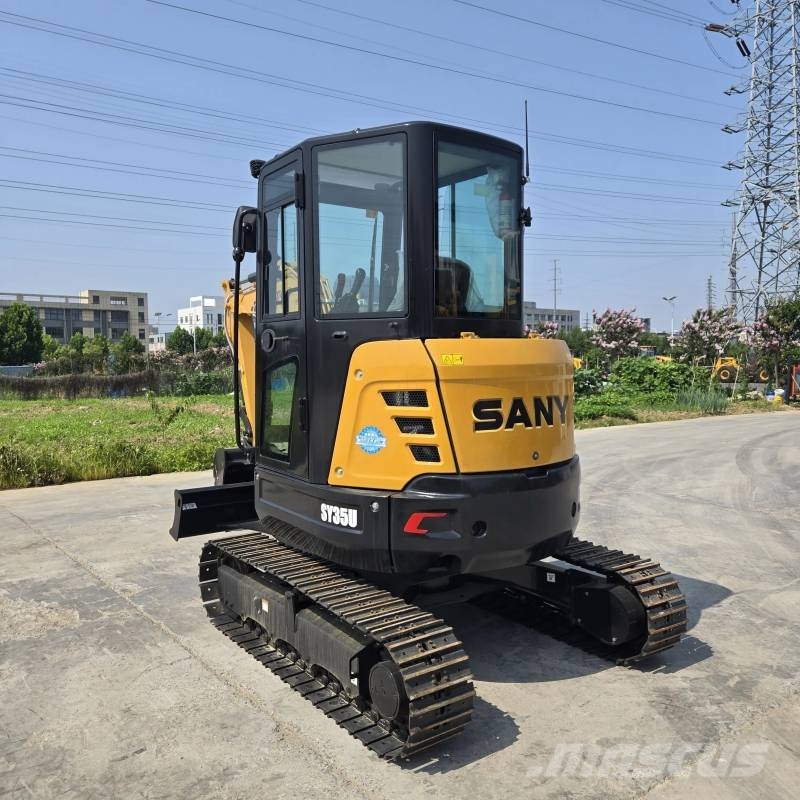

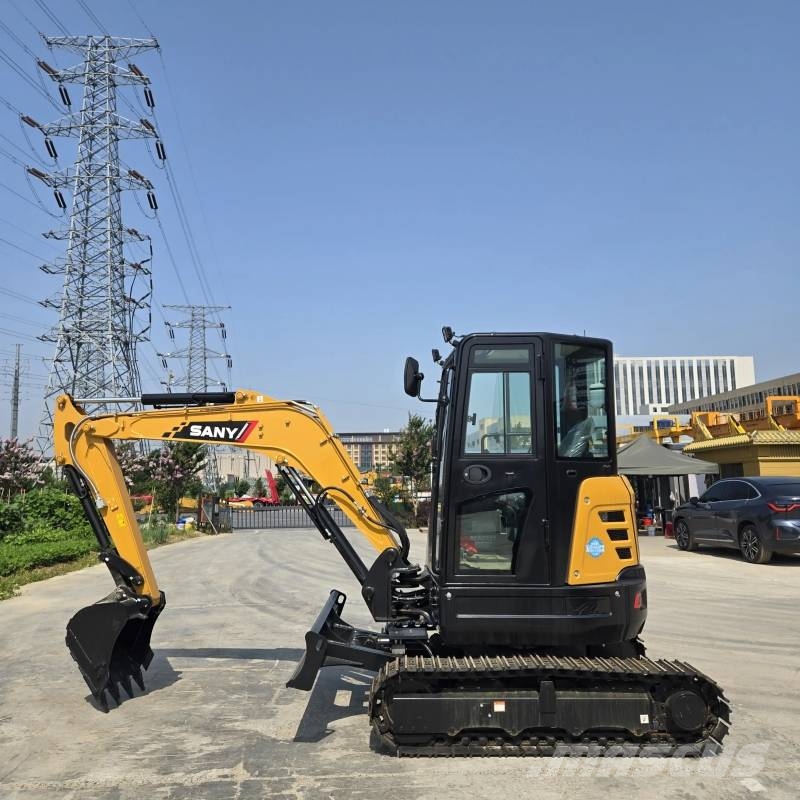

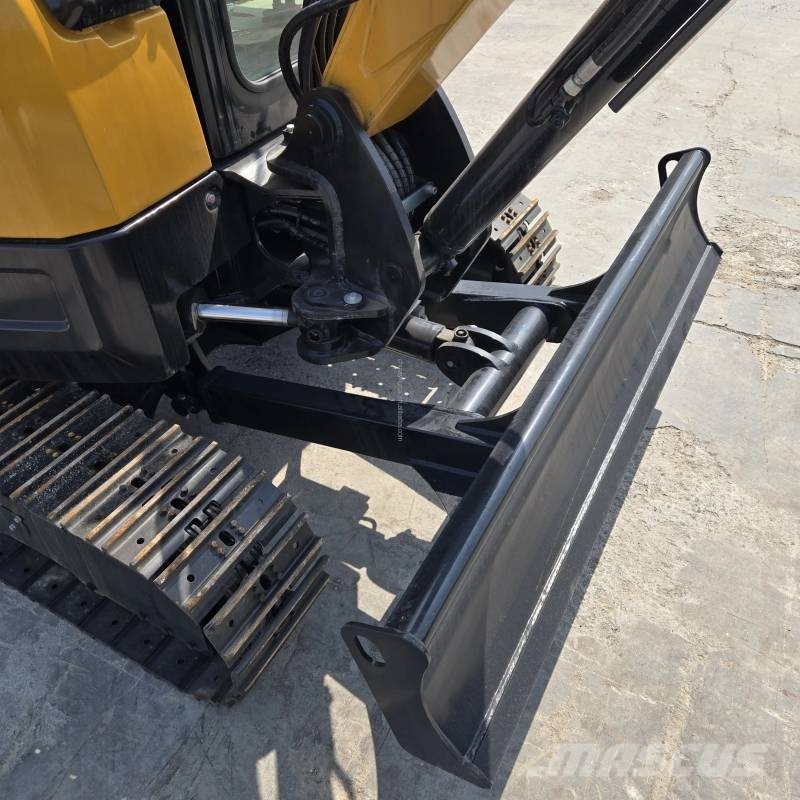

Sany SY 35 U

# SANY SY35U Crawler Excavator Specifications Model: SANY SY35U Operating Weight: 3820 kg Bucket Capacity: 0.12 m³ Transport Dimensions (L×W×H): 4780 × 1700 × 2460 mm Track Shoe Width: 300 mm Travel Speed (High/Low): 4.2 / 2.4 km/h Swing Speed: 9.5 rpm Bucket Digging Force: 30.4 kN Arm Digging Force: 18.2 kN Max Digging Depth: 3105 mm Max Digging Radius: 5465 mm Max Dumping Height: 3460 mm Min Swing Radius: 2475 mm ## Engine Engine Model: Yanmar 3TNV88F Rated Net Power: 18.2 kW / 2200 rpm Max Torque: 94.2 N·m /1320 rpm Displacement: 1.642 L Fuel Tank Capacity: 50 L ## Hydraulic System Main Pump Max Flow: 88 L/min Max Working Pressure: 24.5 MPa
