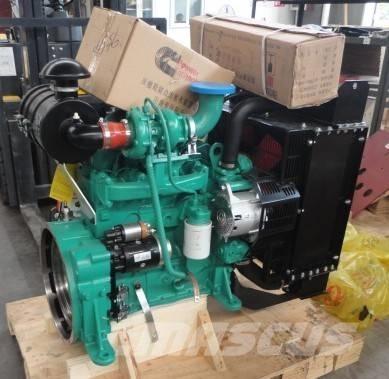

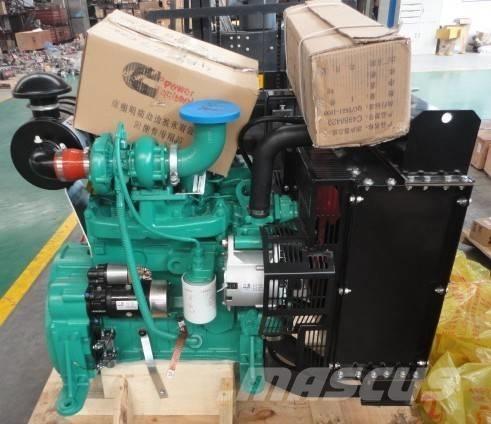

Cummins 4B3.9-G1

Cummins 4B3.9-G1 Generator Engine General Information Engine Model 4B3.9-G1 Engine Type 4 Cylinders, in Line Displacement 3.9 L Bore*Stroke(mm) 102 * 120 CPL Number PP 3114 Net Weight (with flywleel & alternator) 308 KG Overall Diemension(L*W*H) 867mm*544mm*988mm Technical Specification Fuel System BYC A Pump/RSV Mechanical Governor Aspiration Naturally Aspirated Governing Rate ≤5% Electrical System(Starter Motor/Alternator) 12V/24V Lowest Starting Temp without auxiliary system -12℃ Engine Cooling Fluid Volume 7.2 L Performance Data Rated Power/Speed 24kW/32HP @ 1500rpm Torque @ Rated Power 153 N.m @ 1500 rpm Standby Power/Speed 27 kW/36HP @ 1500rpm Torque @ Standby Power 172 N.m @ 1500 rpm Fuel Consumption @ Rated Power 229g/kW.h Fuel Consumption @ Standby Power 228g/kW.h Idel Speed 950 – 1050 rpm
