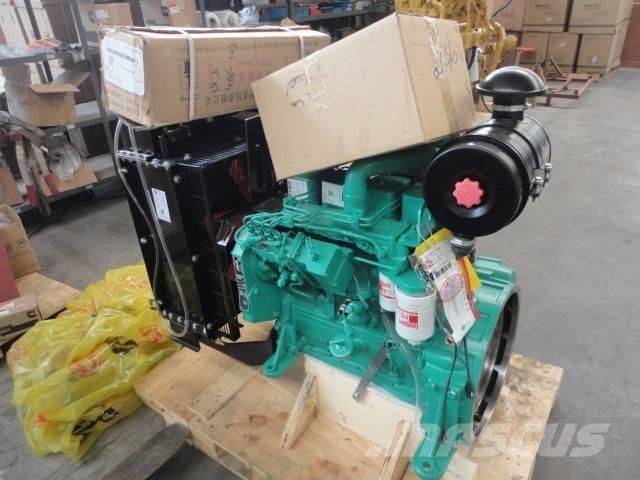

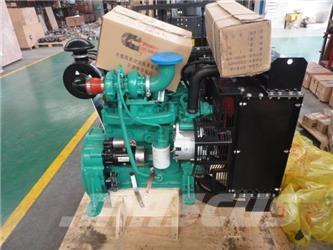

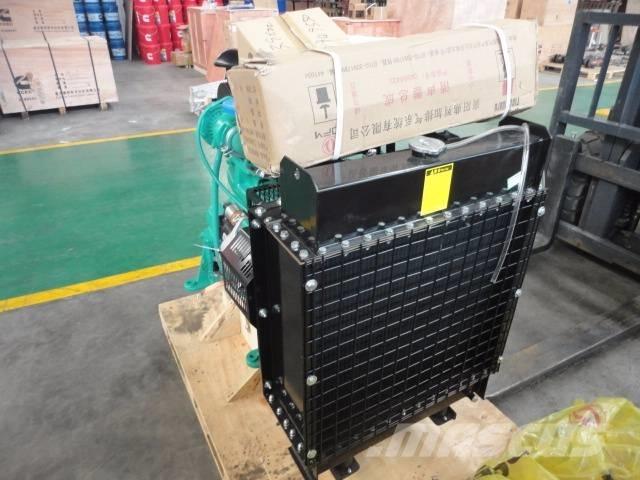

Cummins 4BTA3.9-G2
Cena brez DDV
5
Priljubljena
Delež
Shrani iskanjeNatisni
INFORMACIJE
Kategorija stroja / vozila
Motorji
Znamka /model
Cummins 4BTA3.9-G2
Leto izdelave
2018
Dodatne možnosti
Novo/nerabljeno
Kraj stroja
Jining, Shandong, China
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
CD30B159
CENA
Izberite valuto
PODROBNOSTI
Inventarna št.
4BTA3.9-G2
Zadnji pregled
yes
Izhodna moč motorja
67 kW (91.1 KM)
ID dela
4BTA3.9-G2
Popolna evidenca servisov
Da
Serijska številka proizvoda
4BTA3.9-G2
Transportna teža
350 kg
Transportne dimenzije (DxŠxV)
1100000 x 900000 x 1400000 mm
RPM
1500
Emisijski razred
Stage II
Informacije o stanju/garancija
ISO9001
Država izdelave
Kitajska
Pogoji dostave
FOB, CFR, CIF, EXW
Drugi podatki
Cummins 4BTA3.9-G2 G-Drive Diesel Engine
General Information
Engine Model 4BTA3.9-G2
Engine Type 4 Cylinders in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
CPL Number PP L006
Net Weight (with flywleel & alternator) 350 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Fuel System BYC A Pump/GAC Electronic Governor
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 7.9 L
Performance Data
Rated Power/Speed 67kW/90HP @ 1500 rpm
Torque @ Rated Power 318 N.m @ 1500 rpm
Standby Power/Speed 74kW/74 HP @ 1500 rpm
Torque @ Standby Power 350 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 213g/Kw.h
Fuel Consumption @ Standby Power 212g/Kw.h
Idel Speed 950 – 1050 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kitajska
