Cummins 6CTA8.3-G2
Cena brez DDV
3
Priljubljena
Delež
Shrani iskanjeNatisni
INFORMACIJE
Kategorija stroja / vozila
Motorji
Znamka /model
Cummins 6CTA8.3-G2
Leto izdelave
2018
Dodatne možnosti
Novo/nerabljeno
Kraj stroja
Jining, Shandong, China
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
645A30C1
CENA
Izberite valuto
PODROBNOSTI
Inventarna št.
6CTA8.3-G2
Zadnji pregled
yes
Izhodna moč motorja
163 kW (222 KM)
ID dela
6CTA8.3-G2
Popolna evidenca servisov
Da
Serijska številka proizvoda
6CTA8.3-G2
Transportna teža
780 kg
Transportne dimenzije (DxŠxV)
1550 x 900 x 1400 mm
RPM
1500
Emisijski razred
Stage II
Informacije o stanju/garancija
ISO9001
Država izdelave
Kitajska
Pogoji dostave
FCA, CPT, FOB, CFR, CIF, EXW
Drugi podatki

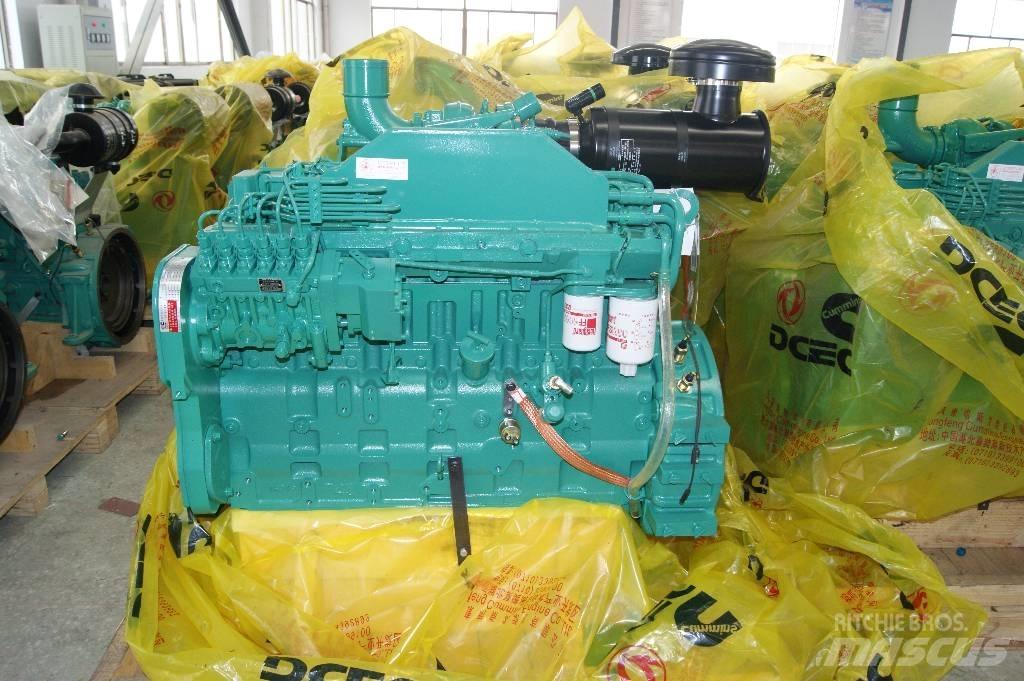

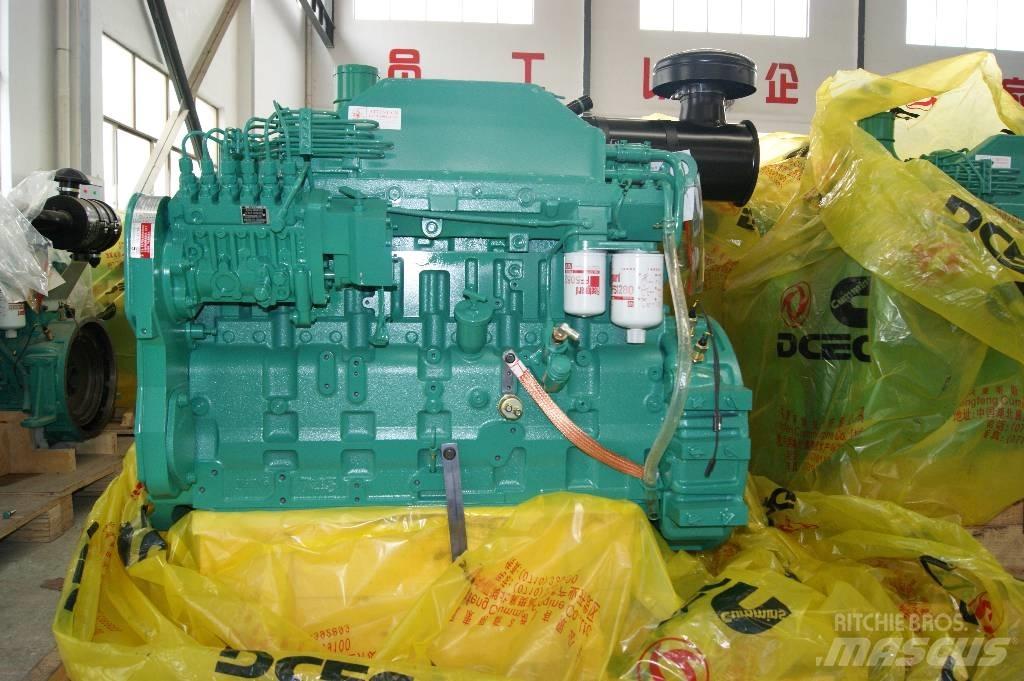

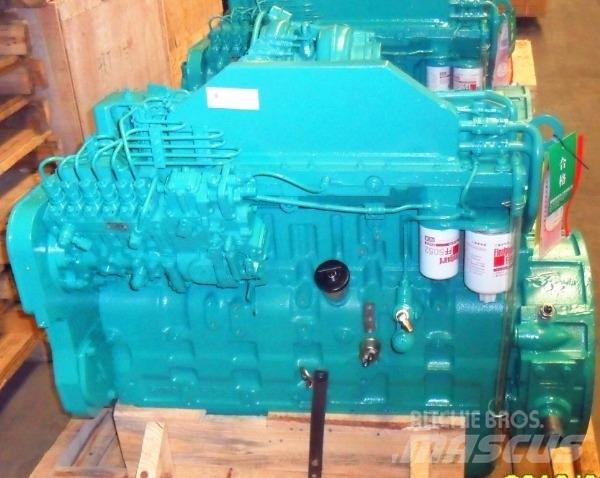

Cummins 6CTA8.3-G2 G-Drive Diesel Engine
General Information
Engine Model 6CTA8.3-G2
Engine Type 6Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
CPL Number 8414
Net Weight (with flywleel & alternator) 702 Kg
Overall Diemension(L*W*H) 1360mm*780mm*988mm
Technical Specification
Fuel System BYC PB Pump/GAC Electronic Governor
Aspiration Turbocharged & Intercooled
Governing Rate 1％ － 5％
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 12.3 L
Performance Data
Rated Power/Speed 163 kW/219HP @ 2000rpm
Torque @ Rated Power 1040 N.m @ 1500 rpm
Standby Power/Speed 180 kW/241HP @ 2000rpm
Torque @ Standby Power 1145 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 210g/Kw.h
Fuel Consumption @ Standby Power 212g/Kw.h
Idel Speed 750 – 950 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kitajska
