Cummins C230-20
Cena brez DDV
7
Priljubljena
Delež
Shrani iskanjeNatisni
INFORMACIJE
Kategorija stroja / vozila
Motorji
Znamka /model
Cummins C230-20
Leto izdelave
2018
Dodatne možnosti
Novo/nerabljeno
Kraj stroja
Jining, Shandong, China
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
8547BFED
CENA
Izberite valuto
PODROBNOSTI
Inventarna št.
C230-20
Zadnji pregled
yes
Izhodna moč motorja
170 kW (231 KM)
ID dela
C230-20
Popolna evidenca servisov
Da
Serijska številka proizvoda
C230-20
Transportna teža
700 kg
Transportne dimenzije (DxŠxV)
1200 x 1000 x 1300 mm
RPM
2200
Emisijski razred
Stage II
Informacije o stanju/garancija
ISO9001
Država izdelave
Kitajska
Pogoji dostave
FCA, CPT, FOB, CFR, CIF, EXW
Drugi podatki

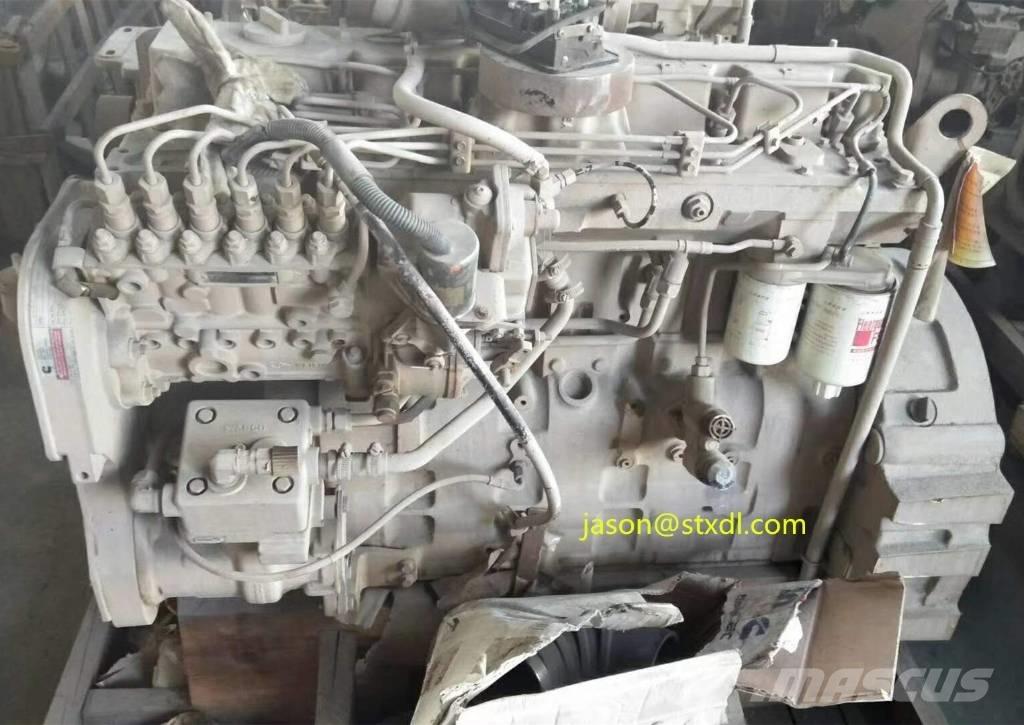

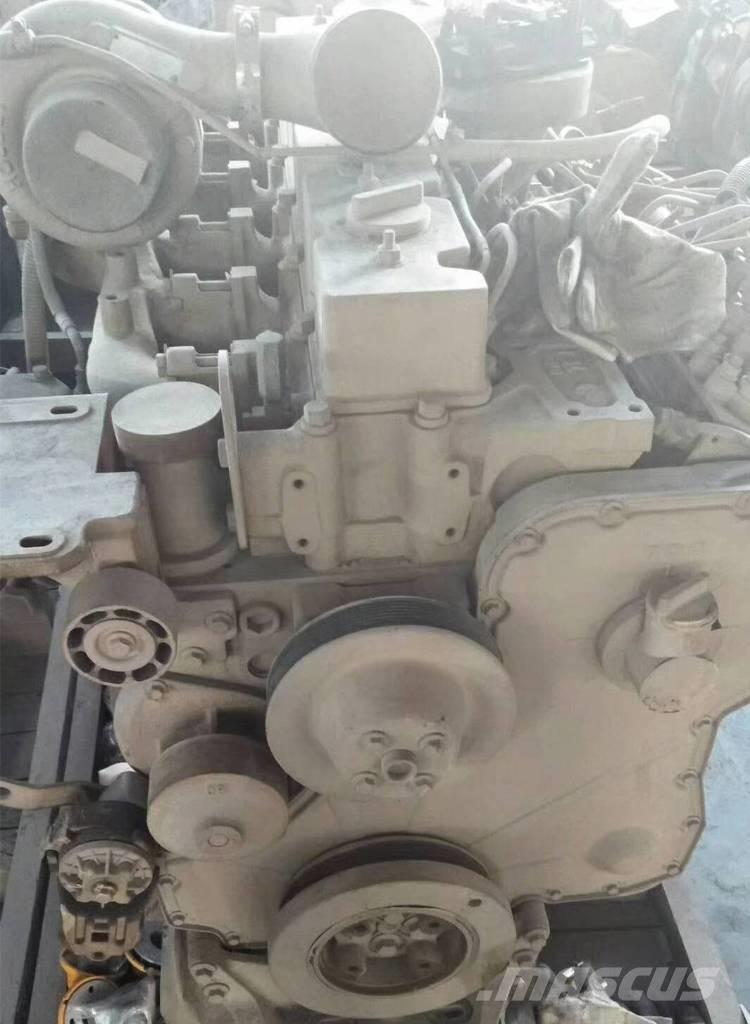

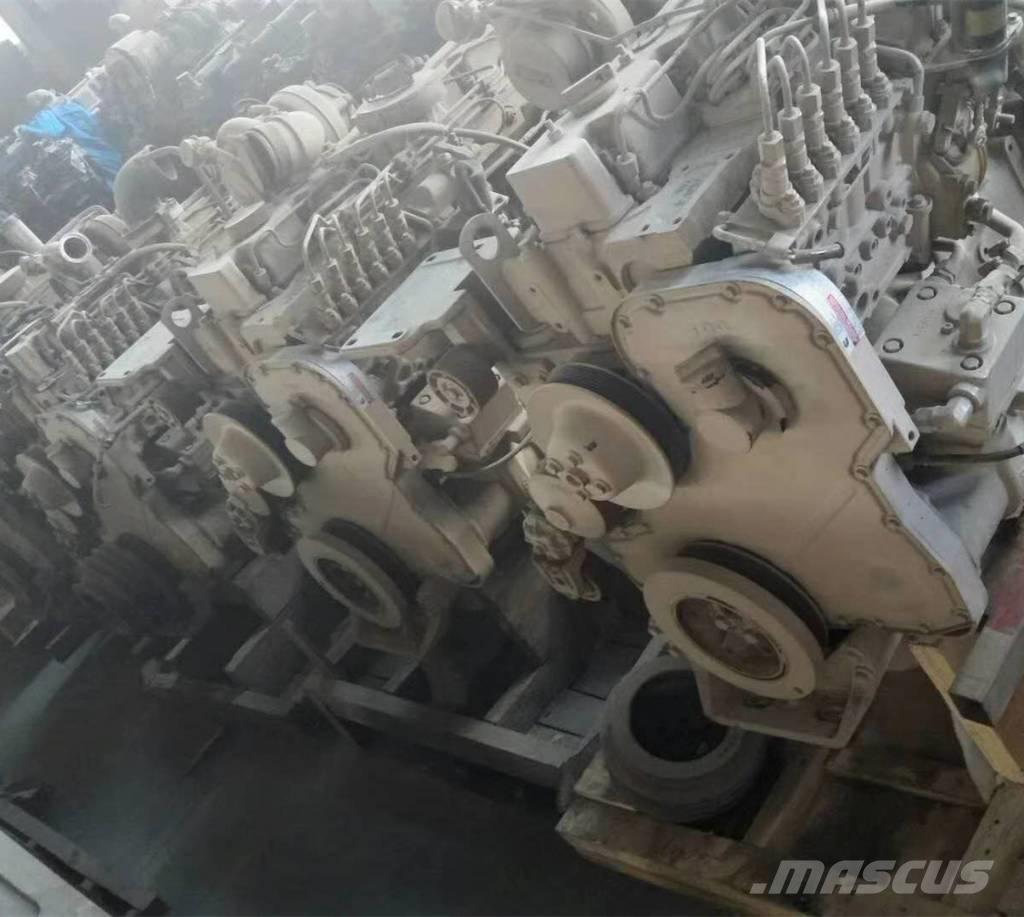

Cummins C230-20 Diesel Engine for Vehicle
General Information of Cummins C230-20Diesel Engine for Vehicle
Engine Model C230-20
Engine Type 6 Cylinders, in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
Compression Ratio 18 : 1
CPL Number 0311
Net Weight (with flywleel & alternator) 636 Kg
Overall Diemension(L*W*H) 1129mm*719mm*1082mm
Technical Specification of Cummins C230-20Diesel Engine for Vehicle
Certification Euro II
Aspiration Turbocharged & Air-Air Inter-cooled
Fuel System Bosch PW2000 Pump
Electrical System(Starter Motor/Alternator) 24V/510A
Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃
Engine Cooling Fluid Volume 12.3 L
Performance Data of Cummins C230-20Diesel Engine for Vehicle
Rated Power/Speed 170kW/230HP @ 2200rpm
Max.Torque/Speed 861N.m @ 1300 rpm
Fuel Consumption @ Rated Power 40.4 l/hr
Idel Speed 750 rpm
Max. Continuous Running Altitude 2000 m
