Cummins ISDe230 41

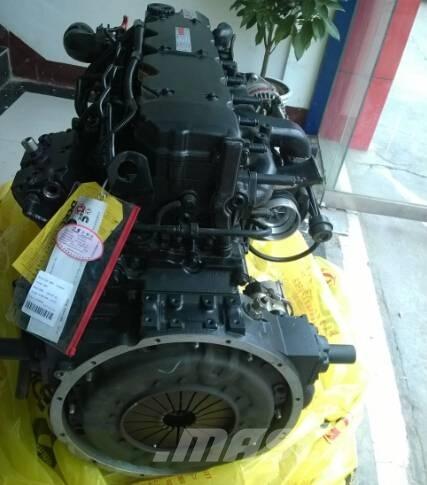

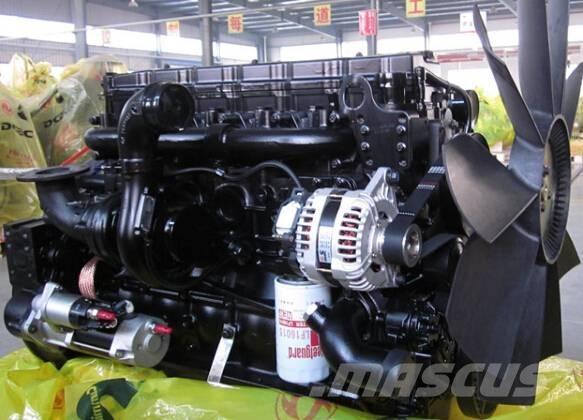

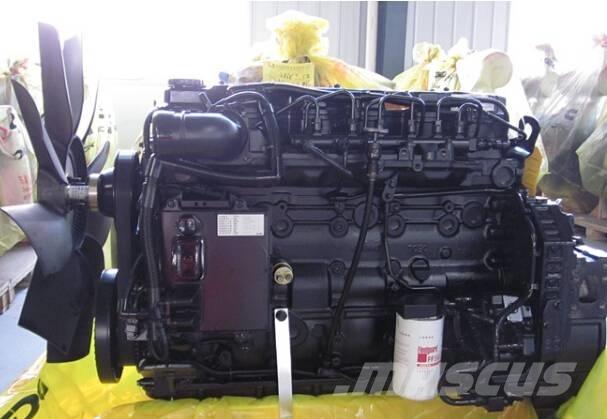

Cummins ISDe230 41 Diesel Engine for Vehicle General Information of Cummins ISDe230 41 Diesel Engine for Vehicle Engine Model ISDe230 41 Engine Type 6 Cylinders, in Line Displacement 6.7 L Bore*Stroke(mm) 107 * 124 Compression Ratio 17.3 : 1 CPL Number    - Net Weight (with flywleel & alternator) 530 Kg Overall Diemension(L*W*H) 1060mm*700mm*860mm Technical Specification of Cummins ISDe230 41 Diesel Engine for Vehicle Certification Euro III Aspiration Turbocharged & Inter-cooled Fuel System Bosch Pump Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃ Engine Cooling Fluid Volume 9.4 L Performance Data of Cummins ISDe230 41 Diesel Engine for Vehicle Rated Power/Speed 169kW/230HP @ 2300rpm Max.Torque/Speed 900N.m @ 1400 rpm Fuel Consumption @ Rated Power 50.4 l/hr Idel Speed 600~800 rpm Max. Continuous Running Altitude 2000 m
