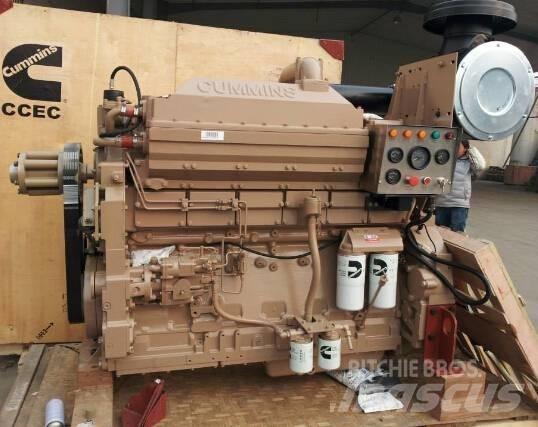

Cummins KTA19-M4
Cena brez DDV
Vprašaj za ceno
1
Priljubljena
Delež
Shrani iskanjeNatisni
INFORMACIJE
Kategorija stroja / vozila
Motorji
Znamka /model
Cummins KTA19-M4
Leto izdelave
2018
Dodatne možnosti
Novo/nerabljeno
Kraj stroja
Jining, Shandong, China
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
4983C186
PODROBNOSTI
Inventarna št.
KTA19-M4
Zadnji pregled
yes
Izhodna moč motorja
522 kW (710 KM)
ID dela
KTA19-M4
Popolna evidenca servisov
Da
Serijska številka proizvoda
KTA19-M4
Transportna teža
2,000 kg
Transportne dimenzije (DxŠxV)
2000 x 1200 x 2000 mm
RPM
1800
Emisijski razred
Stage II
Informacije o stanju/garancija
ISO9001
Država izdelave
Kitajska
Pogoji dostave
FCA, CPT, FOB, CFR, CIF, EXW
Drugi podatki
Cummins KTA19-M700 Marine Propulsion Engine
General Information of Cummins KTA19-M4-700 Marine Propulsion Diesel Engine
Engine Model KTA19-M4-700
Engine Type 6 Cylinders in Line
Displacement 19 L
Bore*Stroke(mm) 159 * 159
CPL Number 2356
Net Weight (Engine only) 2073 Kg
Overall Diemension(L*W*H) 2151mm*966mm*1704mm
Technical Specification of Cummins KTA19-M4-700 Marine Propulsion Diesel Engine
Marine Certification CCS/IMO
Aspiration Turbocharged & Intercooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Rated HP Production Tolerance ±2%
Fuel Rail pressure 820
Performance Data of Cummins KTA19-M4-700 Marine Propulsion Diesel Engine
Rated Power/Speed 522 kW/700HP @ 2100rpm
Standby Power/Speed 570 kW/780HP @ 2100rpm
Fuel Consumption @ Rated Power 219g/Kw.h
Fuel Consumption @ Standby Power 215g/Kw.h
Idel Speed 675~775rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kitajska
