Geotec ROTOMAX Li

Cena brez DDV

Vprašaj za ceno

Images11Videos1

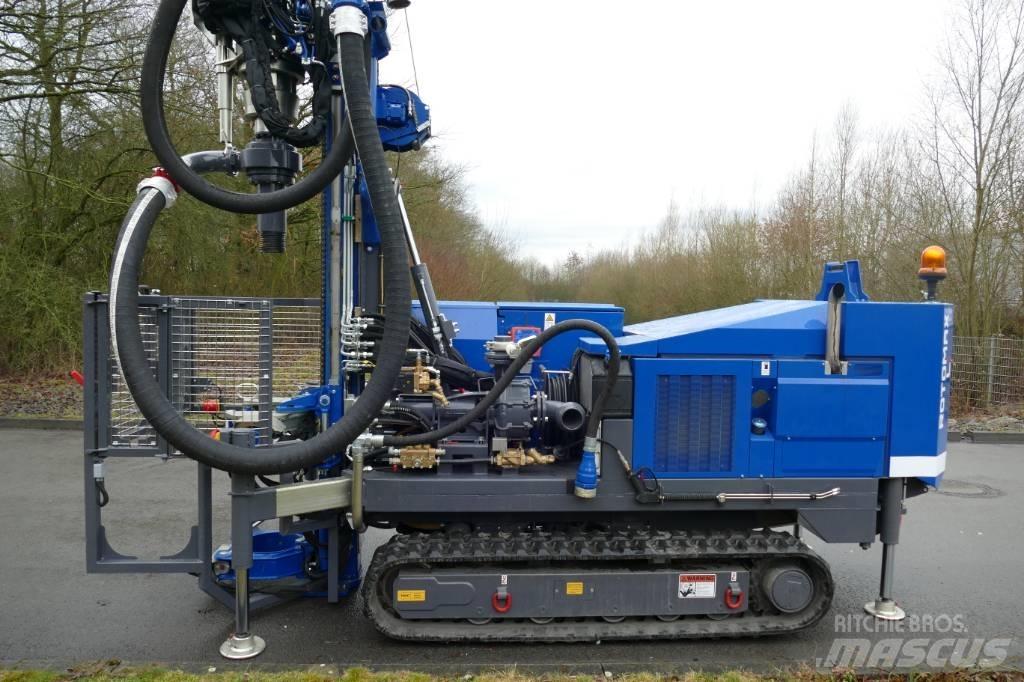

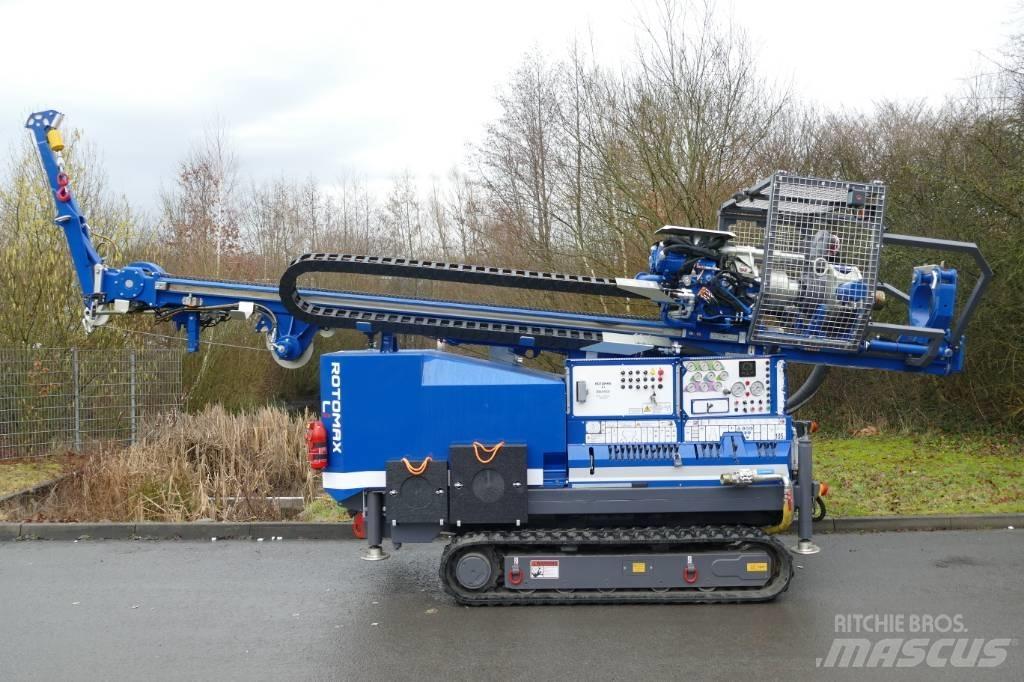

Geotec ROTOMAX Li Naprave za vodne vrtine
Geotec ROTOMAX Li Naprave za vodne vrtine
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Naprave za vodne vrtine
Znamka /model
Geotec ROTOMAX Li
Leto izdelave
2022
Dodatne možnosti
Novo/nerabljeno
Kraj stroja
Nordkirchen
Država
Nemčija
Splošna ocena
1
2
3
4
5
Mascus ID
B88F05AC

PODROBNOSTI

Zadnji pregled
2022
Popolna evidenca servisov
Da
Motor
136KM
Engine manufacturer
PERKINS
Emisijski razred
Stage V
Hladilni sistem
Voda
Dodajalni mehanizem
Cilinder
Delovne ure nabijanja
0
Ure udarjanja
0
Znamka manipulatorja vrtalnih drogov
GEOTEC
Znamka dodajalnega mehanizma
GEOTEC
Znamka gosenic
GEOTEC
Tip nosilca
Goseničen
Informacije o stanju/garancija
1000 Hours / 1 Year
Transportna teža
6,000 kg
Transportne dimenzije (DxŠxV)
4000 x 1600 x 2400 mm
Ohranjenost profila sprednjih pnevmatik
100
Ohranjenost profila zadnjih pnevmatik
100
Pogoji dostave
EXW
Drugi podatki
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Naprej

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Nemčija
