INFORMACIJE

Kategorija stroja / vozila
Pilotna hidravlična kladiva
Znamka /model
BSP HH6 LD
Leto izdelave
1998
Kraj stroja
Etten Leur, Noord-Brabant
Država
Nizozemska
Splošna ocena
1
2
3
4
5
Mascus ID
3E85A9F3

CENA

Izberite valuto

PODROBNOSTI

Zadnji pregled
2024-10-14
Število prejšnjih lastnikov
1
Transportna teža
8,500 kg
Transportne dimenzije (DxŠxV)
5500 x 740 x 1110 mm
Informacije o stanju/garancija
warranty expired
Država izdelave
Velika Britanija
Pogoji dostave
EXW
Dodatna oprema
Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
Drugi podatki

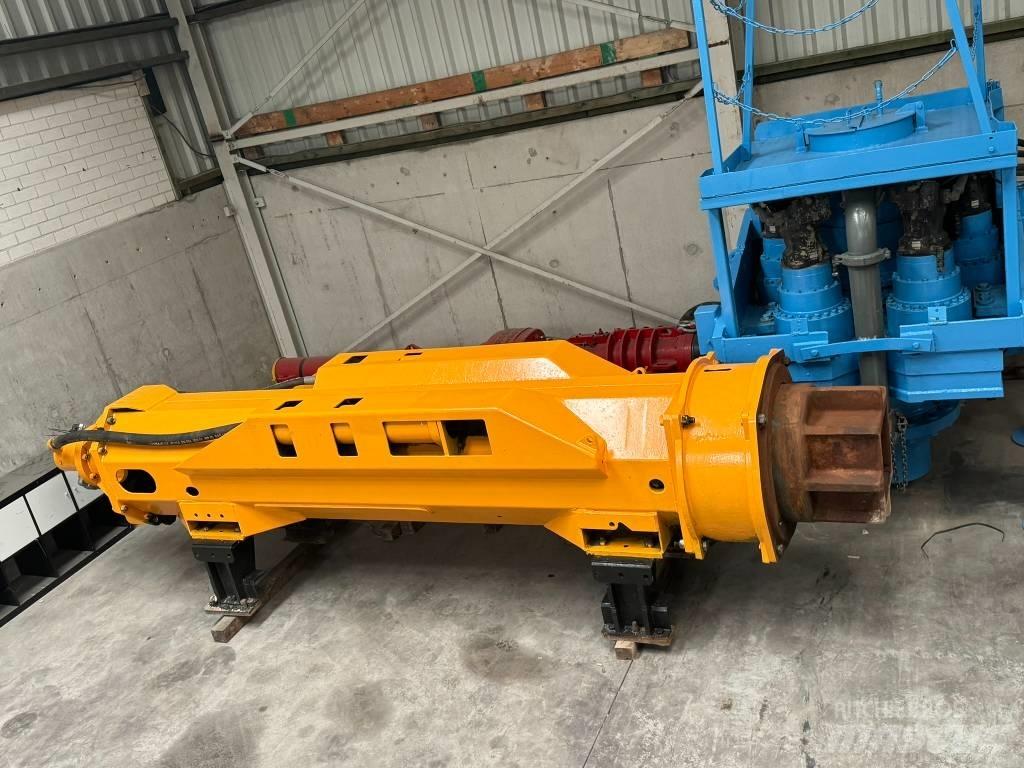

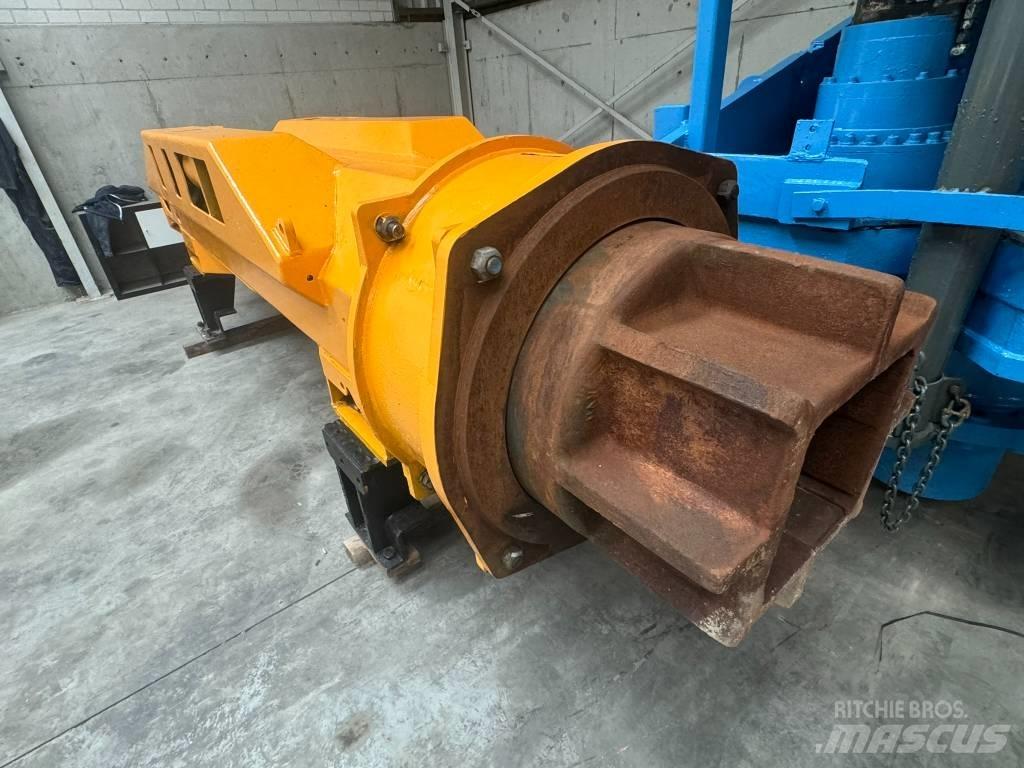

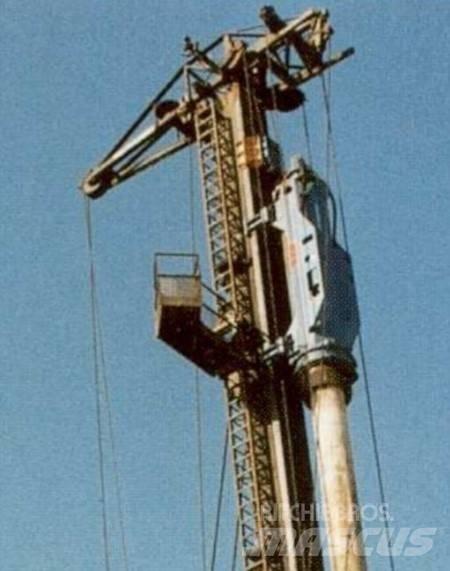

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kgNaprej
