CAT 320 B

Cena brez DDV

Images18

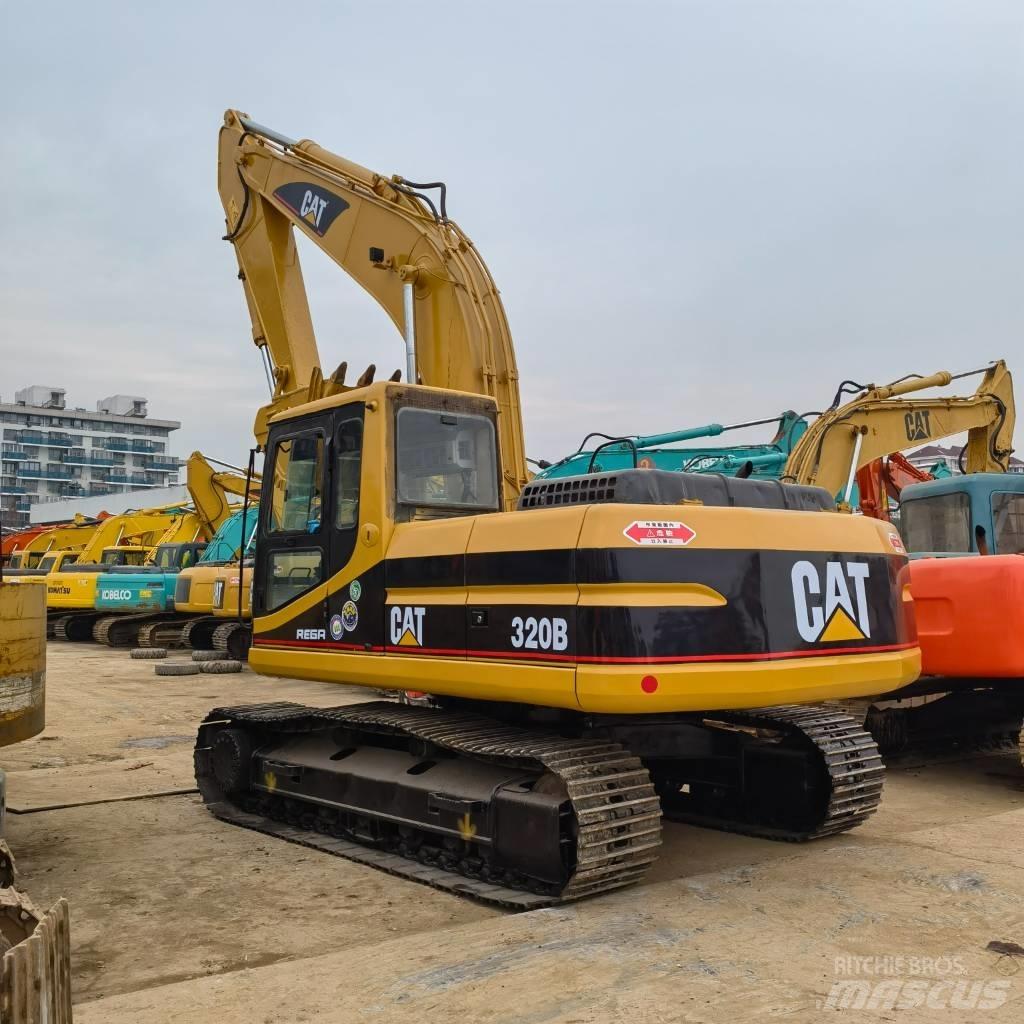

CAT 320 B Bagri goseničarji
CAT 320 B Bagri goseničarji
CAT 320 B Bagri goseničarji
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Bagri goseničarji
Znamka /model
CAT 320 B
Leto izdelave
2022
Delovne ure
482 h
Država
Kitajska
Splošna ocena
1
2
3
4
5
Mascus ID
B480BF47

CENA

Izberite valuto

PODROBNOSTI

Število prejšnjih lastnikov
1

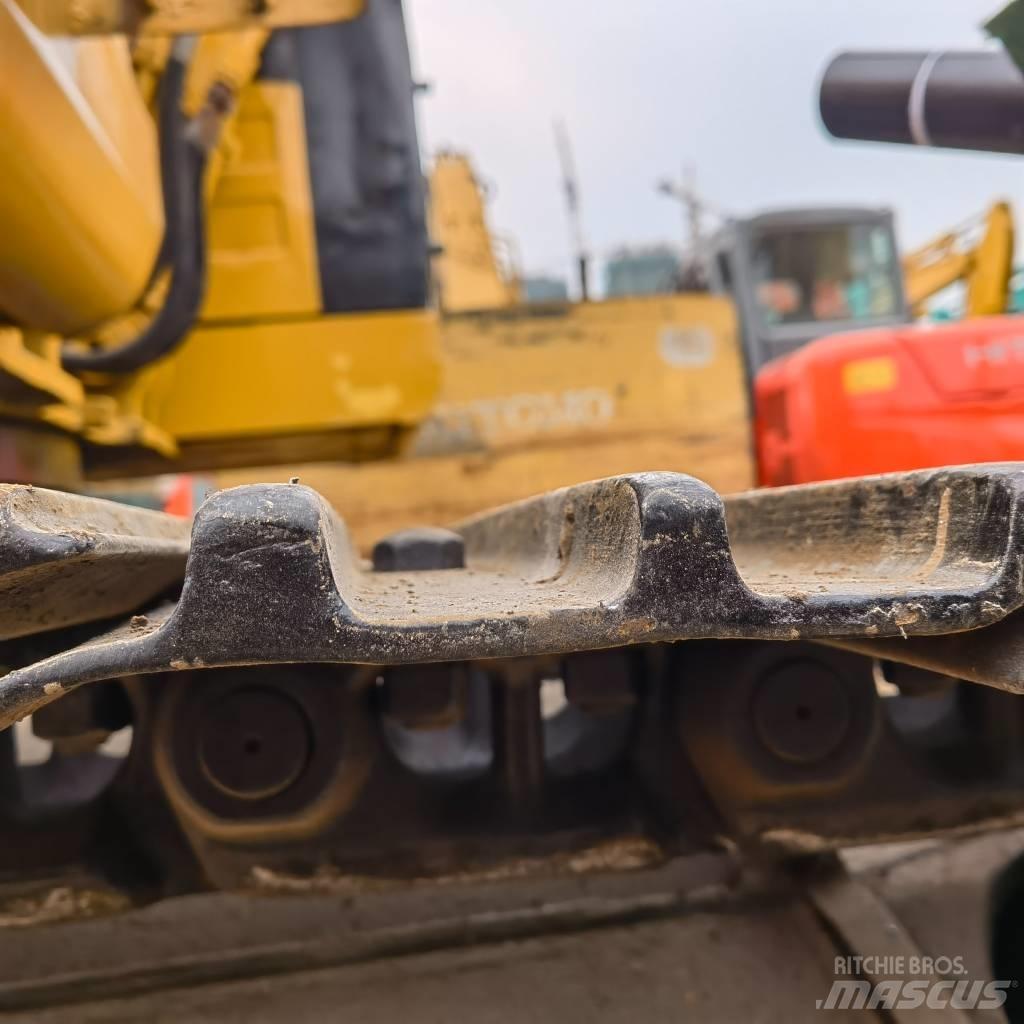

Stanje podvozja
good
Bruto teža
20,000 kg
Izhodna moč motorja
168 kW (228 KM)
Engine manufacturer
JAPAN
Emisijski razred
Faza V / IV stopnja finala
Prostornina žlice
1.65 m3
Širina gosenic
750 mm
Največja hitrost
4 km/h
Transportne dimenzije (DxŠxV)
944028002.94 m
Originalna barva
YELLOW
Dolžina "stick" roke
1,800 mm
Informacije o stanju/garancija
good
Država izdelave
Japonska
Pogoji dostave
FOB, EXW
Certifikati
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Dodatna oprema
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Dodatna oprema
Hidravlična hitra menjava
Podaljšana "boom" roka
Hidravlično nastavljiva "boom" roka
blokirni ventil "boom" roke
Naprej
Drugi podatki
The Caterpillar Cat320B excavator has various derivative models. The following are the common parameters of its basic model: ### General Specifications - **Operating weight of the whole machine**: 19,400 kg - **Standard bucket capacity**: 0.92 m³ - **Boom length**: 5,680 mm - **Stick length**: 2,900 mm - **Place of origin**: Japan - **Total transport length**: 9,440 mm - **Total transport width**: 2,800 mm - **Total transport height**: 2,940 mm - **Overall height of the cab**: 2,940 mm - **Minimum ground clearance**: 475 mm - **Tail swing radius**: 2,750 mm - **Track gauge**: 2,200 mm - **Track shoe width**: 600 mm - **Total track width**: 2,800 mm - **Track ground contact length**: 3,265 mm ### Power System - **Engine model**: Caterpillar CAT 3066T - **Rated power**: 99.9 kW / 1,800 rpm - **Bore × Stroke**: 102 mm × 130 mm - **Displacement**: 6.4 L ### Performance Parameters - **Slewing speed**: 10.7 rpm - **Travel speed**: 3.4 / 5.5 km/h - **Maximum digging depth**: 6,640 mm - **Maximum digging height**: 9,470 mm - **Maximum unloading height**: 6,570 mm - **Maximum vertical digging depth**: 6,040 mm - **Maximum digging radius at ground level**: 9,780 mm ### Hydraulic System - **Maximum flow rate of the main pump**: 185 L/min - **Travel hydraulic circuit pressure**: 34.3 MPa - **Slewing hydraulic circuit pressure**: 23 MPa - **Working hydraulic circuit pressure**: 34.3 MPa - **Pilot hydraulic circuit pressure**: 4.12 MPa - **Bucket cylinder**: 1 - 120 × 1,030 mm (Number × Bore × Stroke) - **Stick cylinder**: 1 - 140 × 1,430 mm (Number × Bore × Stroke) - **Boom cylinder**: 2 - 120 × 1,260 mm (Number × Bore × Stroke) ### Fluid Capacities - **Fuel tank capacity**: 340 L - **Hydraulic oil tank capacity**: 130 L - **Engine oil replacement volume**: 20.5 L - **Coolant capacity**: 25 L - **Hydraulic system fluid capacity**: 220 LNaprej

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kitajska
