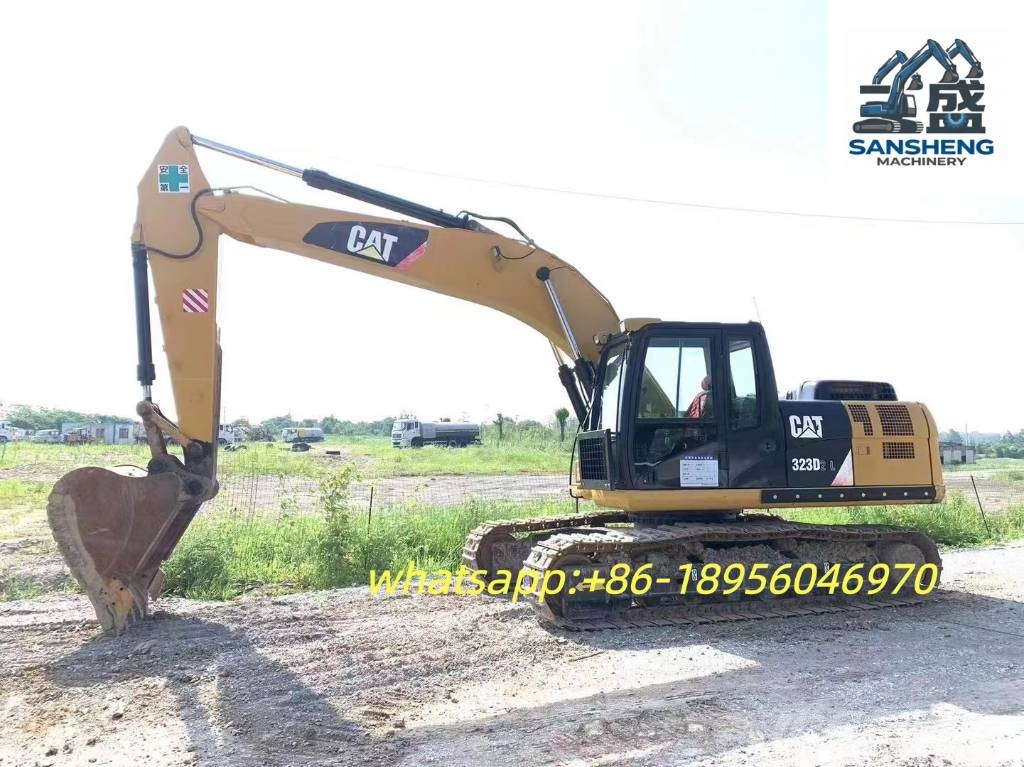

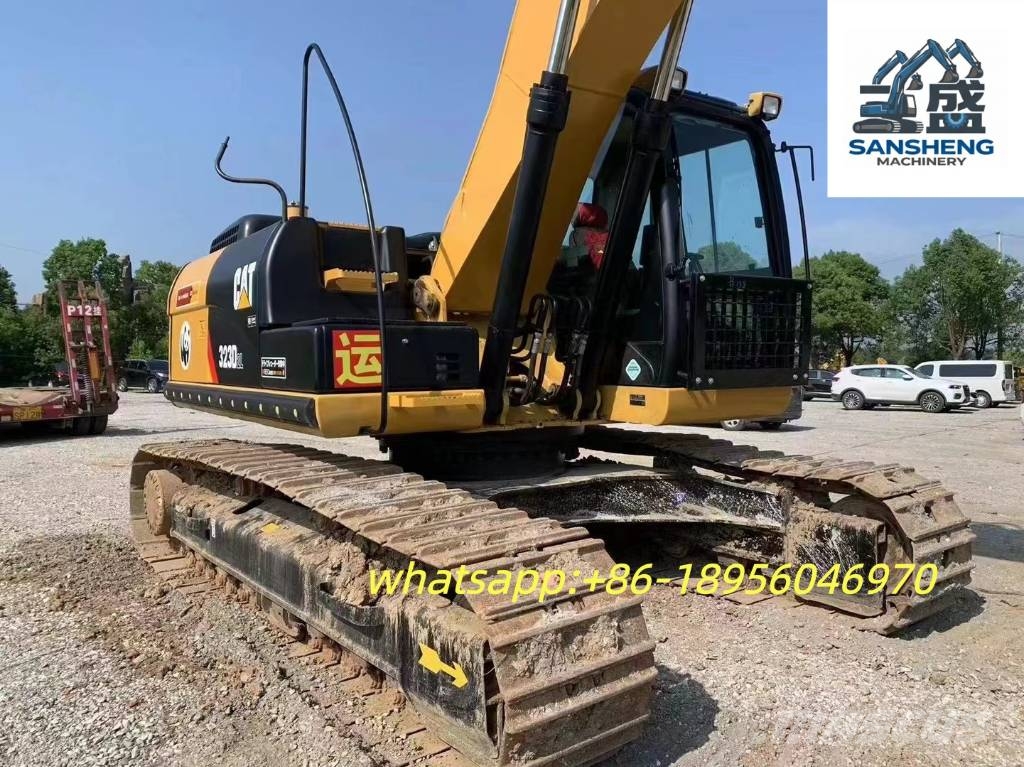

CAT 323D2L

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

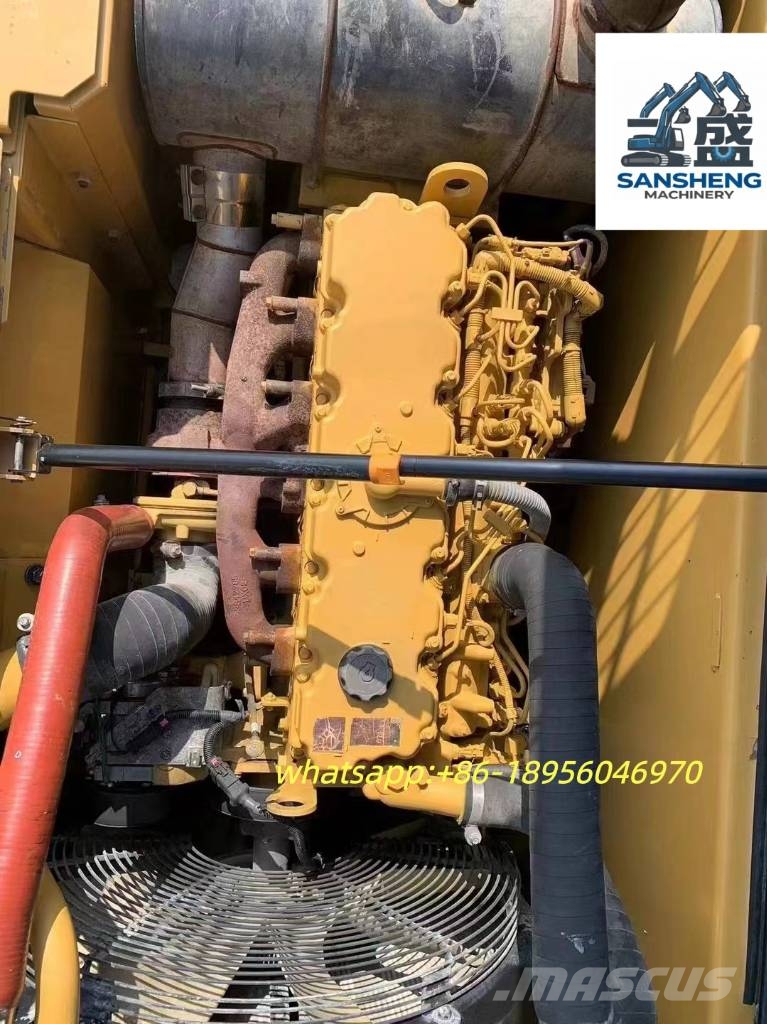

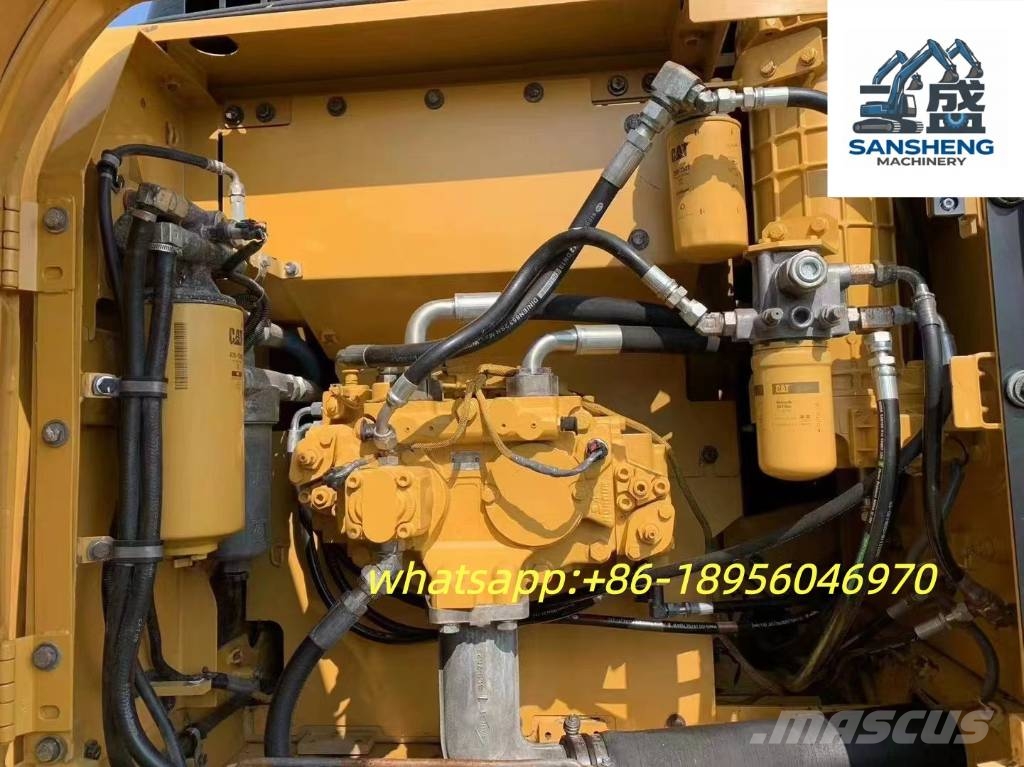

Overall machine weight (kg) 23300 Bucket capacity (m³) 1.19 Lift arm length (mm) 5700 Pole arm length (mm) 2900 Origin Japan Tonnage (tons) 23 Bucket is backhoe type Power traditional power Bucket is backhoe type Manufacturer joint venture/imported Power traditional power Performance Rotation speed (rpm) 10.5 Rotation torque (Nm) 61.8 Travel speed (km/h) Low: 3.5 / High: 5.6 Climb ability (%) 70/35° Bucket digging force (kN) 140 Pole arm digging force (kN) 107 Maximum traction force (kN) 205 Power system Engine model Cat C7.1 ACERT Rated power (kw/rpm) 118/1100 Displacement (L) 7.01 Number of cylinders (units) 6 Cylinder diameter × stroke (mm) 105 × 135 Hydraulic system Main overflow set pressure (Mpa) 35 Main pump maximum flow rate (l/min) 214 × 2 Working hydraulic oil circuit (Mpa) 35 Travel hydraulic circuit (Mpa) 35 Rotation hydraulic circuit (Mpa) 25 Pilot circuit (Mpa) 3.92 Pilot pump flow rate (L/min) 23.1 Lift arm - number × cylinder diameter × stroke (mm) 120 × 1260 Pole arm - number × cylinder diameter × stroke (mm) 140 × 1504 Bucket - number × cylinder diameter × stroke (mm) 120 × 1104 Hydraulic crushing pipeline standard configuration: No Oil capacity Fuel tank (L) 410 Hydraulic oil tank (L) 138 Hydraulic system (L) 260 (including oil tank) Engine oil replacement volume (L) 22 Coolant (L) 25 Main body dimensions Total transportation length (mm) 9460 Total transportation width (mm) 2980 Total transportation height (mm) 3030 Driver's cab full height (mm) 2950 Vehicle width (mm) 2740 Weight clearance from ground (mm) 1020 Track ground length (mm) 3650 Total track length (mm) 4455 Track plate width (mm) 600 Total track width (mm) 3180 Track gauge (mm) 2380 Minimum clearance (mm) 450 Back end rotation radius (mm) 2750 Working range Maximum digging radius from stop (mm) 9860 Maximum digging depth (mm) 6720 Maximum digging height (mm) 9490 Maximum unloading height (mm) 6490 Maximum vertical digging depth (mm) 5690 Maximum effective digging depth (mm) 6380
