Kobelco SK 115

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

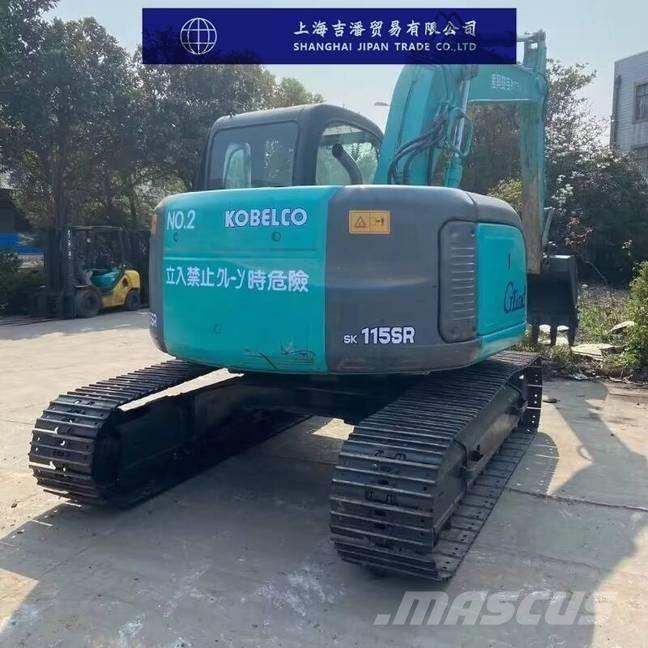

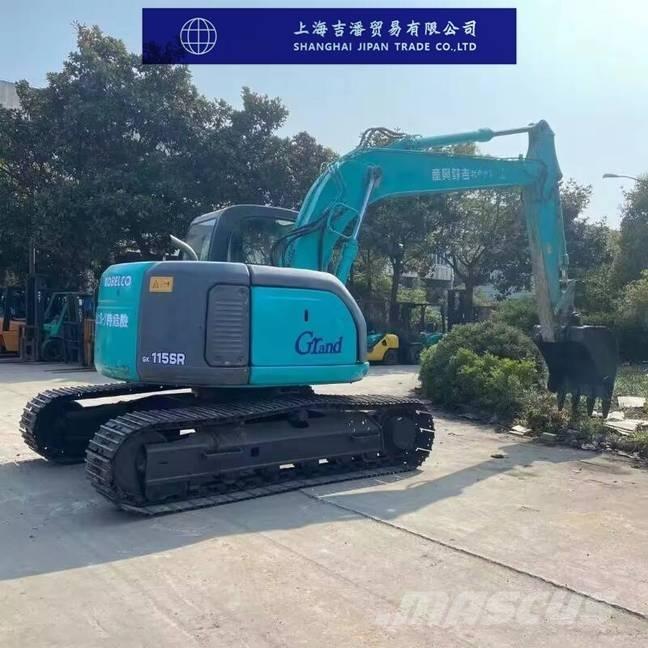

Kobelco SK115SRR (2.2m standard arm) excavator Parameter configuration specification The working weight of the whole machine (kg) is 11800 Bucket capacity (m³) 0.45 Stick length (mm) 2200 Place of origin: Hangzhou Tonnage (tons) 11 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Grounding specific pressure (Kpa) 30 Slew speed (rpm) 11.4 Travel speed (km/h) 3.5/6.0 Climbing ability (%) 70/35° Bucket digging force (kN) 85.5 Stick digging force (kN) 58.5 dynamical system Engine model: ISUZU BB-4BG1T Rated power (kw/rpm) 58.8/2050 Hydraulic system Main pump type: Duplex variable displacement axial piston pump Main overflow set pressure (Mpa) 32.4 Oil capacity Fuel tank (L) 168 Hydraulic Tank (L) 140 (All) Body size Total length of transport (mm) 6880 Total Transport Width (mm) 2590 Total height of transport (mm) 2740 Cab total height (mm) 2740 Counterweight ground clearance (mm) 910 Total track length (mm) 3320 Track shoe width (mm) 500 Total track width (mm) 2590 Track gauge (mm) 1990 Minimum ground clearance (mm) 455 Scope of work Maximum digging radius (mm) 7710 The maximum excavation radius of the shutdown surface (mm) is 7590 Maximum digging depth (mm) 5060 Maximum digging height (mm) 8160 Maximum unloading height (mm) 5780 Maximum vertical digging depth (mm) 4500 Maximum effective digging depth (mm) 4800 Width × height (mm) of bulldozer plate 2490×570 Bulldozer shovel lifting or pushing depth (mm) 490/540
