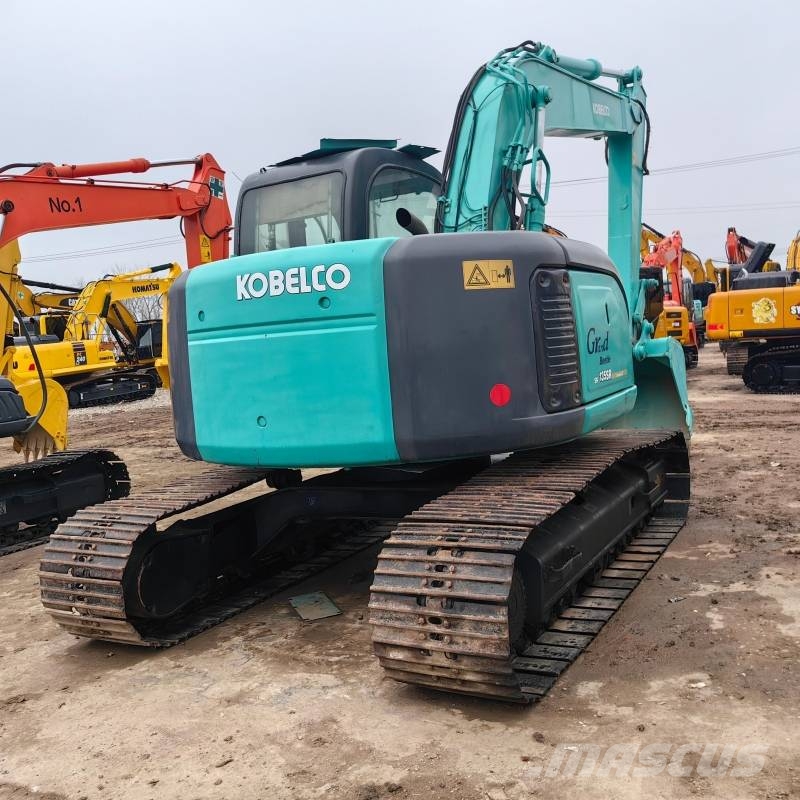

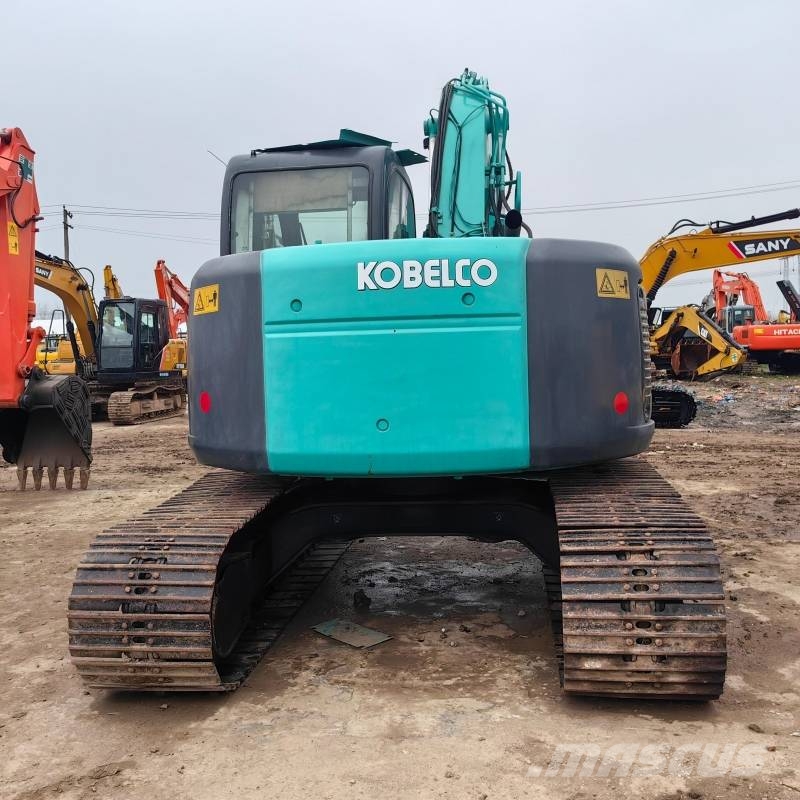

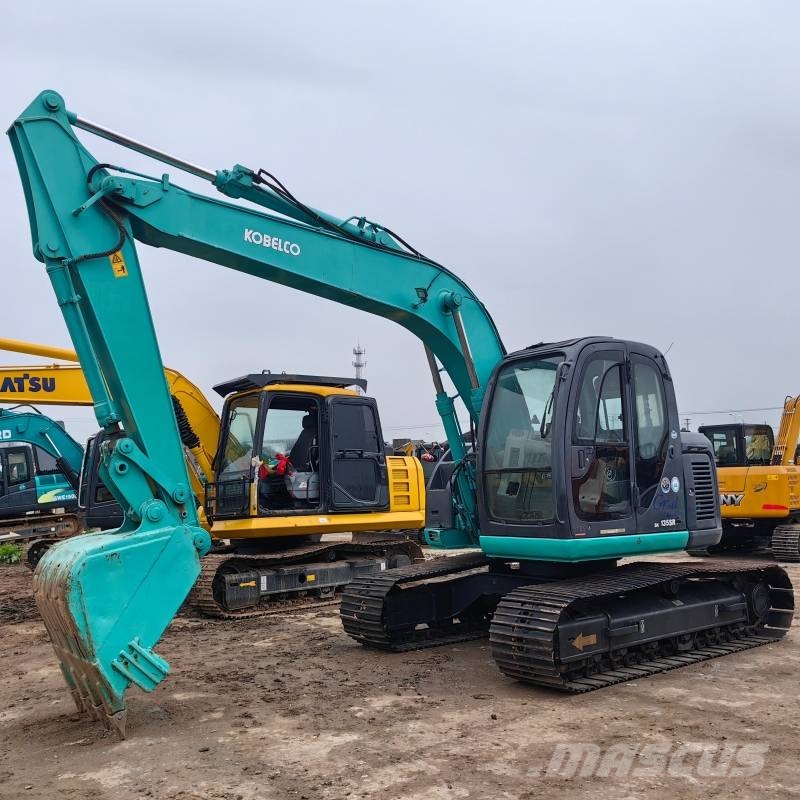

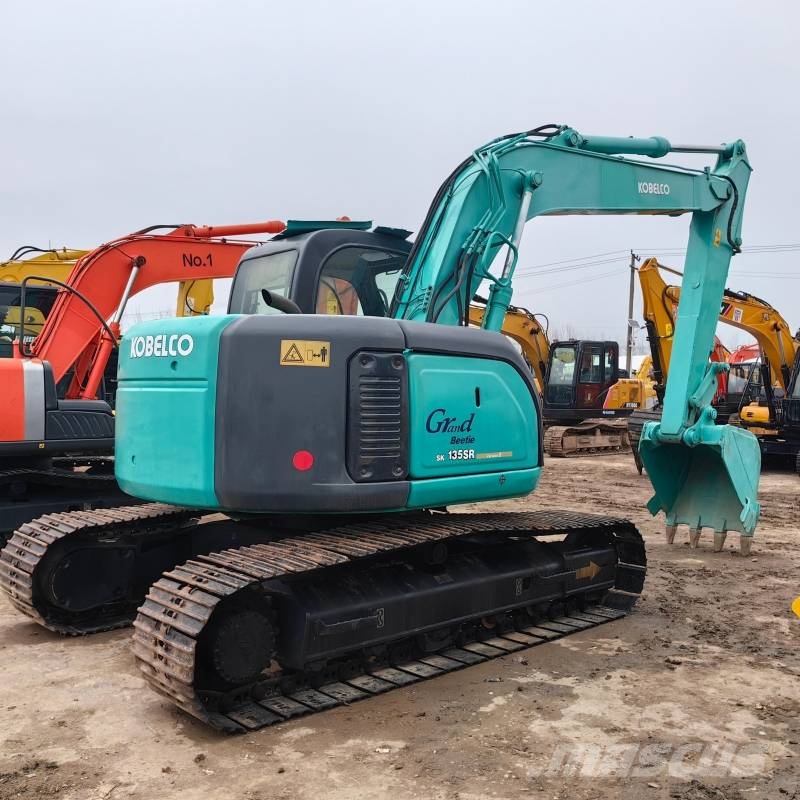

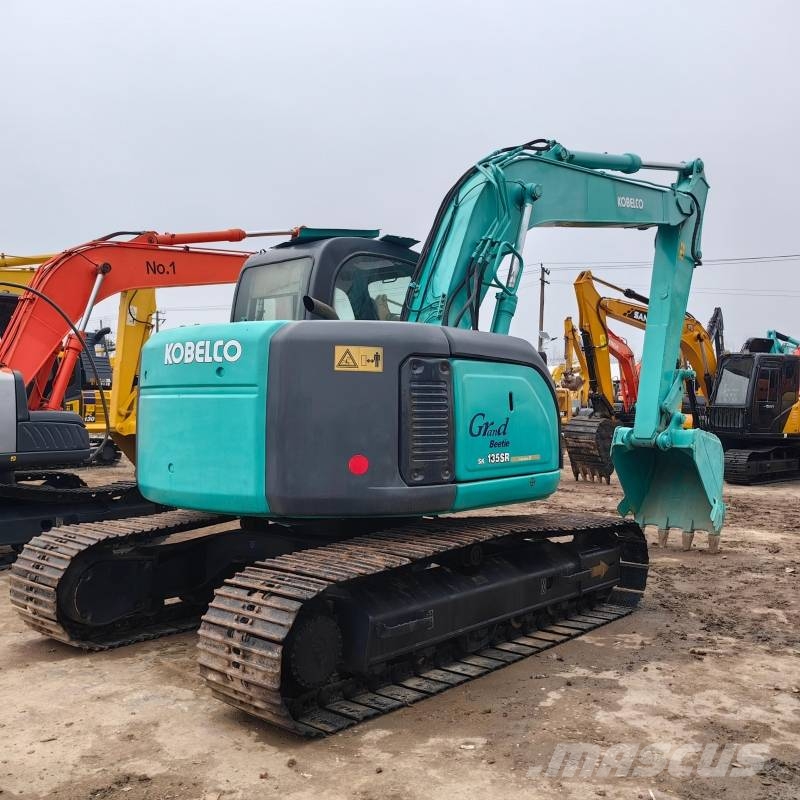

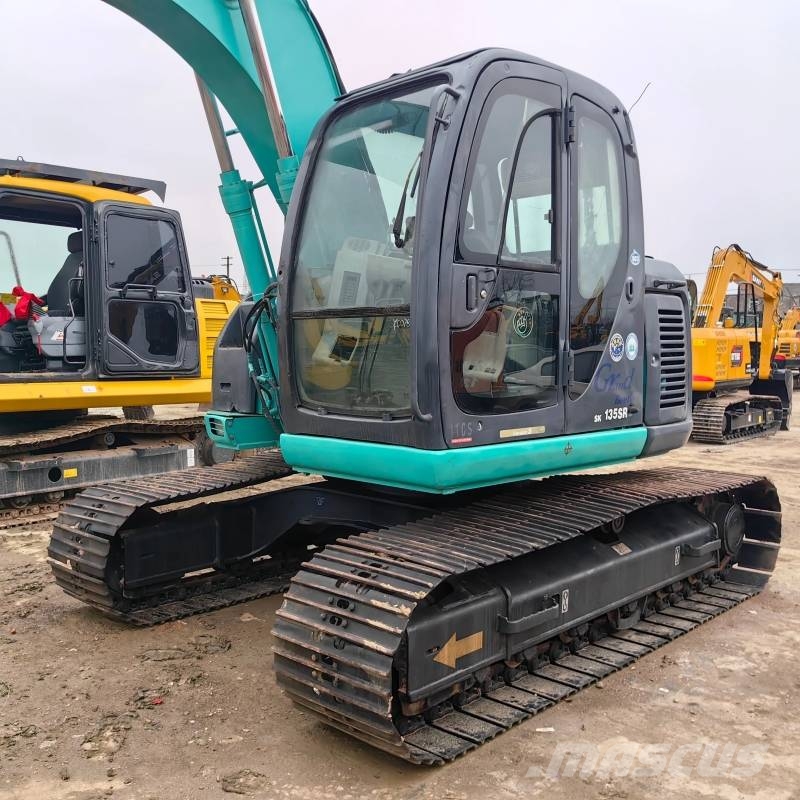

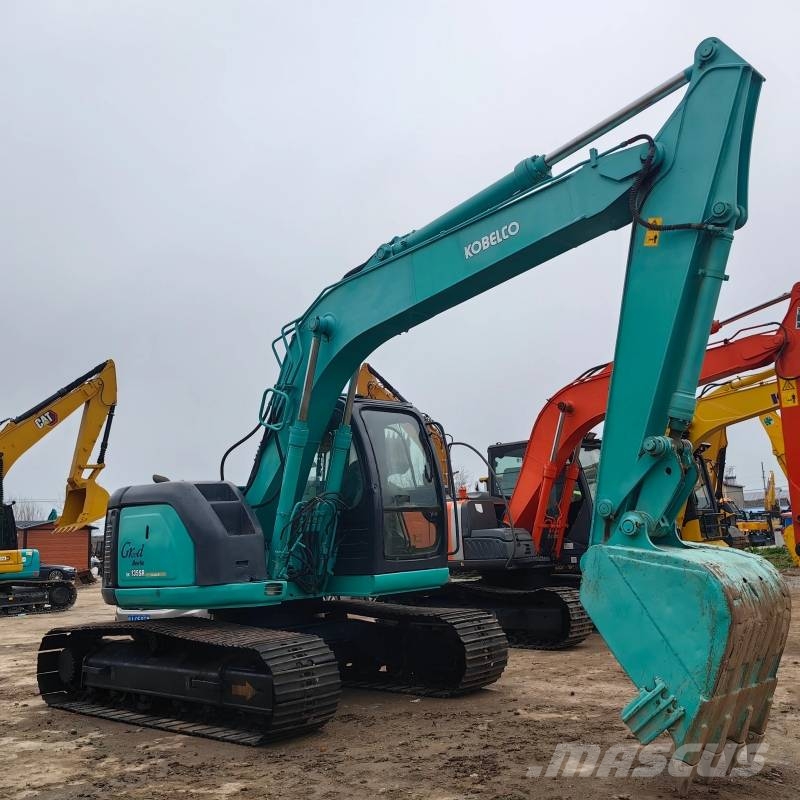

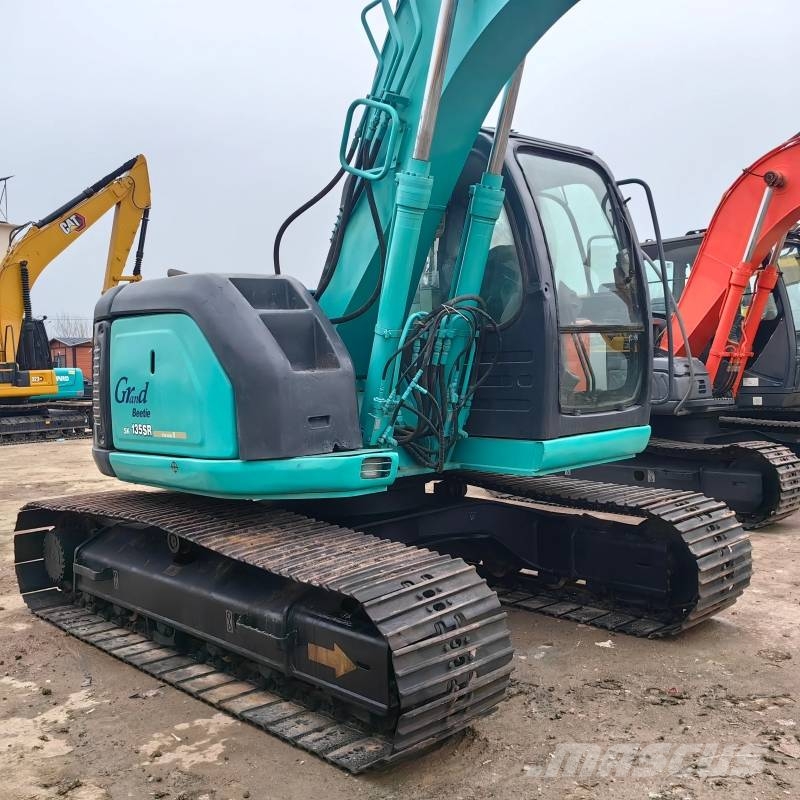

Kobelco SK 135 SR

# KOBELCO SK135SR Crawler Excavator Specifications Model: KOBELCO SK135SR Operating Weight: 13800 kg Bucket Capacity: 0.5 m³ Transport Dimensions (L×W×H): 7430 × 2490 × 2860 mm Track Shoe Width: 500 mm Travel Speed (High/Low): 5.6 / 3.4 km/h Swing Speed: 11.5 rpm Bucket Digging Force: 105.4 kN Arm Digging Force: 72.8 kN Max Digging Depth: 5560 mm Max Digging Radius: 8340 mm Max Dumping Height: 6230 mm Max Digging Height: 8610 mm Ground Clearance: 440 mm Ground Pressure: 42 kPa ## Engine Engine Model: Mitsubishi D04FR Rated Gross Power: 74 kW / 2000 rpm Rated Net Power: 69.2 kW / 2000 rpm Displacement: 3060 cc Cylinders: 4 in-line, water-cooled diesel, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 200 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 280 L/min Max Working Pressure: 34.3 MPa
