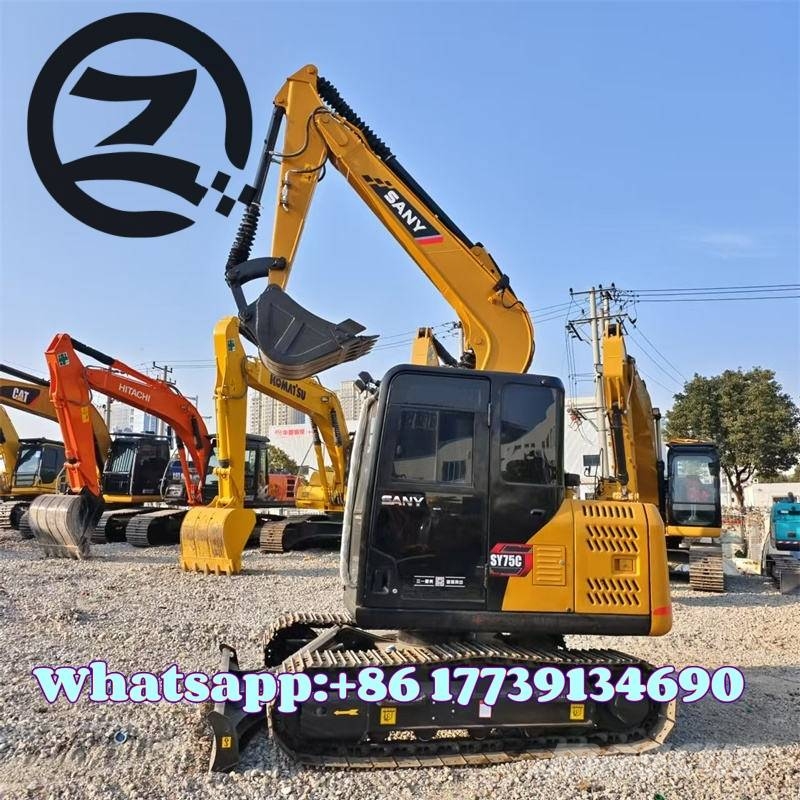

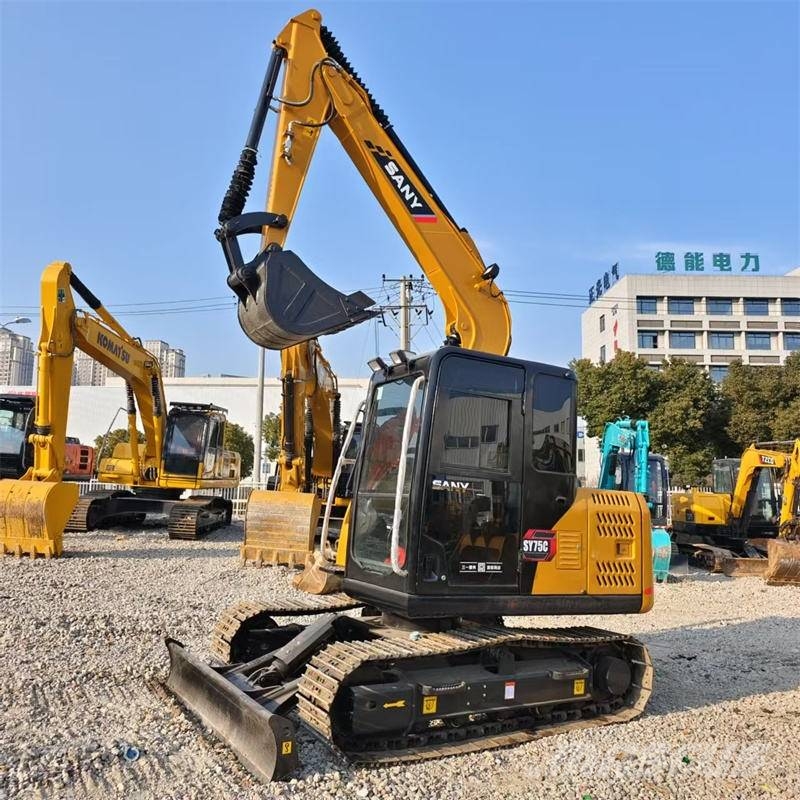

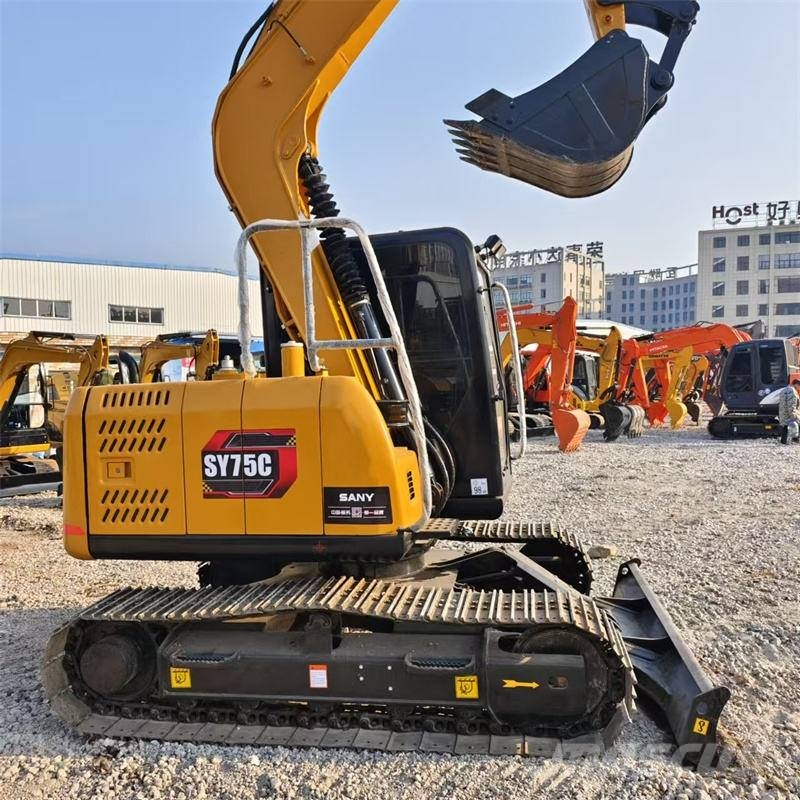

Sany SY 75 C

# SANY SY75C Crawler Excavator Specifications Model: SANY SY75C Operating Weight: 7280 kg Bucket Capacity: 0.28 m³ Transport Dimensions (L×W×H): 6120 × 2220 × 2720 mm Track Shoe Width: 450 mm Travel Speed (High/Low): 5.12 / 2.4 km/h Swing Speed: 10.5 rpm Bucket Digging Force: 53 kN Arm Digging Force: 35 kN Max Digging Depth: 4065 mm Max Digging Radius: 6240 mm Max Dumping Height: 5110 mm Max Digging Height: 7015 mm Ground Clearance: 380 mm ## Engine Engine Model: Yanmar 4TNV98C Rated Net Power: 42.4 kW / 2100 rpm Displacement: 3319 cc Cylinders: 4 in-line Emission Standard: EU Stage V (Euro 5) Fuel Tank Capacity: 150 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 165 L/min Max Working Pressure: 28.5 MPa
