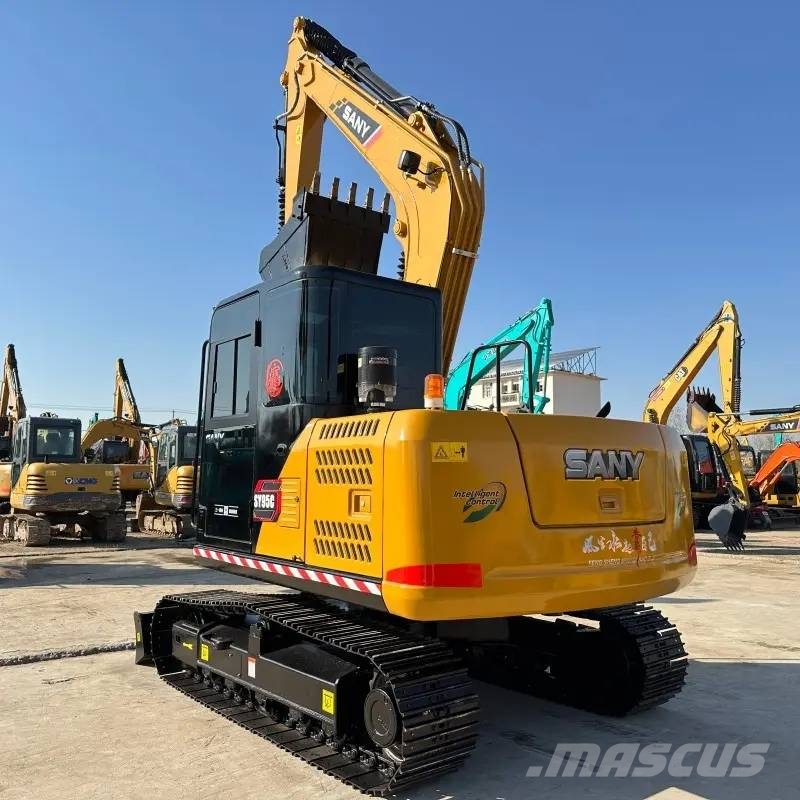

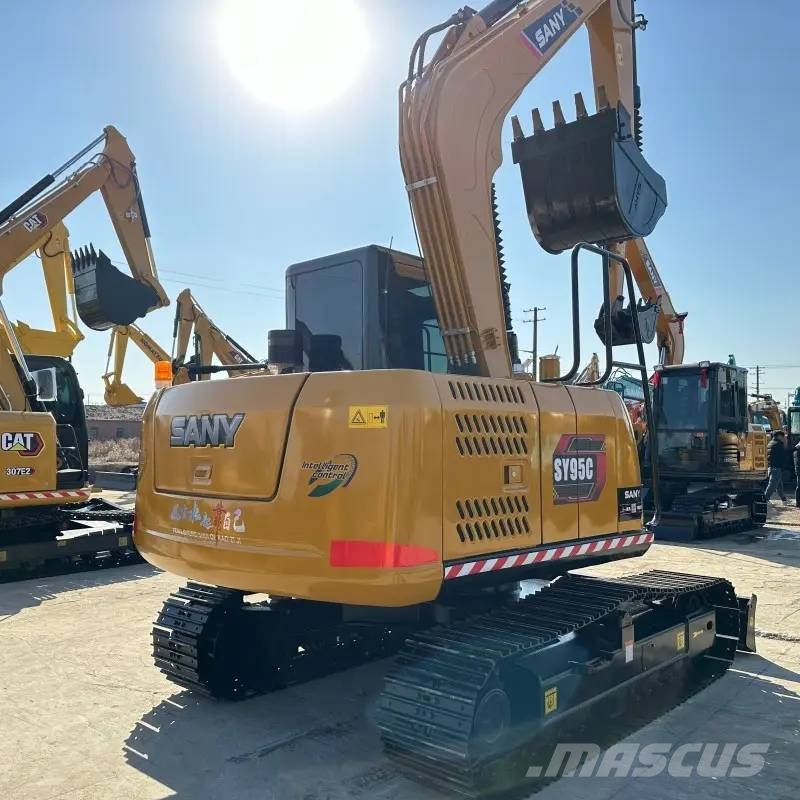

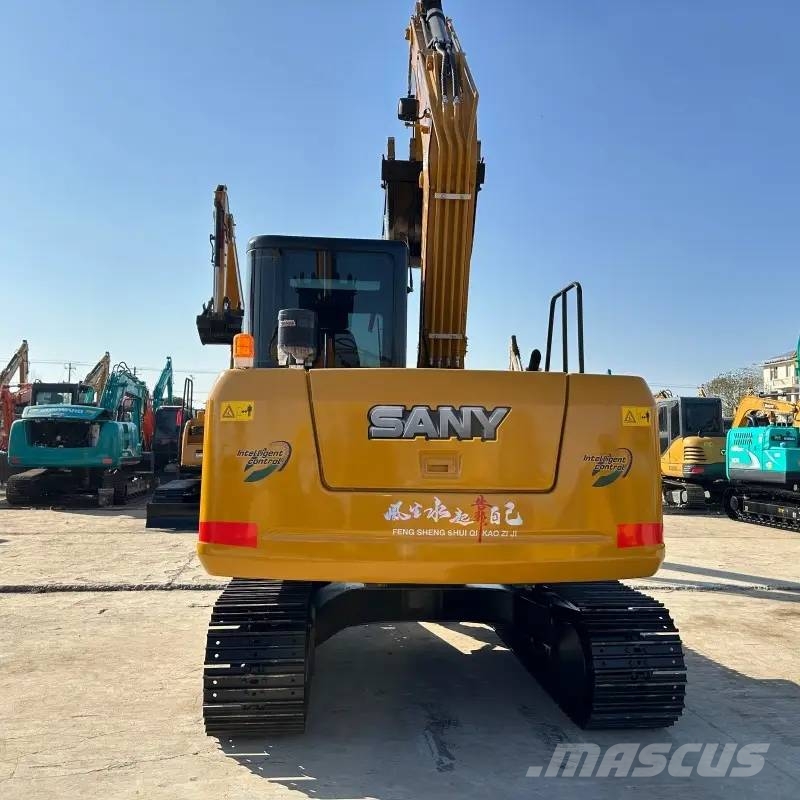

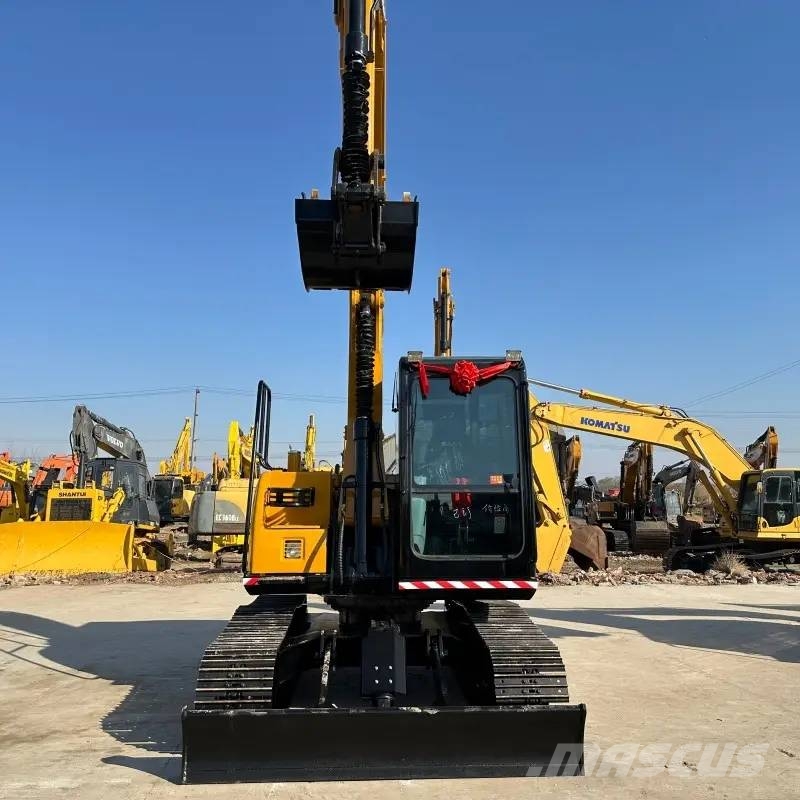

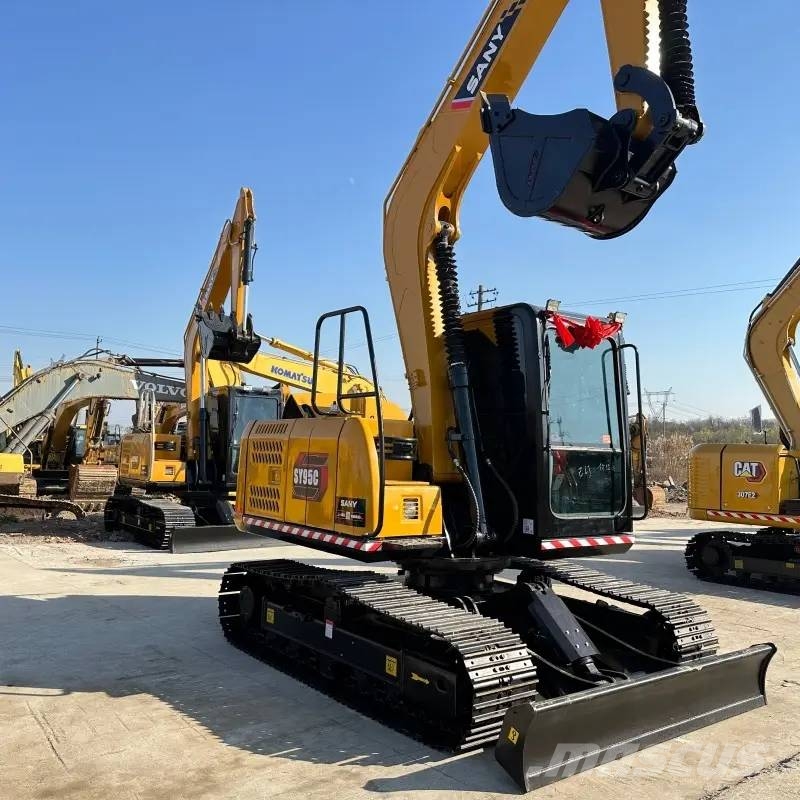

Sany SY 95 C

# SANY SY95C Crawler Excavator Specifications Model: SANY SY95C Operating Weight: 9180 kg Bucket Capacity: 0.38 m³ Transport Dimensions (L×W×H): 6650 × 2160 × 2720 mm Track Shoe Width: 450 mm Travel Speed (High/Low): 5.0 / 2.9 km/h Swing Speed: 11.5 rpm Bucket Digging Force: 64.6 kN Arm Digging Force: 53.5 kN Max Digging Depth: 4330 mm Max Digging Radius: 6660 mm Max Dumping Height: 5210 mm Max Digging Height: 7260 mm Ground Clearance: 360 mm Ground Pressure: 38.6 kPa Gradeability: 35° Fuel Tank Capacity: 240 L ## Engine Engine Model: Yanmar 4TNV98CT-VSY Rated Gross Power: 53.7 kW / 2100 rpm Net Power: 49.5 kW Cylinders: 4 Displacement: 3.3 L Cooling Type: Water cooled Origin: Japan ## Hydraulic System Pump Type: Variable displacement axial piston pump, load sensing with pilot control Max System Pressure: 26.3 MPa Max Flow Rate: 199.5 L/min
