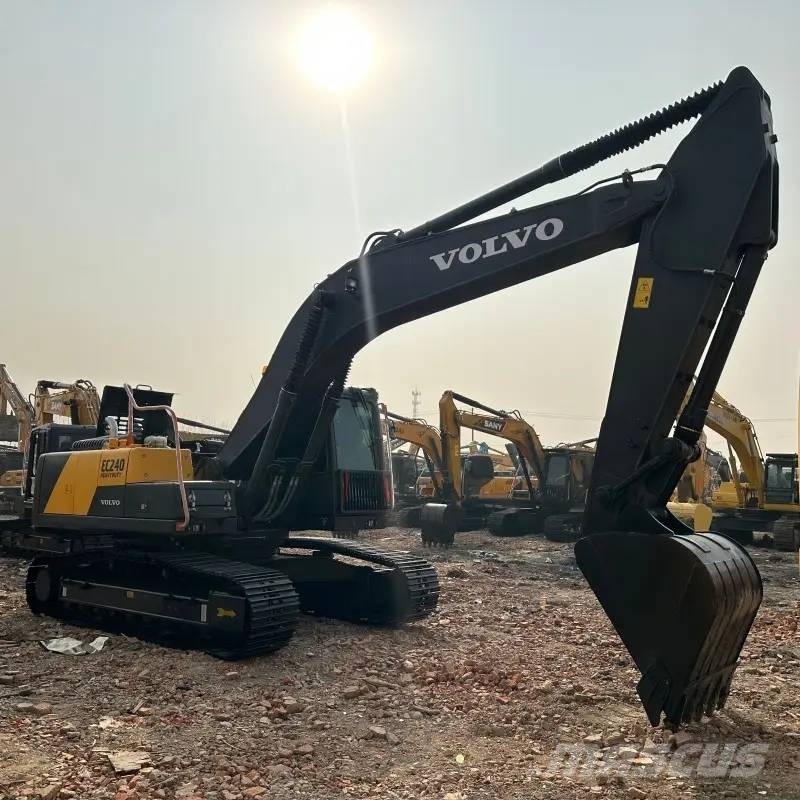

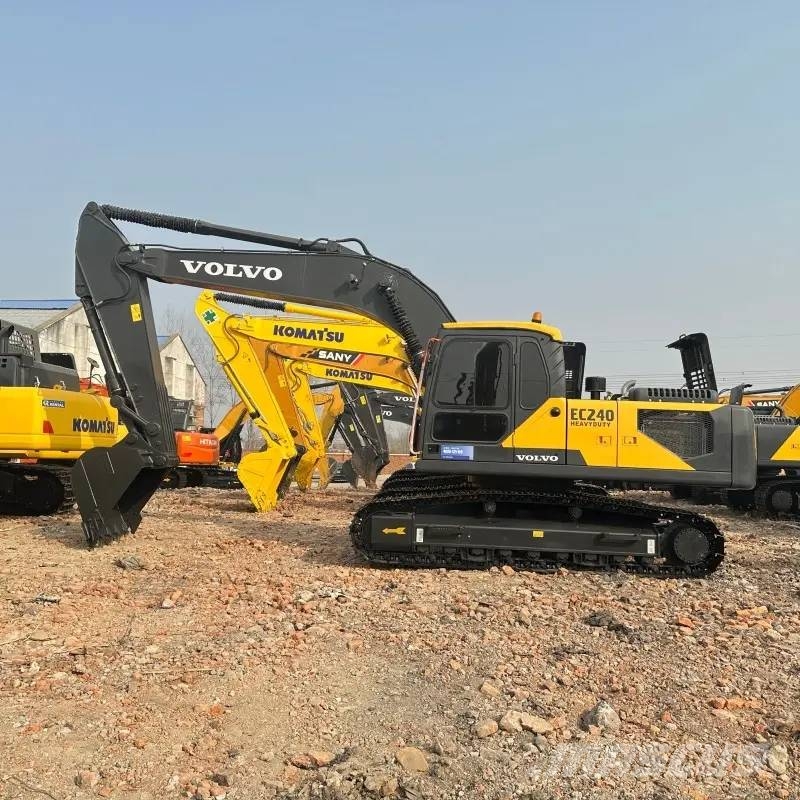

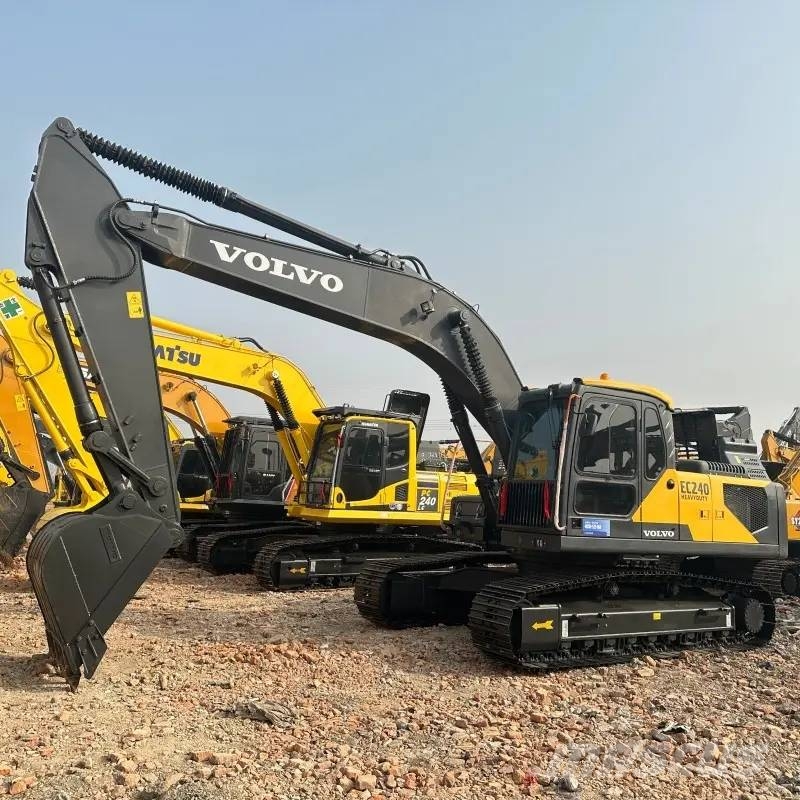

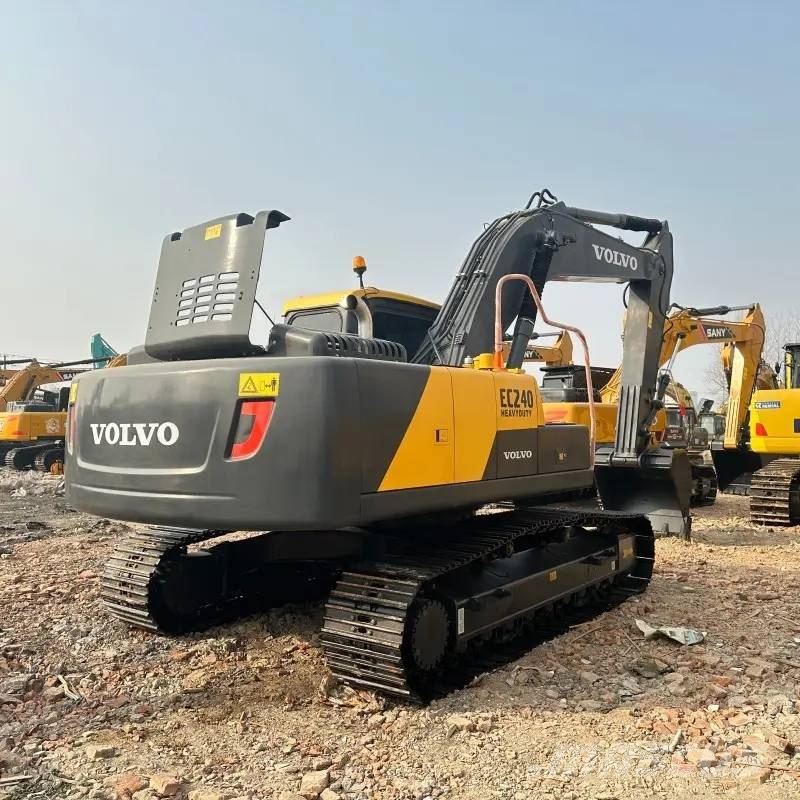

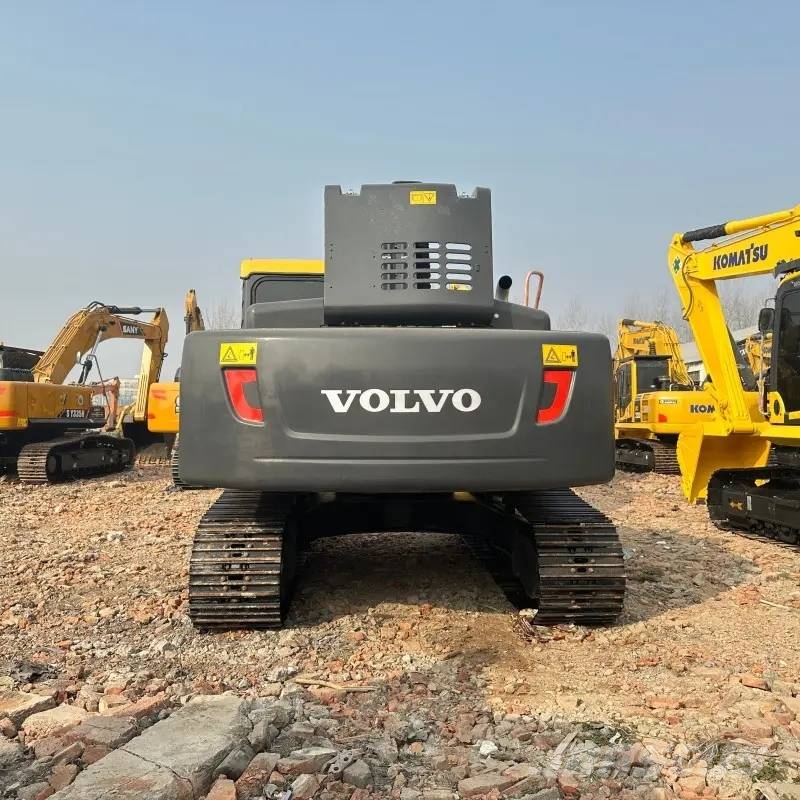

Volvo EC 240

# VOLVO EC240 Crawler Excavator Specifications Model: VOLVO EC240 Operating Weight: 24500 kg Bucket Capacity: 1.0 m³ Transport Dimensions (L×W×H): 9880 × 2990 × 3020 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 5.5 / 3.2 km/h Swing Speed: 11.2 rpm Bucket Digging Force: 159 kN (174 kN with power boost) Arm Digging Force: 114 kN (125 kN with power boost) Max Digging Depth: 6650 mm Max Digging Radius: 9730 mm Max Dumping Height: 6800 mm Max Digging Height: 9480 mm Ground Clearance: 460 mm Ground Pressure: 48 kPa ## Engine Engine Model: Volvo D7D Rated Gross Power: 134 kW / 2200 rpm Rated Net Power: 124 kW / 2200 rpm Displacement: 7120 cc Cylinders: 6 in-line, water-cooled diesel, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 350 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 460 L/min Max Working Pressure: 33.0 MPa
