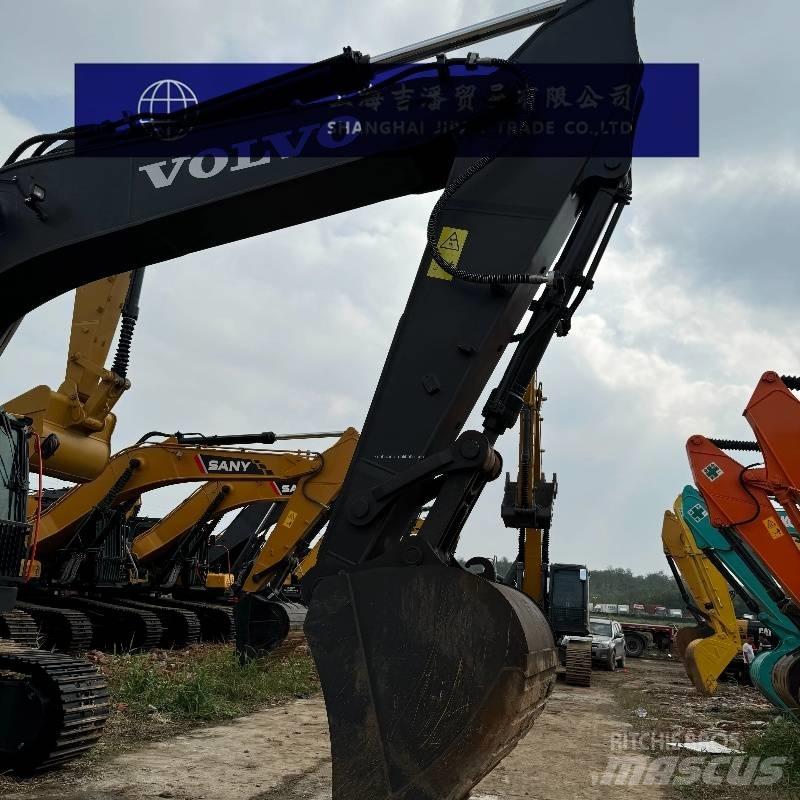

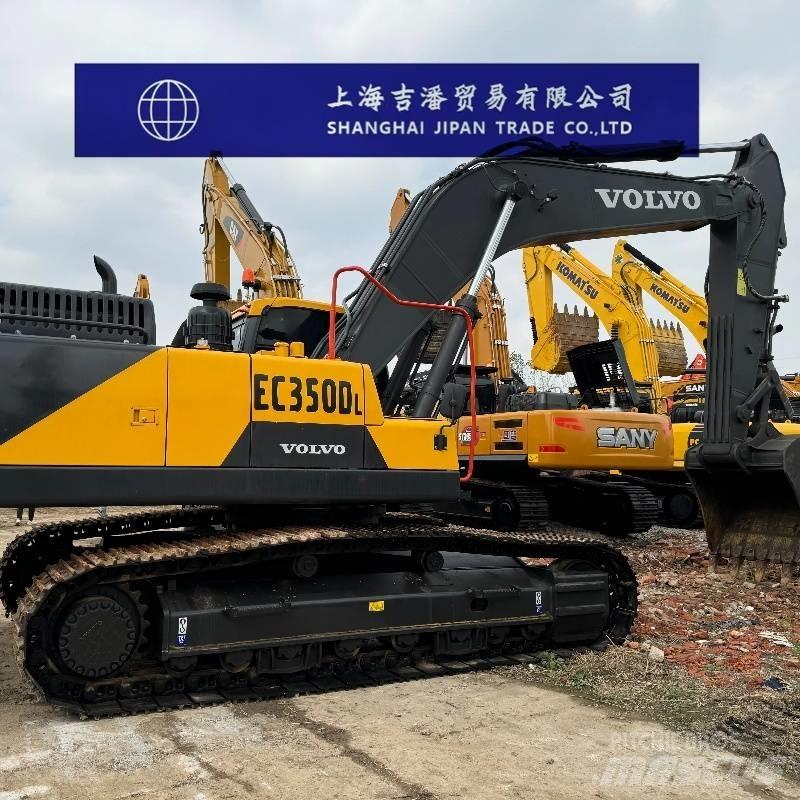

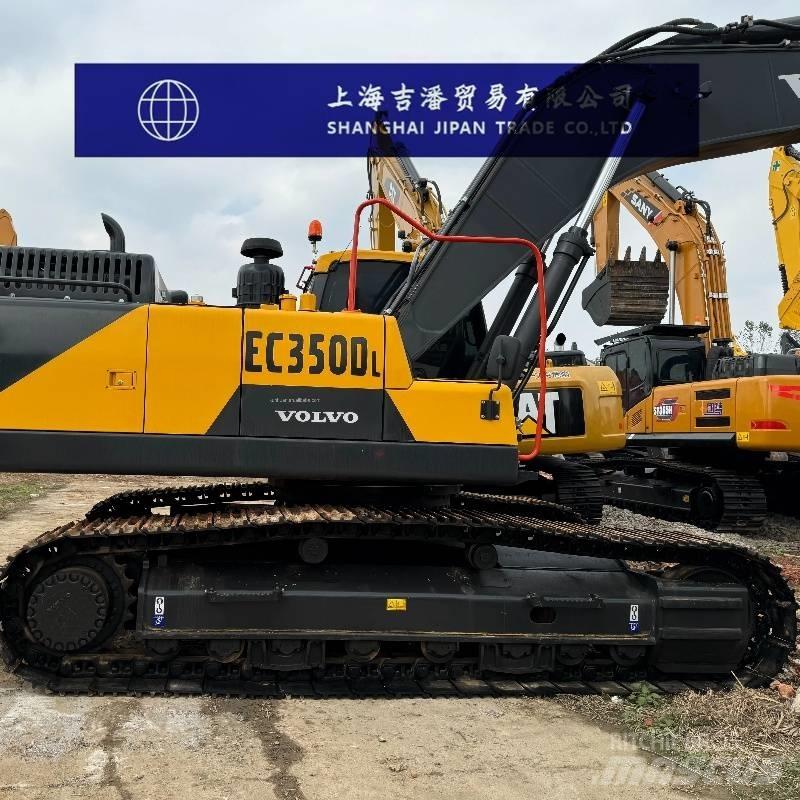

Volvo EC 350

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)35 整机工作重量(kg)34300-38700 铲斗容量(m³)1.0-2.53 原产地韩国 性能 回转速度(rpm)10.3 回转扭矩(Nm)126 行走速度(km/h)3.3/5.1 爬坡能力(%)35° 最大牵引力(kN)261 动力系统 发动机型号Volvo D8K 额定功率(kw/rpm)197/1800 最大扭矩(N.m)1340 排量(L)7.8 缸径×行程(mm)110×138 液压系统 主泵最大流量(l/min)2×288 工作液压油路(Mpa)33.3/36.3 行走液压回路(Mpa)33.3 回转液压回路(Mpa )27.9 控制液压回路(Mpa )3.9 动臂油缸-个数×缸径×行程(mm)2×150×1530 斗杆油缸-个数×缸径×行程(mm)1×170×1700 油类容量 燃油箱(L)580 液压油箱(L)215 液压系统(L)465 发动机油更换量(L)32 冷却液(L )41 主体尺寸 运输总长度(mm)11190 运输总宽度(mm)3190 运输总高度(mm)3230 驾驶室全高(mm)3030 上车宽度(mm)2990 履带接地长度(mm)3700 履带总长度(mm)4630 履带板宽度(mm)600 履带轨距(mm)2590 最小离地间隙(mm )500 配重离地间隙(mm)1180 后端回转半径(mm )4120 作业范围 最大挖掘半径(mm)11110 停机面最大挖掘半径(mm)10900 最大挖掘深度(mm)7480 最大挖掘高度(mm)10330 最大卸载高度(mm)7250 最大垂直挖掘深度(mm)5890
