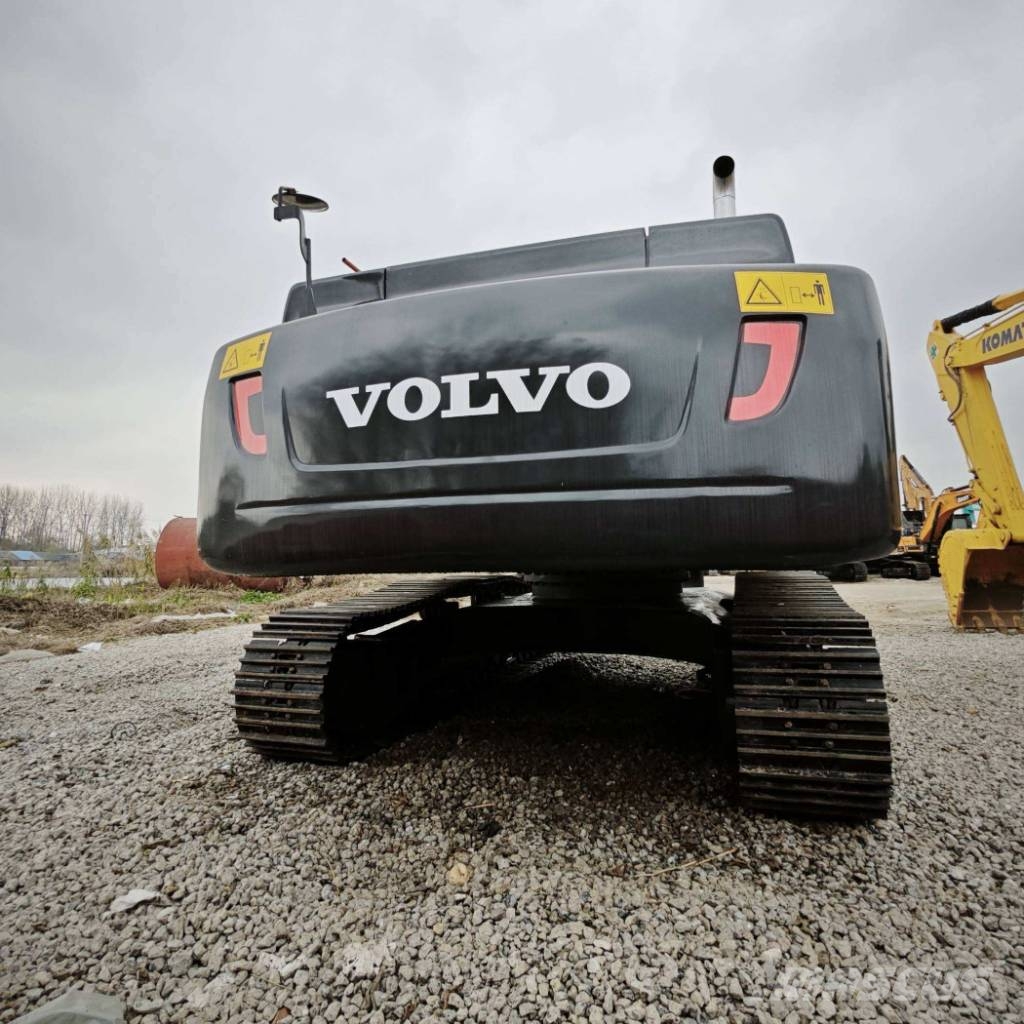

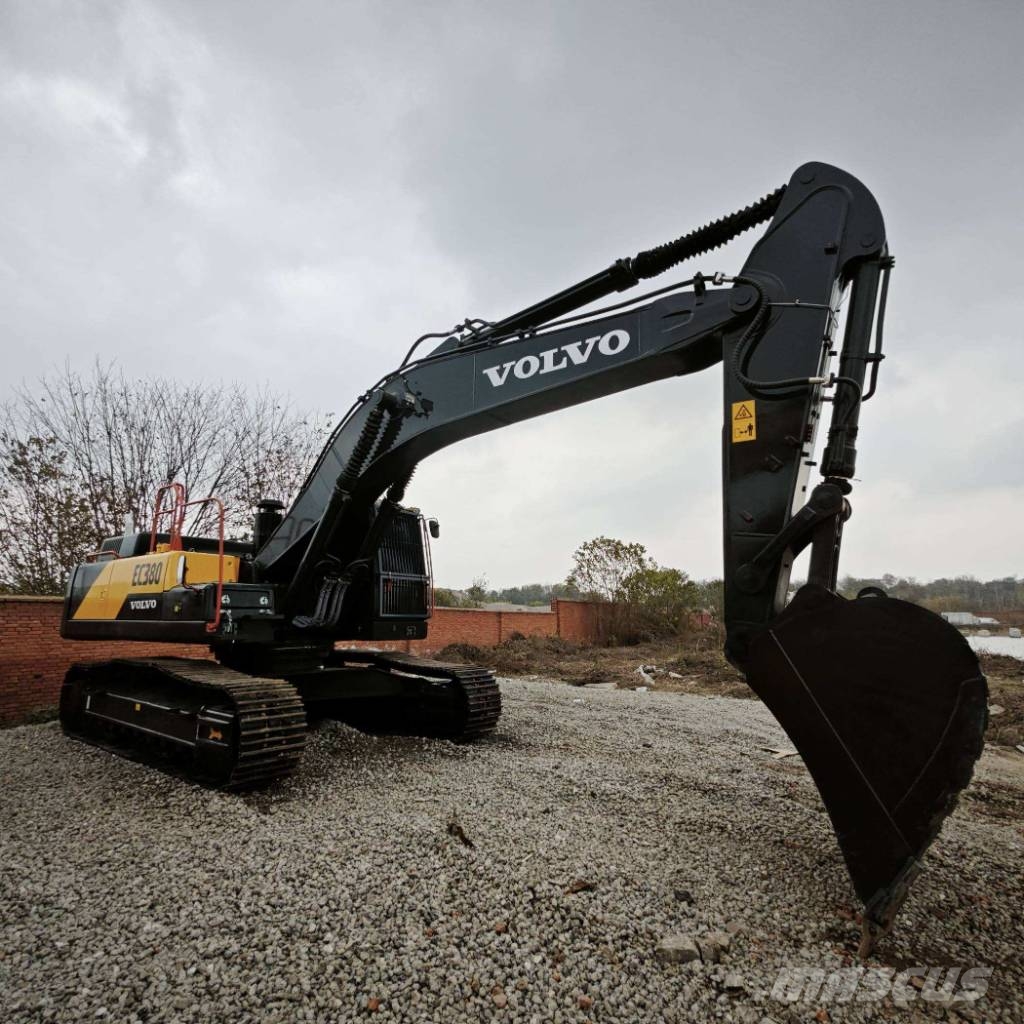

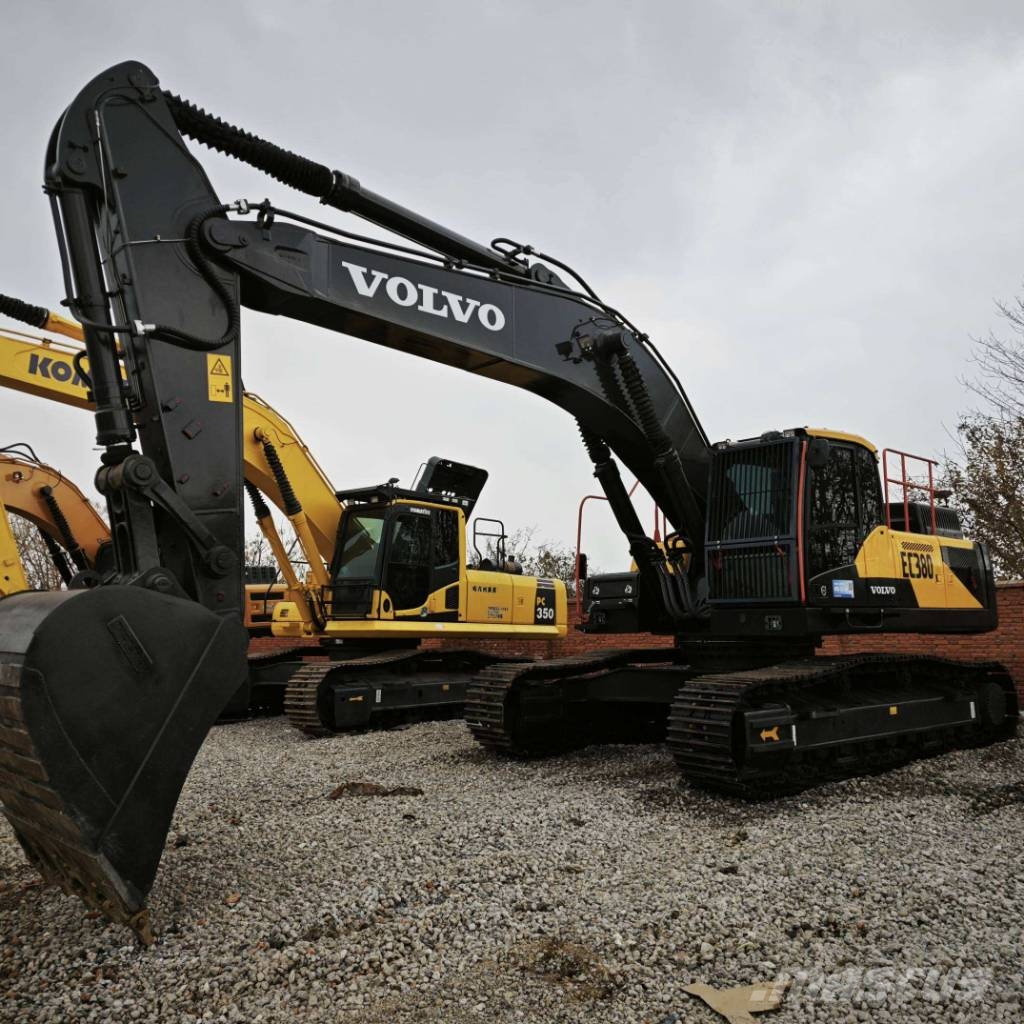

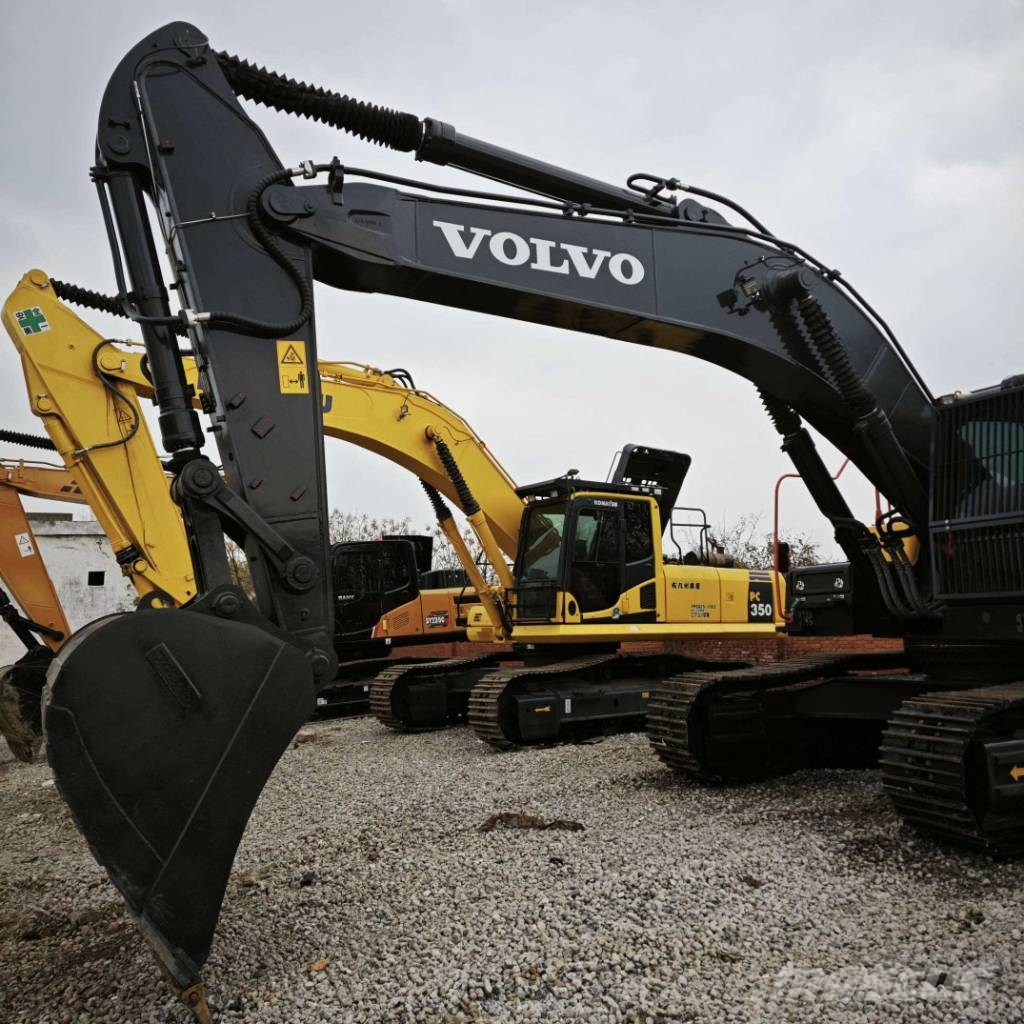

Volvo EC 380

# VOLVO EC380D Crawler Excavator Specifications Model: VOLVO EC380D Operating Weight: 37800 kg Bucket Capacity: 1.6 m³ Transport Dimensions (L×W×H): 11200 × 3340 × 3450 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 5.4 / 3.0 km/h Swing Speed: 9.8 rpm Bucket Digging Force: 198 kN (215 kN with power boost) Arm Digging Force: 141 kN (154 kN with power boost) Max Digging Depth: 8150 mm Max Digging Radius: 11720 mm Max Dumping Height: 7800 mm Max Digging Height: 10730 mm Ground Clearance: 510 mm Ground Pressure: 74 kPa ## Engine Engine Model: Volvo D13F Rated Gross Power: 219 kW /1700 rpm Rated Net Power: 212 kW /1700 rpm Displacement: 12780 cc Cylinders: 6 in-line, water-cooled diesel, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 620 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system with summation circuit Main Pump Max Flow: 600 L/min Max Working Pressure: 35.3 MPa
