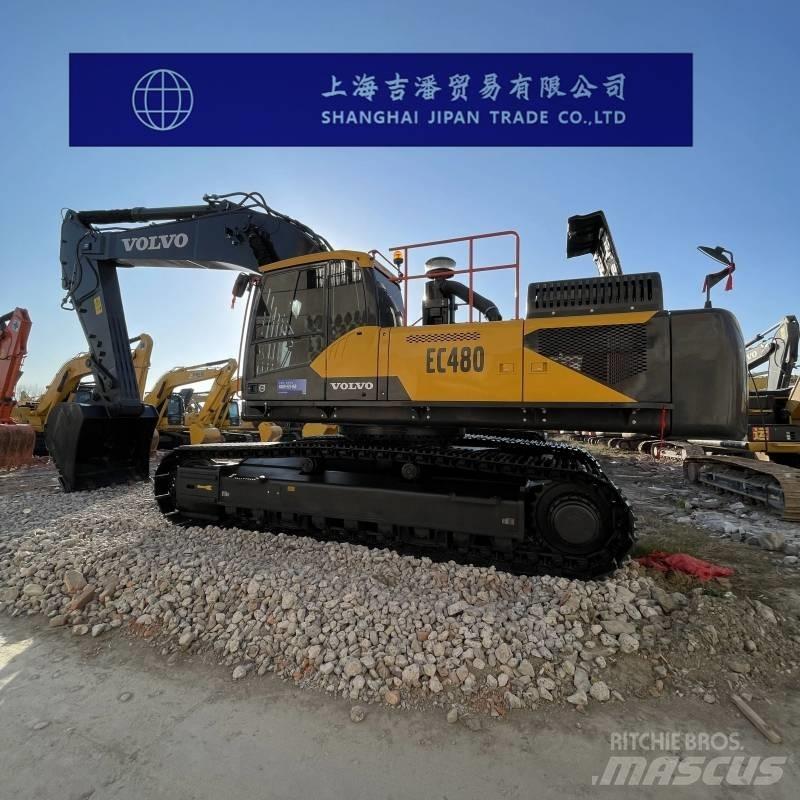

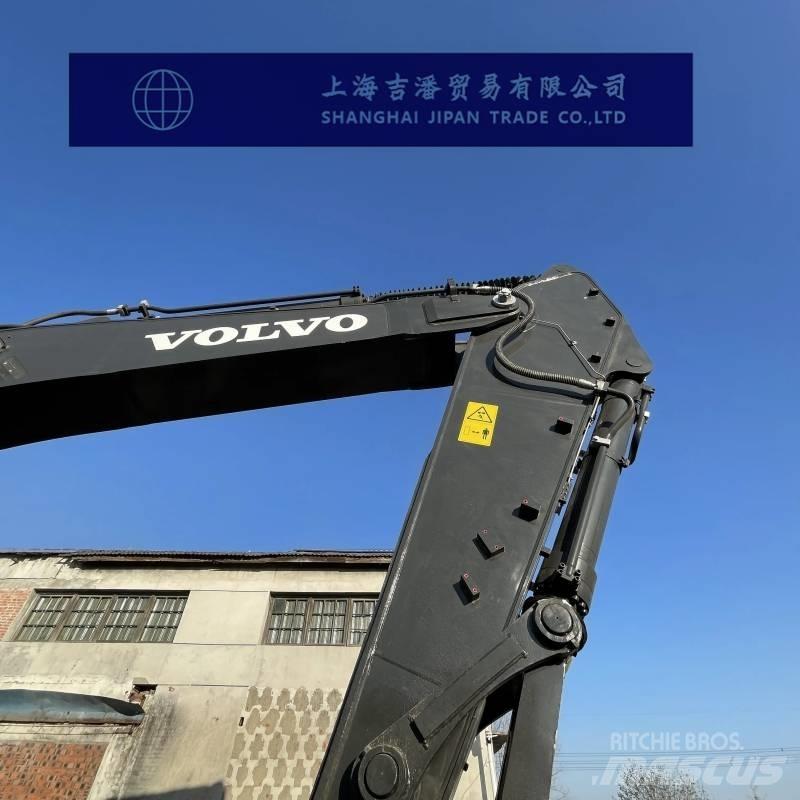

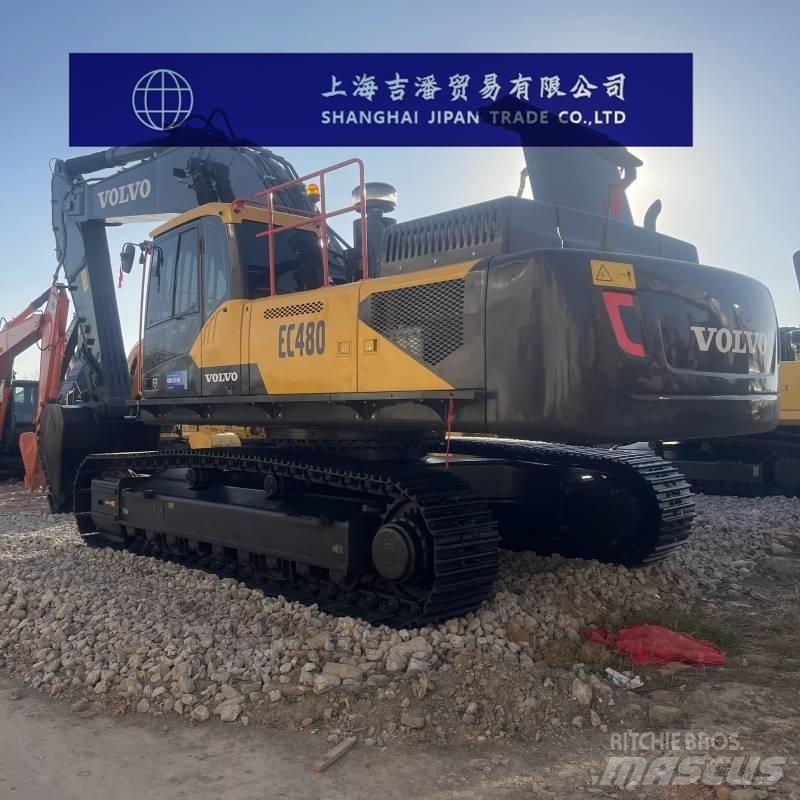

Volvo EC 480

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)48 整机工作重量(kg)47,300~53,100 铲斗容量(m³)1.77 - 3.8 性能 回转速度(rpm)8.8 回转扭矩(Nm)166.3 行走速度(km/h)3.1 / 5.1 最大牵引力(kN)330 动力系统 发动机型号D13F 额定功率(kw/rpm)270/1800 最大扭矩(N.m)1800 / 1400 排量(L)12.8 气缸数(个)6 缸径×行程(mm)131×158 液压系统 主泵最大流量(l/min)2 x 358 先导泵流量(L/min)1 x 32 先导油路(MPa)3.9 行走液压回路(Mpa)32.4 回转液压回路(Mpa )25.8 动臂油缸-个数×缸径×行程(mm)2*165 X 1,590 斗杆油缸-个数×缸径×行程(mm)1*190 x 1,850 铲斗油缸-个数×缸径×行程(mm)1*165 x 1,330 油类容量 燃油箱(L)685 液压油箱(L)270 液压系统(L)520 发动机油更换量(L)42 冷却液(L )60 主体尺寸 运输总长度(mm)11630 运输总宽度(mm)3340 驾驶室全高(mm)3257 上车宽度(mm)2990 履带接地长度(mm)4370 履带总长度(mm)5370 履带板宽度(mm)600 履带轨距(mm)2740 配重离地间隙(mm)1275 最小离地间隙(mm )550 后端回转半径(mm )3880 托链轮数（单侧）(个)2 履带板数量（单侧）(个)52 支重轮数（单侧）(个)9 作业范围 最大挖掘半径(mm)10930 停机面最大挖掘半径(mm)10680 最大挖掘深度(mm)6580 最大挖掘高度(mm)10600 最大卸载高度(mm)6970 最大垂直挖掘深度(mm)5990
