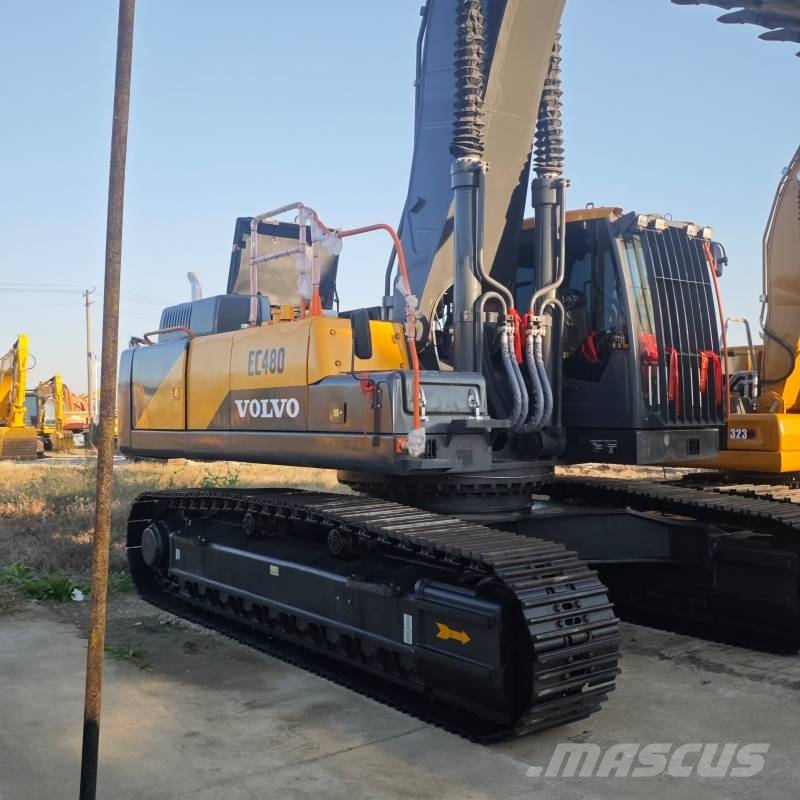

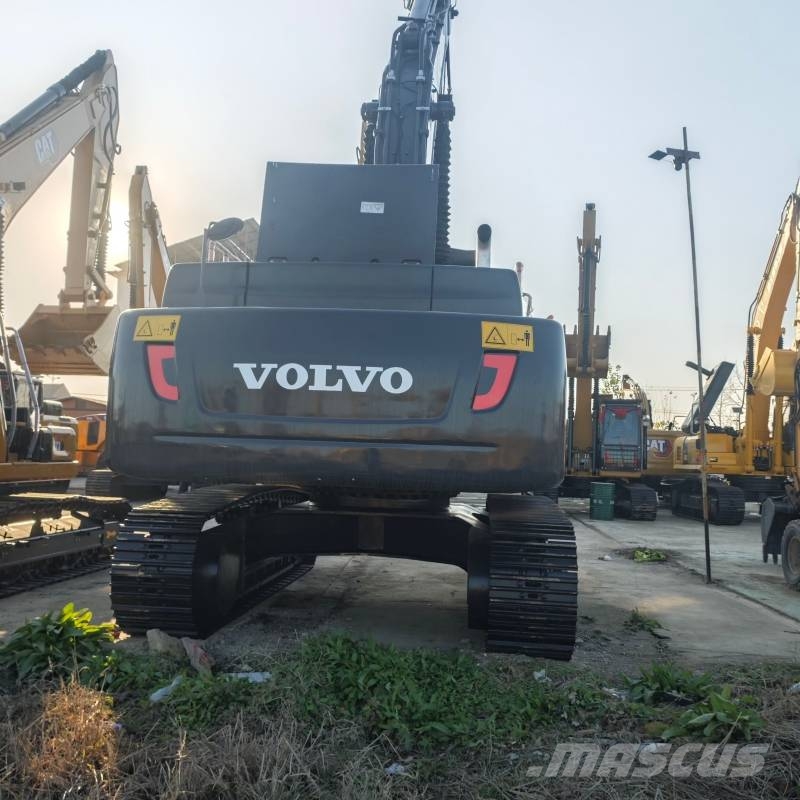

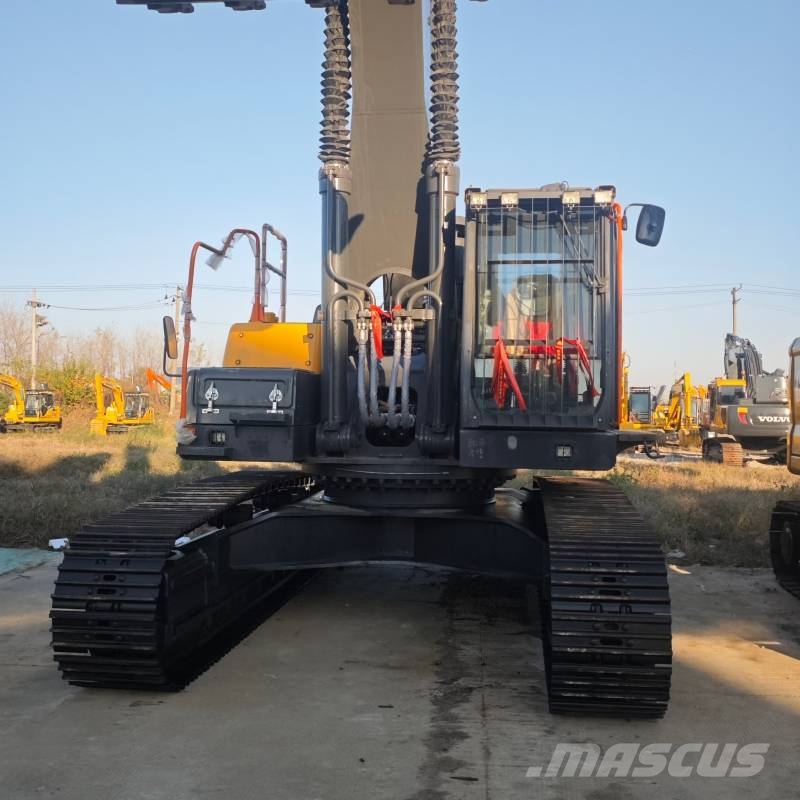

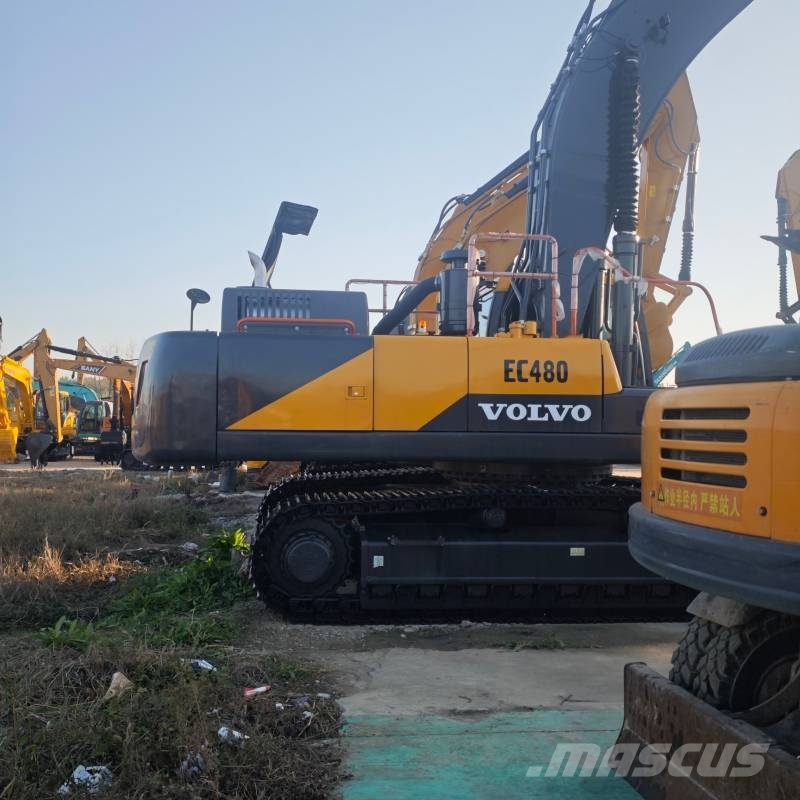

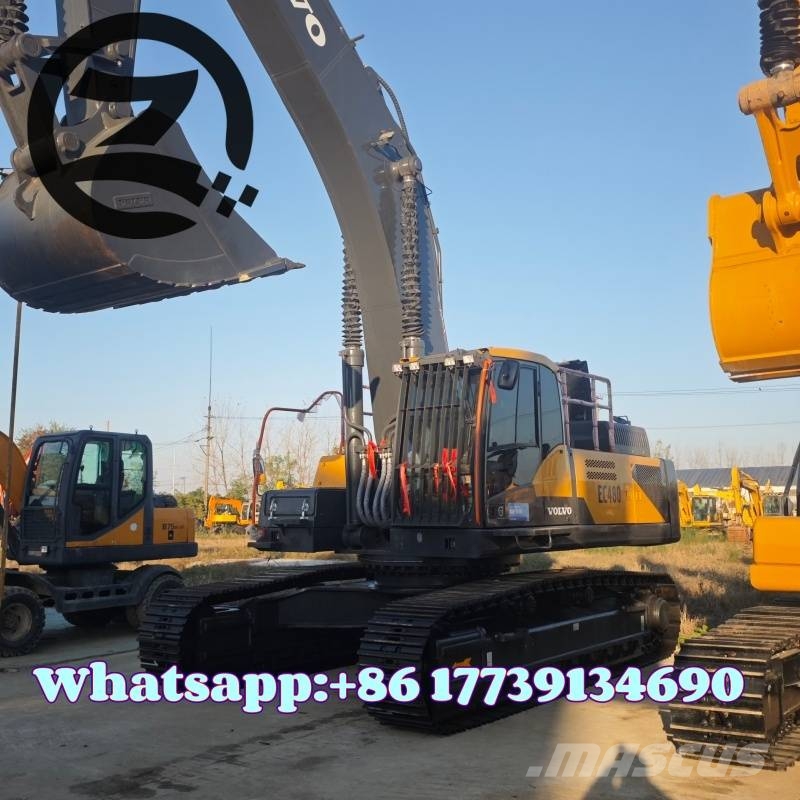

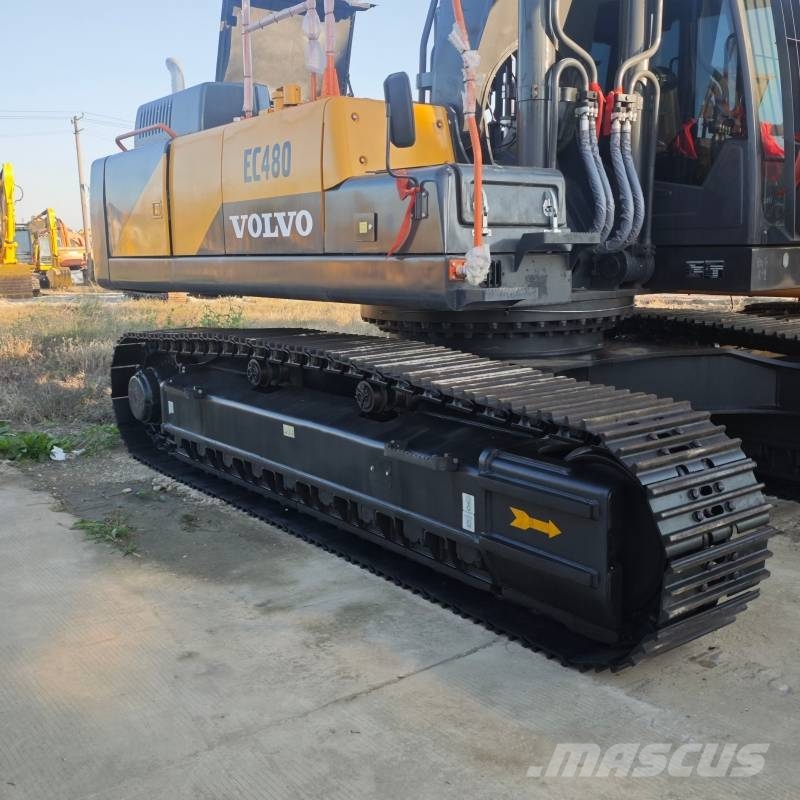

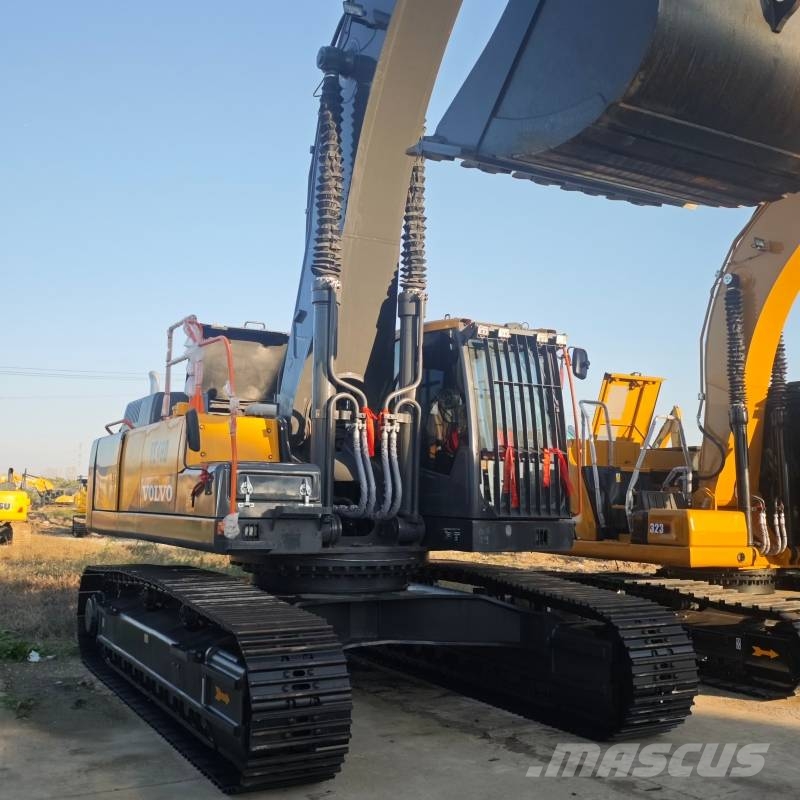

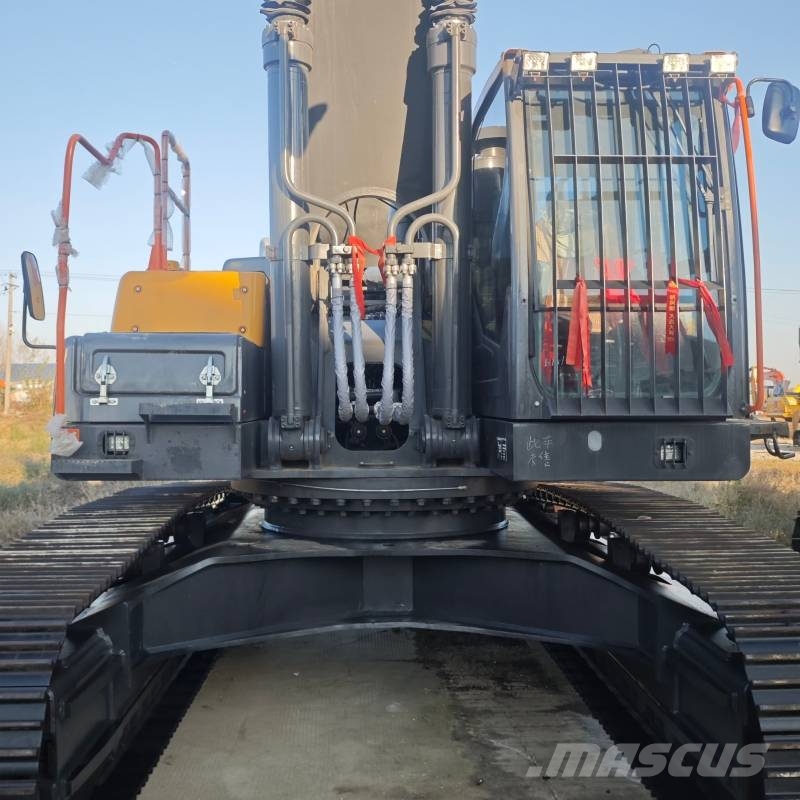

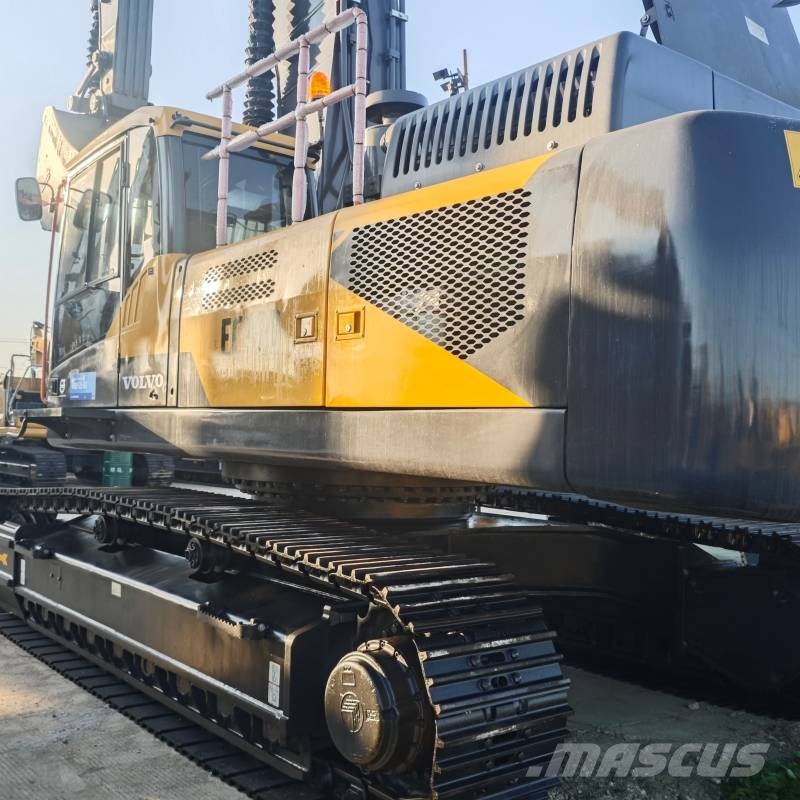

Volvo EC 480

# VOLVO EC480D Crawler Excavator Specifications Model: VOLVO EC480D Operating Weight: 48160 kg Bucket Capacity: 2.6 m³ Transport Dimensions (L×W×H): 11980 × 3440 × 3525 mm Track Shoe Width: 600 mm Travel Speed (High/Low): 5.1 / 3.1 km/h Swing Speed: 8.9 rpm Bucket Digging Force: 284 kN (310 kN with power boost) Arm Digging Force: 235 kN (256 kN with power boost) Max Digging Depth: 7370 mm Max Digging Radius: 11820 mm Max Dumping Height: 7480 mm Max Digging Height: 10910 mm Ground Clearance: 510 mm Ground Pressure: 83 kPa ## Engine Engine Model: Volvo D13F Rated Gross Power: 270 kW /1800 rpm Rated Net Power: 268 kW /1800 rpm Displacement: 12780 cc Cylinders: 6 in-line, water-cooled diesel, turbocharged with intercooler Emission Standard: EU Stage IIIA Fuel Tank Capacity: 680 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 710 L/min Max Working Pressure: 32.4 MPa
