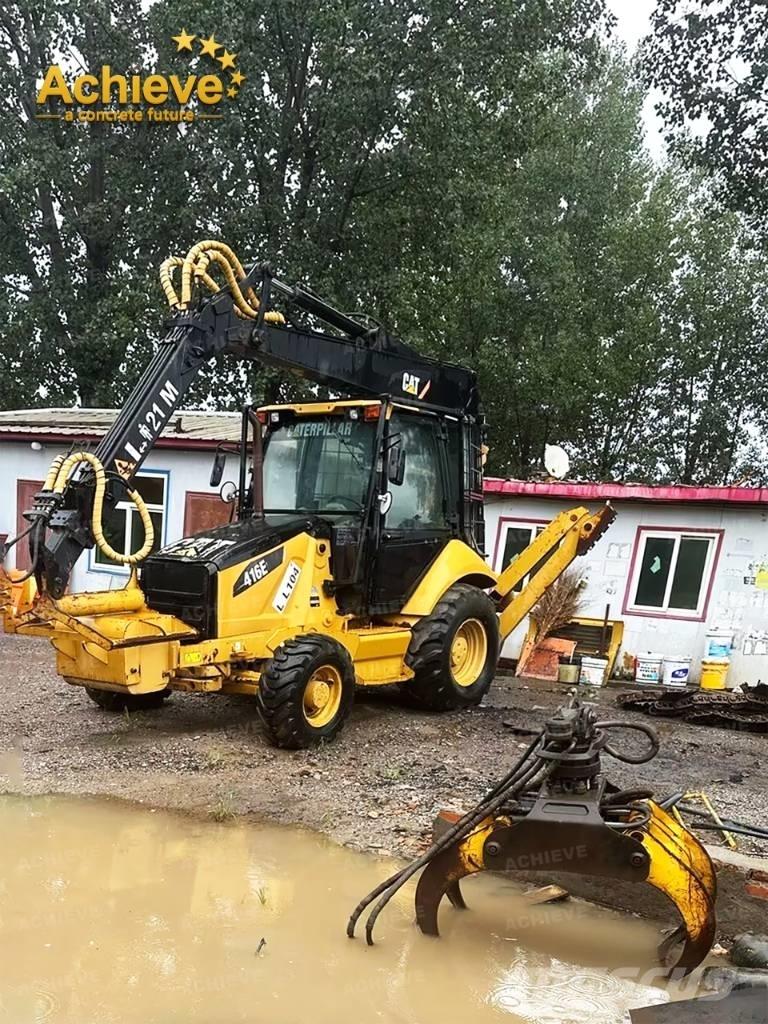

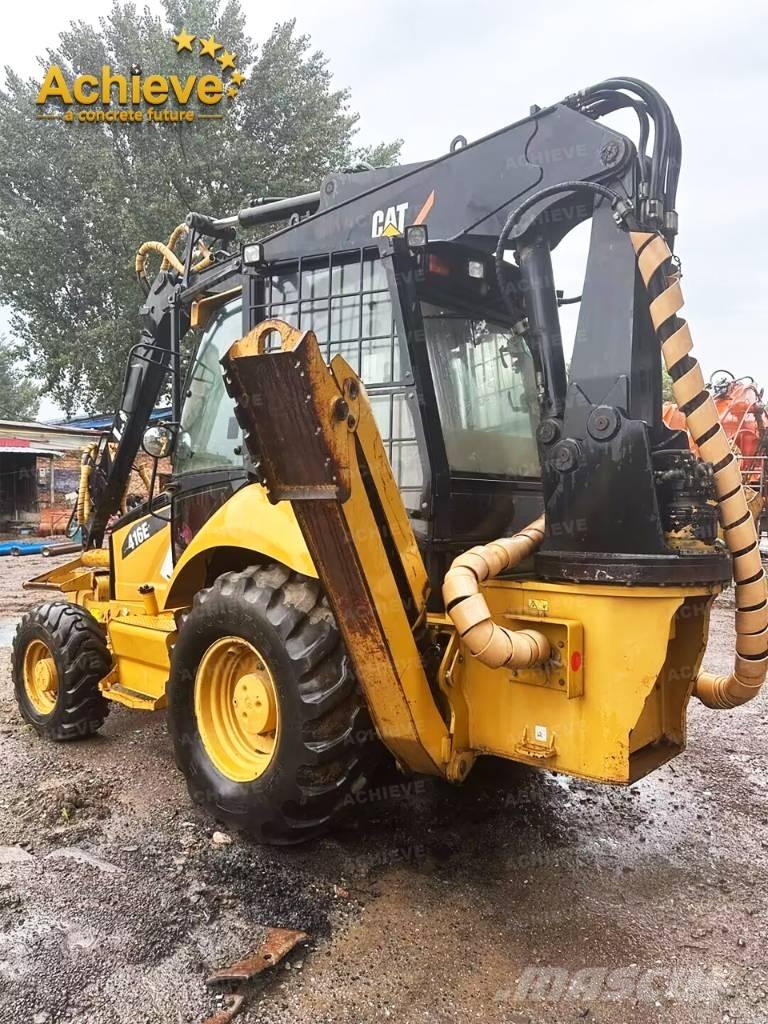

CAT 416 E

416E Backhoe Loader Overview With a more comfortable operator station, new extendible stick design and increased performance, the 416E lets you get more done with less effort. Engine Net Power - SAE J1349 55.00 kW Engine Model (Standard) Cat® 3054C DINA Gross Power - SAE J1995 58.00 kW Net Power - ISO 9249 56.00 kW Gross Power - ISO 14396 56.00 kW Net Power - EEC 80/1269 56.00 kW Engine Model - Optional Cat® 3054C DIT Gross Power - Optional - SAE J1995 69.00 kW Gross Power - Optional - ISO 14396 68.00 kW Net Power (Optional) - SAE J1349 66.00 kW Net Power (Optional) - ISO 9249 67.00 kW Net Power (Optional) - EEC 80/1269 67.00 kW Bore 105.00 mm Stroke 127.00 mm Displacement 4.40 L Net Torque Rise - 1,400 rpm - Standard 27.00 % Net Torque Rise - 1,400 rpm - Optional 37.00 % Net Peak Torque @ 1400 rpm - Standard - SAE J1349 296.00 N·m Net Peak Torque - 1400 rpm - Optional - SAE J1349 386.00 N·m Backhoe Dig Depth - Standard 4360.00 mm Dig Depth - E-Stick Retracted 4402.00 mm Dig Depth - E-Stick Extended 5456.00 mm Reach from Swing Pivot - Standard 5618.00 mm Reach from Swing Pivot - E-Stick Retracted 5657.00 mm Reach from Swing Pivot - E-Stick Extended 6666.00 mm Bucket Rotation 205.00 ° Bucket Dig Force - Standard 51.80 kN Bucket Dig Force - E-Stick Retracted 51.10 kN Bucket Dig Force - E-Stick Extended 51.10 kN Stick Dig Force - Standard 31.80 kN Stick Dig Force - E-Stick Retracted 31.80 kN Stick Dig Force - E-Stick Extended 23.40 kN Stick Lift at 2440 mm (8 ft) - Standard 2321.00 kg Stick Lift @ 2440 mm (8 ft) - E-Stick Retracted 2112.00 kg Stick Lift @ 2440 mm (8 ft) - E-Stick Extended 1323.00 kg Loading Height - Standard 3636.00 mm Loading Height - E-Stick Retracted 3577.00 mm Loading Height - E-Stick Extended 4145.00 mm Loading Reach - Standard 1768.00 mm Loading Reach - E-Stick Retracted 1868.00 mm Loading Reach - E-Stick Extended 2771.00 mm Weights Operating Weight - Maximum 10200.00 kg Operating Weight - Nominal 6792.00 kg Cab, ROPS/FOPS 220.00 kg Ride Control 22.00 kg Four Wheel Drive 155.00 kg MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 884.00 kg MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 714.00 kg Air Conditioning 38.00 kg Four Wheel Drive 155.00 kg Counterweights (Option 1) 116.00 kg Counterweights (Option 2) 231.00 kg Counterweights (Option 3) 488.00 kg Loader Bucket Capacity - General Purpose 0.76 m3 Bucket Width - General Purpose 2262.00 mm Dump Height at Maximum Angle - Single Tilt 2651.00 mm Dump Reach at Maximum Angle - Single Tilt 772.00 mm Dig Depth - Single Tilt 106.00 mm Lift Capacity at Full Height - Single Tilt 2547.00 kg Bucket Breakout Force - Single Tilt 40.90 kN Hydraulic System Circuit Type Load-sensing, closed center Pump Capacity (@ 2200 rpm) 132.00 L/min System Pressure 22700.00 kPa Pump Type Variable-flow, axial piston Steering Type Front wheel Power Steering Hydrostatic 2WD Cylinder - Bore 65.00 mm 2WD Cylinder - Stroke 120.00 mm 2WD Cylinder - Rod Diameter 36.00 mm 4WD Cylinder - Bore 65.00 mm 4WD Cylinder - Stroke 120.00 mm 4WD Cylinder - Rod Diameter 36.00 mm Brake System Inboard, oil-immersed, multiple disc Power Train Power-Shuttle, Forward 1st 6.00 km/h Power-Shuttle, Forward 2nd 9.50 km/h Power-Shuttle, Forward 3rd 19.80 km/h Power-Shuttle, Forward 4th 39.90 km/h Power-Shuttle, Reverse 1st 6.00 km/h Power-Shuttle, Reverse 2nd 9.50 km/h Power-Shuttle, Reverse 3rd 19.80 km/h Power-Shuttle, Reverse 4th 39.90 km/h Operating Specifications - Backhoe Turning Circle - Outside - Front Wheels 8.16 m Turning Circle - Outside, Widest Loading Bucket 10.74 m Axle Ratings Front Axle (2WD) - Static 22964.00 kg Front Axle (2WD) - Dynamic 9186.00 kg Front Axle, 4WD, Static 22964.00 kg Front Axle (4WD) - Dynamic 9186.00 kg Rear Axle, Static 22964.00 kg Rear Axle - Dynamic 9186.00 kg Service Refills Cooling System, A/C 15.90 L Cooling System, High-Ambient 16.70 L Fuel Tank 144.00 L Engine Oil w/Filter 7.60 L Service Refill Transmission - Torque Converter - Power Shuttle - 2WD 18.50 l Se
