Deister 8x20

Cena brez DDV

Compnay LOGO
Images5
Deister 8x20 Sita
Deister 8x20 Sita
Deister 8x20 Sita
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Sita
Znamka /model
Deister 8x20
Leto izdelave
2021
Delovne ure
24 h
Kraj stroja
Murray, Utah
Država
ZDA
Mascus ID
5AC6E252

CENA

Izberite valuto

PODROBNOSTI

Inventarna št.
NC000752
Serijska številka proizvoda
2005663
Drugi podatki

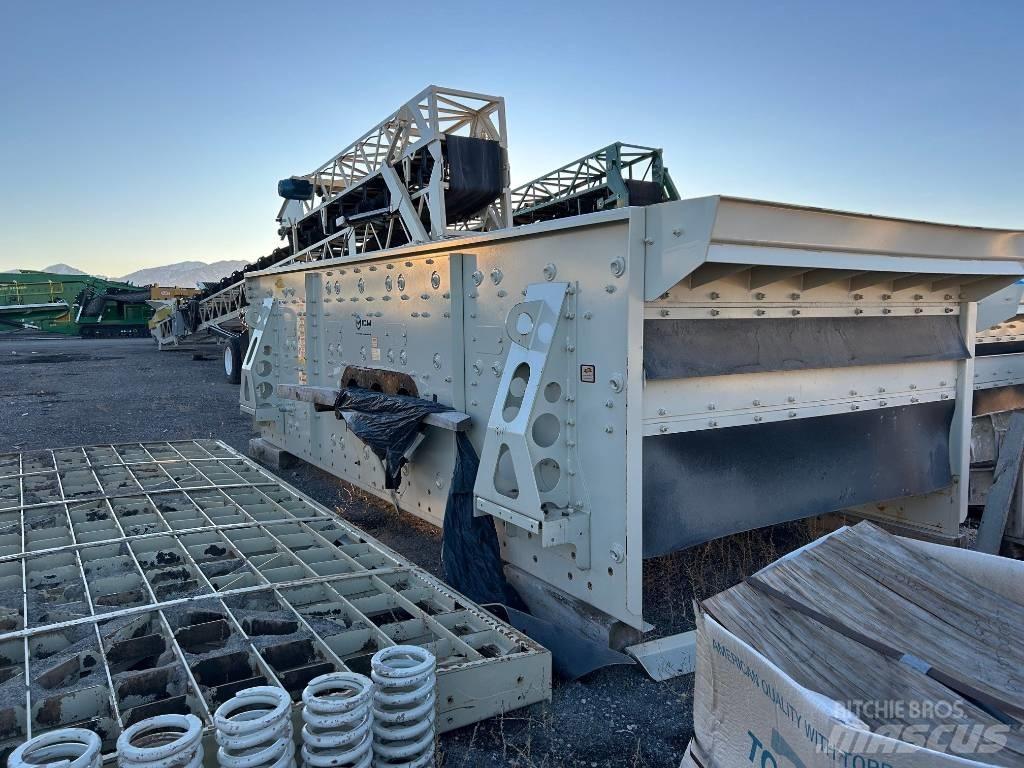

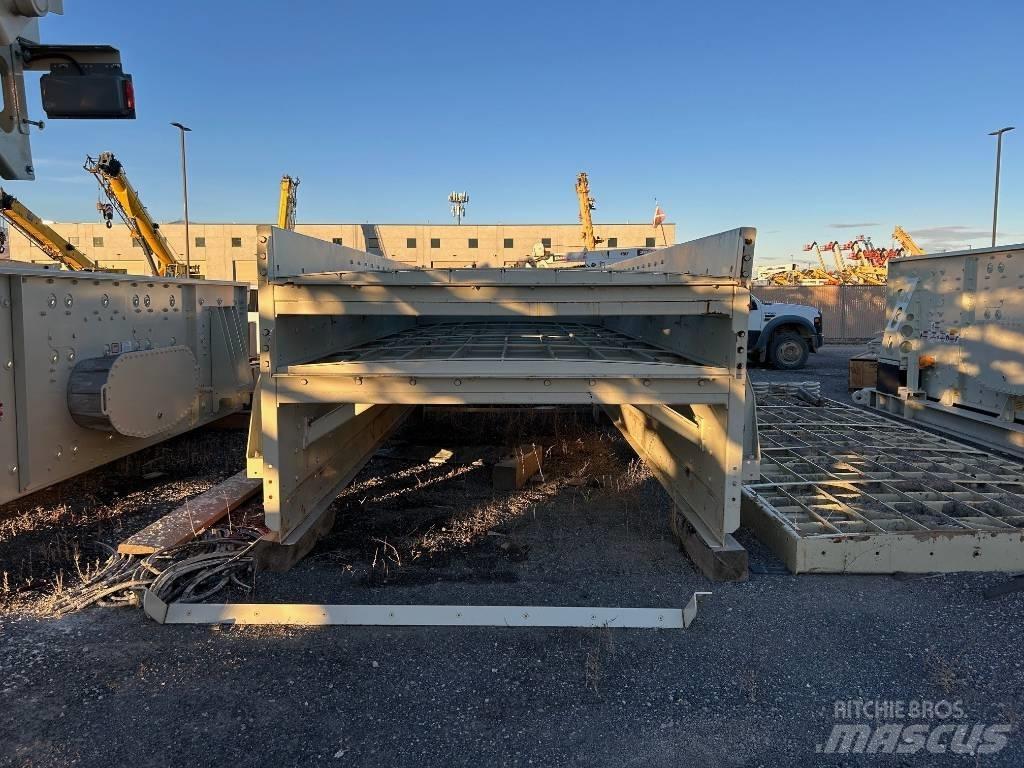

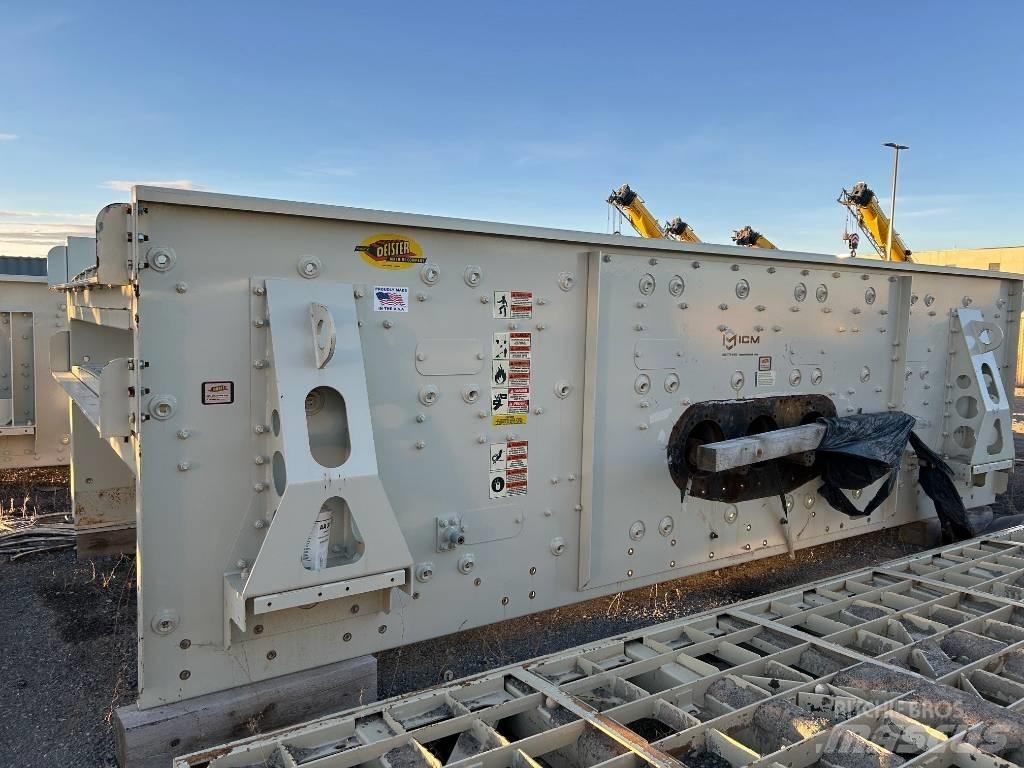

2021 Deister 8x20 3 Deck Horizontal Screen (Type TFM3P-3820) 8X20 3 DECK ONE TYPE TFM3P-3820 1 TRIPLE SHAFTED HORIZONTAL SCREEN 1 VIBRATING FRAME - TRUNNION TYPE 1 SCREEN SUPPORT MOUNT ON EACH 1 CORNER, SNUBBERS (FRICTION CHECK 1 SCREEN 1/4 THICK HSLA STEEL SIDEPLATES 1 FORMED ALONG THE TOP AND BOTTOM 1 WITH 5/16" THICK FORMED HSLA 1 STEEL REINFORCING PLATES BOLTED 1 TO SIDEPLATES BETWEEN BEARING 1 HOUSING AND SIDEPLATES 1 ACCESS PORTS WITH COVER PLATES 1 REMOVABLE BACK PLATES, RUBBER 1 FLAP AND STEEL COMBO 1 SCREEN MEDIA SUPPORT PANEL 1 TOP DECK - SCREEN CLOTH SUPPORT 1 MID DECK - SCREEN CLOTH SUPPORT 1 BOT DECK - SCREEN CLOTH SUPPORT 1 4" LONG DISCHARGE LIPS PROTECTED 1 BY 1/4 THICK AR STEEL REPLACE 1 ABLE WEAR PLATES 1 TENSION PLATES (SKIRTBOARDS) 1 DEISTER HEAVY DUTY TENSION 1 SCREEN CLOTH TENSIONS DEVICE 1 FEED BOX WITH 1/4" AR STEEL 1 REPLACEABLE WEAR PLATE IN THE 1 BOTTOM 1 TRIPLE SHAFT GEAR TYP VIBRATING 1 MECHANISM LOCATED BETWEEN THE 1 MIDDLE AND BOTTOM DECKS WITH 1 120 MM SPHERICAL ROLLER BEARINGS 1 STEEL FLANGED VIBRATING TUBES 1 BOLTED TO THE SIDEPLATES 1 OIL FILL AND DRAIN PLUGS AND 1 THE OIL LEVEL GUAGES LOCATED 1 ACCENTRIC ON THE OUTSIDE SURFACE OF THE 1 VIBRATING MECHANISM END COVERS 1 PLATE 1 DEISTER SLINGER MIST OIL BATH 1 LUBE SYSTEM, 3.5 GALLONS OF OIL 1 SERVICE AT 500 HOURS 1 VIBE MECHANISM TUBE IS PROTECTED 1 BY A 3/8" THICK STEEL BACKED 1 RUBBER SHEILD TACK WELDED TO THE 1 TUBE 1 ECCENTRIC SHAFTS WITH ADJUSTABLE 1 WEIGHTS FOR STROKE ADJUSTMENT 1 BRONZE SLEEVE BETWEEN BEARING 1 AND SHAFT 1 DESITER HEAVY DUTY RUBBER TORSIO 1 DRIVE PIVOTED MOTOR BASE, LESS MOTOR 1 SUPPORT, 5V SECTION WIDEBAND 1 V BELT AND MOTOR SHEAVE 1 LESS THE BELT DRIVE GUARD HORIZONTAL TYPE 1 SCREEN 790 RPM 11/16" STROKE SCREEN MOTOR 60 HP 1800RPM ESTIMATED WIEGHT 24300LBS RUBBER FLAP SPRING PROTECTORS SNUBBER GUARDSNaprej
