Tip

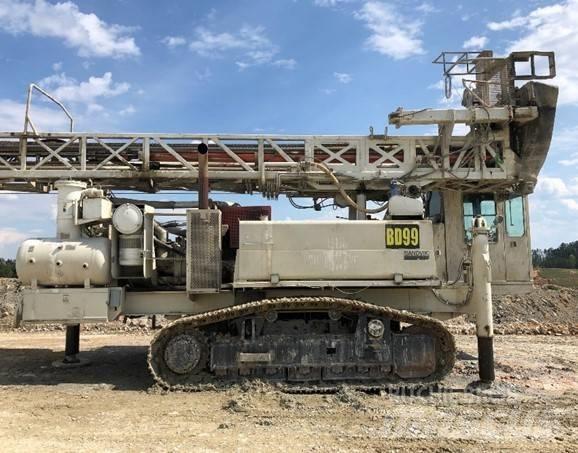

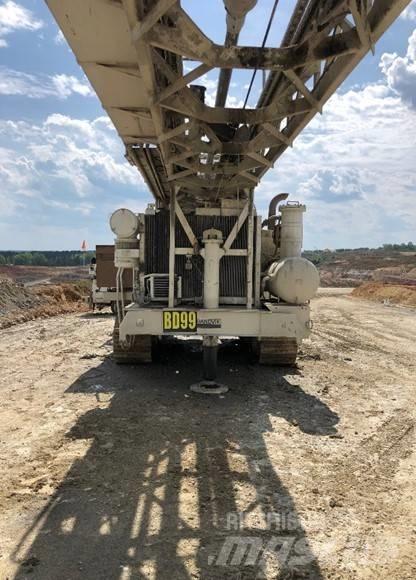

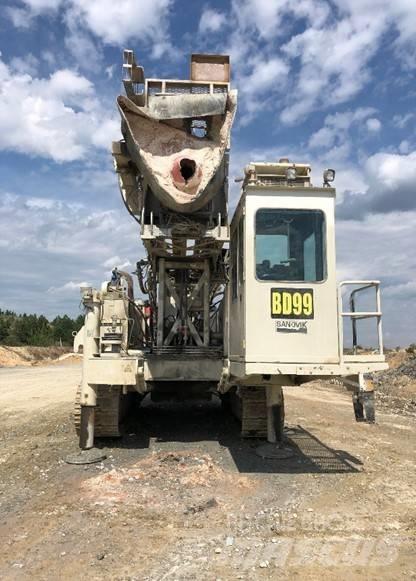

Rotacijski blasthole vrtalnik
Serijska številka proizvoda
732936
Transportna teža
43,545 kg
Transportne dimenzije (DxŠxV)
14200 x 3810 x 5820 mm
Drugi podatki
- 330 class under carriage, 15' 0" (4,57 m) long, 29.5" (750 mm) pads
- 292 gallon (1105 l) fuel tank
- Coolers for up to 130°F (54°C) ambient temperature
- Rotary head speed 0-126 RPM, torque 87921 in-lb (9934 Nm)
- Bullshaft with 3.5" API Reg Box thread
- Loader inside mast, 30' (9,14 m) drill pipe, 4 1/2" - 7" (115 to 178 mm) OD
- Heavy-duty pulldown chains
- Three leveling jacks, 48" (1,2 m) stroke, 24" (610 mm) pads
- Auxiliary winch 4000 lb (18 kN) capacity, 100' (30,5 m) cable
- Two-man cab, air-conditioned, heated, - Service walkway cab side
- Night lights, six 70 Watt - Color White
- Air volume control for high-pressure compressor
- Water injection 9 GPM 400-gallon tank (not with dust collector)
- Heavy-duty head 5.5" API Box (recommended with 350 psi air)
- Angle drilling 0°-30° in 5° increments with loader booster, - Extended mast, 36' (11 m) single pass, with standard loader
- Auto tong group
- Pipe thread greaser operated from inside cab
- Air line lubricator, 30-gallon (114 L) reservoir
- Central lube system, manual via central point
- Fluids service center, fill, and evacuation
- 24 Volt to 12 Volt converter
- Feed pressure control override (recommended for 350 psi)
- 50-hour maintenance kit - Parts, Service, Operator, and Engine Parts manuals (one each)Naprej
