Comacchio Wiertnica COMACCHIO MC 305, rdzeniowanie, pompy ci

Cena brez DDV

Compnay LOGO
Images30
Comacchio Wiertnica COMACCHIO MC 305, rdzeniowanie, pompy ci Težki vrtalni stroji
Comacchio Wiertnica COMACCHIO MC 305, rdzeniowanie, pompy ci Težki vrtalni stroji
Comacchio Wiertnica COMACCHIO MC 305, rdzeniowanie, pompy ci Težki vrtalni stroji
FavoritePriljubljena
shareDelež
Save searchShrani iskanje
Natisni

INFORMACIJE

Kategorija stroja / vozila
Težki vrtalni stroji
Znamka /model
Comacchio Wiertnica COMACCHIO MC 305, rdzeniowanie, pompy ci
Leto izdelave
2013

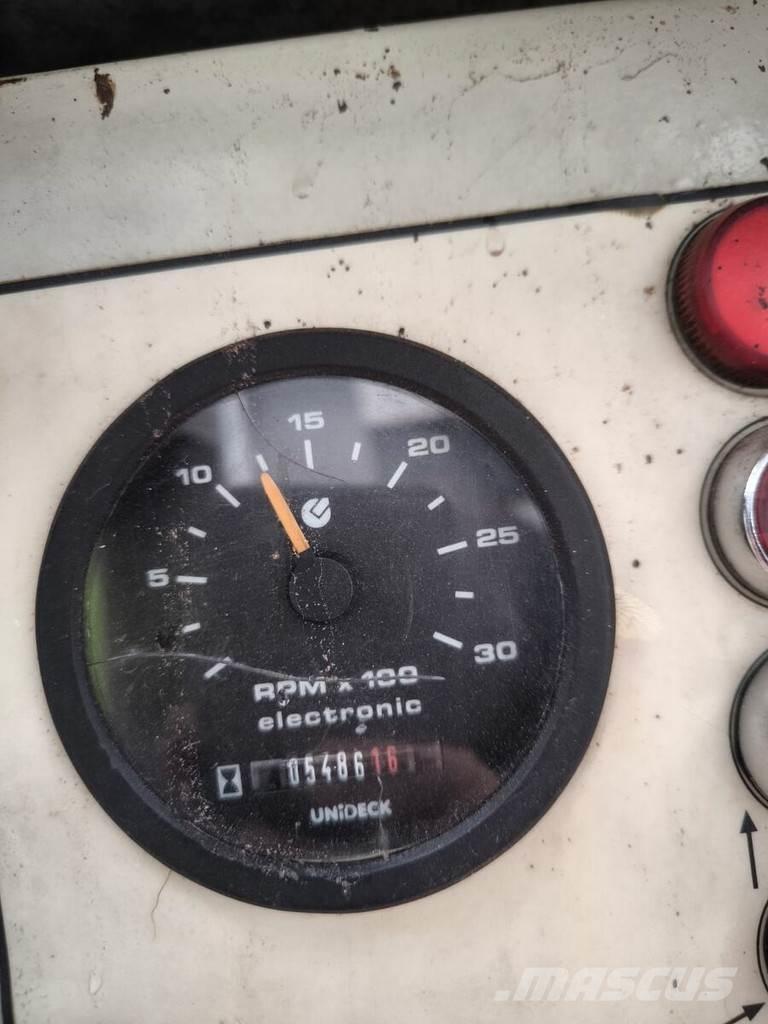

Delovne ure
5,484 h
Kraj stroja
Lublin
Država
Poljska
Mascus ID
EF942948

CENA

Izberite valuto

PODROBNOSTI

Engine manufacturer
Hatz
Transportna teža
2,650 kg
Transportne dimenzije (DxŠxV)
4500 x 2350 x 1500 mm
Drugi podatki

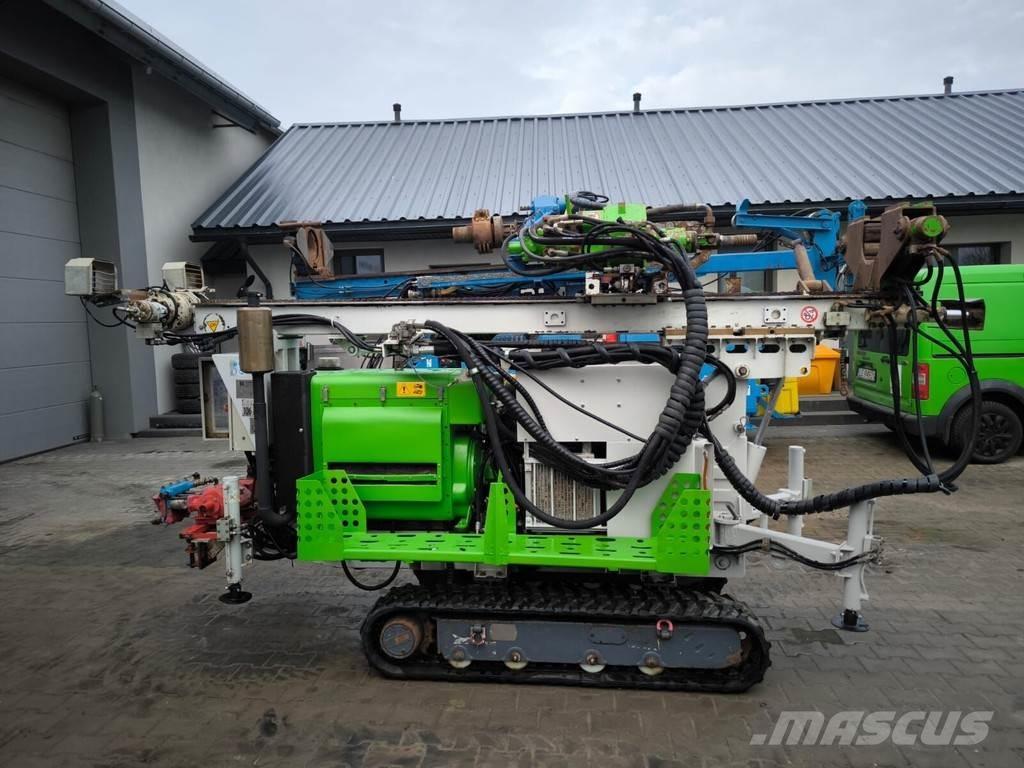

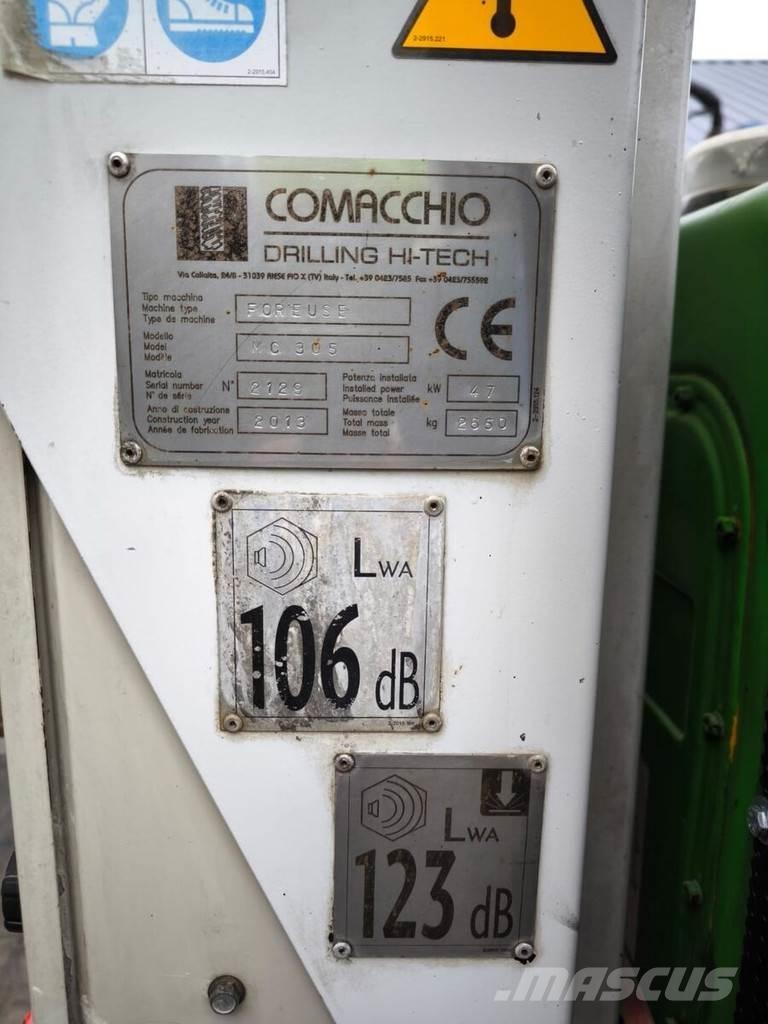

Drill rig COMACCHIO MC 305, core drilling, water wells, geothermal, multipurpose rig Ref. no.: SP_W_12 Type: Drilling rig Brand: COMACCHIO Model: MC 305 Serial number: 2129 Counter: 5484 mth Manufactured: 2013 Power: 64 HP Dimensions L/H/W: 4.50/2.35/1.50 The GEO 305 multi-purpose drilling rig can be used in various types of drilling work, e.g. geotechnical probing, coring, drilling of heat pumps and wells, and drilling of vertical micropiles. TECHNICAL DATA • Total weight: 2,650 kg • Maximum pressing force: 2,500 daN • Maximum pulling force: 2,500 daN • Maximum gradeability: 15 degrees (27%) HYDRAULIC SYSTEM • Diesel engine type: HATZ 4 cyl. • Diesel engine power: 64 HP • Electrical equipment voltage: 12V • Maximum operating pressure: 300 bar MAST • Stroke length: 2400 mm • Total length: 4500 mm GRAPPLE • Minimum gripping diameter: 45 mm • Maximum gripping diameter: 220 mm • Clamping force: 7000 daN ROTARY HEAD • Manufacturer: Comacchio • Model: R 350 • Weight: 190 kg • Torque: 310 daNm • Rotation speed: 50 - 320 rpm • Upper hammer - drifter, impacts: 2700 impacts/min, energy: 180 J • Fluid sleeve passage under the head: 1″ • Head with sliding option FLUSH PUMP • Type: TRIPLEX • Model: BERTHOUD GAMA 130 • Maximum flow: 130 l/min • Maximum pressure: 20 bar PIPE STORAGE • Number of pipes: 25 • Pipe diameter: 54 • Pipe length: 1500 mm • Maximum weight: 350 kg PIPE COVER EXTRACTION CYLINDERS • Cylinder stroke length: 195 mm • Extraction force: 6500 daN – 6.5 tons! FINAL DATA: • Brand: COMACCHIO • Model: MC 305 • Year of manufacture: 2013 • Power: 64 HP • Odometer reading: 5484 mth. • Driving remote control • Safety cage Location: Bogucin 174, 21-080 Bogucin Cross roads S17/DK17entrance JASTKÓW POLAND Office: Aleja Warszawska 131B, 20-824 Lublin Contact person: Mr. Lukasz Swieca Phone: (0048) 695.414.388 = More information = Type: Soil drill Type of fuel: Diesel Colour: Green Power: 47 kW (64 HP) Engine type: Hatz Diesla: HATZ 4 cyl.Naprej

GEO-MACHINERY

Aleja Warszawska 131B 20-824 Lublin Lubelskie Poljska
