GCS 30X60

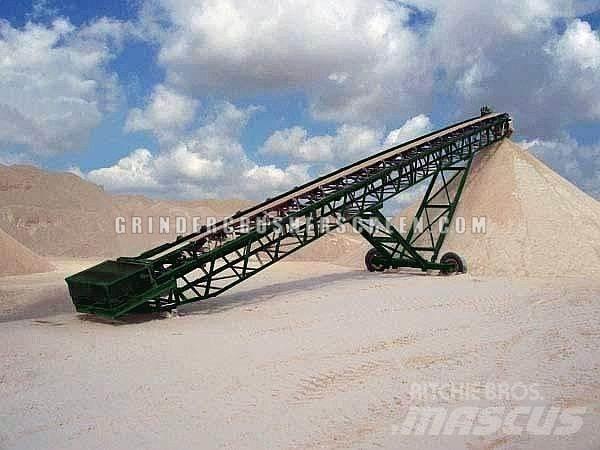

Description: New Pit Portable 36x60'' Radial Stacking Conveyor • Discharge Height: 19' High (18°) - 2 Adjustments • 24 Deep truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice • 6 Pipe Axle, 8-Bolt 16 Tires & Wheels • Lagged head Pulley: 14 Diameter, 2 7/16 Shaft • Winged Tail Pulley: 14 Diameter, 2 7/16 Shaft • 10 hp, TEFC, 1,800 RPM, 230/460 Volt • 5 CEMA B Idlers Options: Catwalk Power Travel Belt Scraper Chevron Belting *Assembly Required Other sizes available including: 24x60, 24x80, 24x100, 24x120, 36x80, 36x100, 48x60, and more
