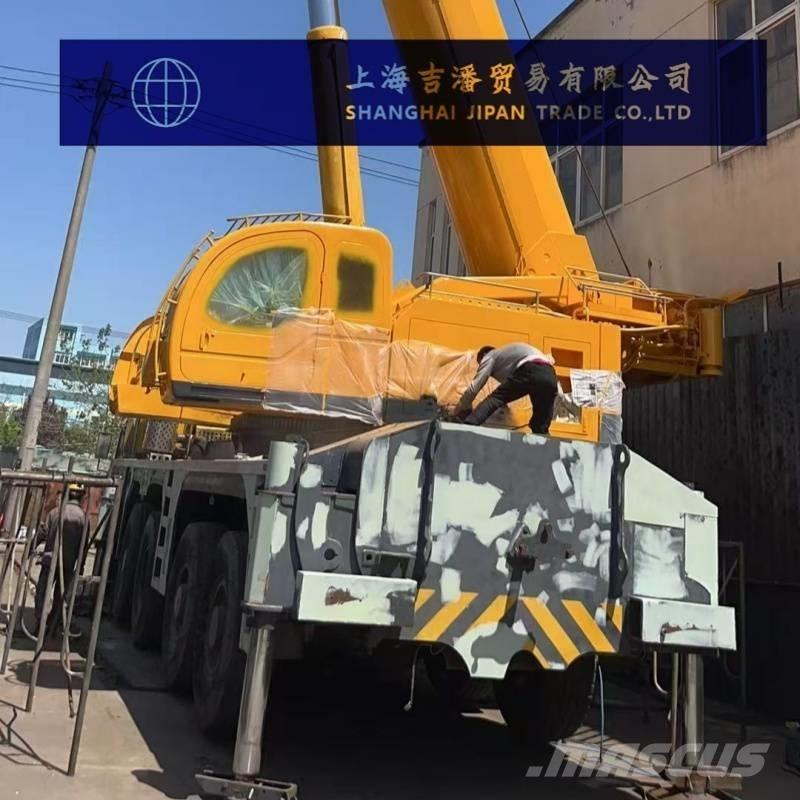

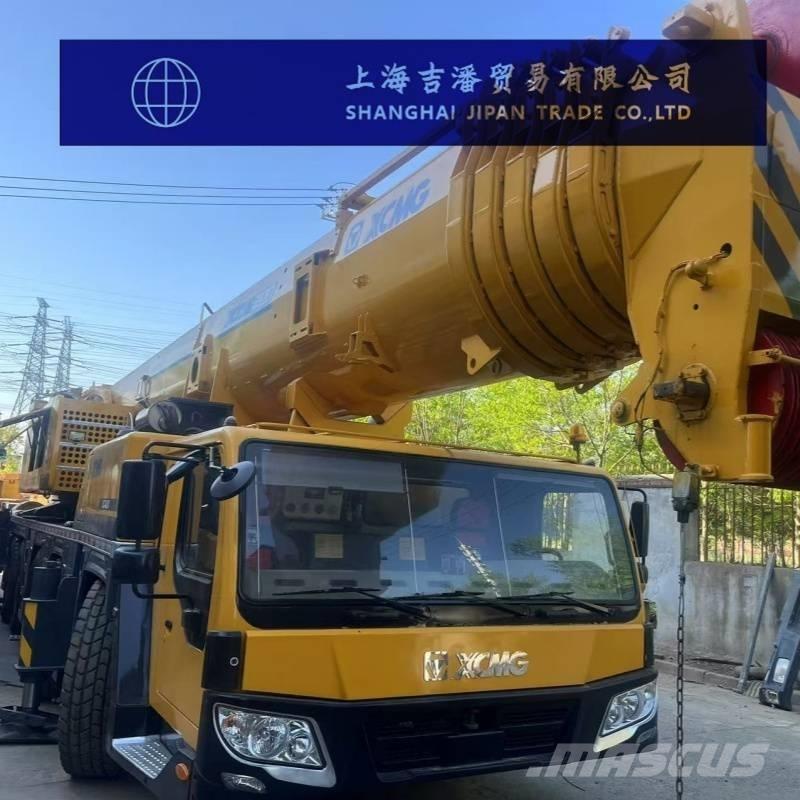

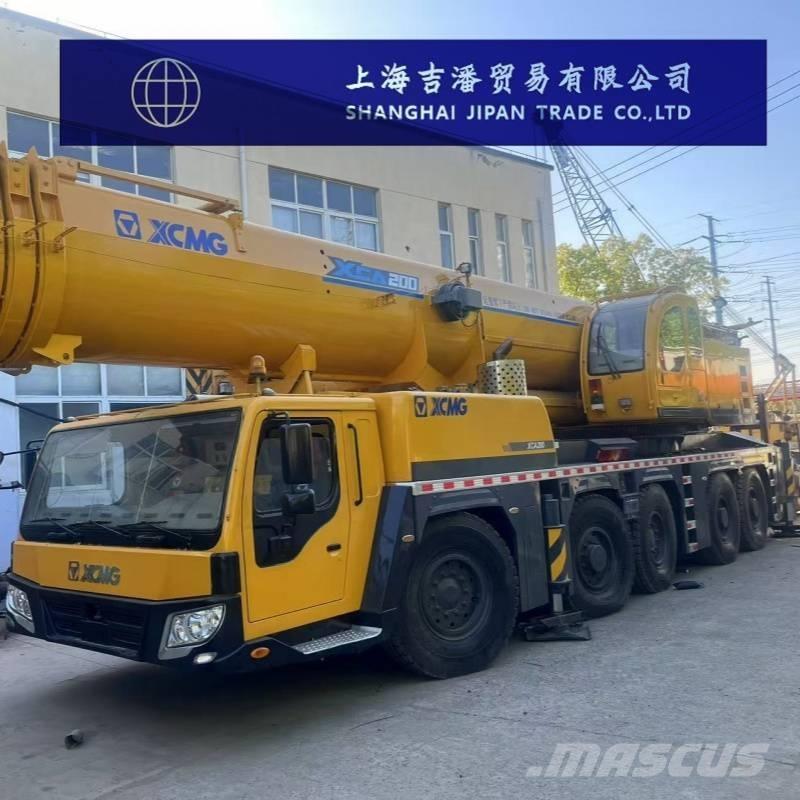

XCMG XCA 200

Fly Jib Hook Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Basic parameters The overall length of the machine is 15,350mm Overall width of the machine: 3000mm Overall height of the machine: 3950mm Wheelbase:2650/1650/2900/1650mm Wheel base:2590/2590/2590/2590/2590 mm Axial load:11650/11650/11650/10020/10020 kg Maximum driving speed: ≥80km/h Minimum stable driving speed:1-1.5km/h Minimum turning diameter: ≤18.5m Minimum ground clearance: 307mm Approach Angle:18° Departure Angle:14° Fuel consumption per 100 kilometers:72 liters Longitudinal span of outriggers:9.19m Maximum rotational speed: ≥1.5r/min The turning radius at the tail of the turntable (at the counterweight point):5100mm Full extension time of the boom: ≤720 seconds Engine parameters Chassis engine model: MC13.54-50/MC13.54-61 The rated power of the chassis engine is 338kW The rated power of the engine on the vehicle is 221kW Lifting capacity parameters Maximum rated total lifting capacity:200 tons The maximum lifting moment of the basic boom is 6,657 kN·m Longest main arm:90 meters Fixed auxiliary arm:18.5m The maximum length of the main boom and auxiliary boom is 118.5 meters Job performance parameters Working range: The maximum working range is 84 meters Load-bearing extension and retraction: The main arm can extend and retract under load at any point within the working condition range. The comprehensive performance is no less than 40% of the rated load, and the maximum performance is 70% of the rated load. It has a wide construction range and the efficiency is increased by 30% to 50% Variable support: Supports any combination of outrigger extension lengths, flexible operation, safe and stable Full-action wireless remote control: Operated by a single person, it can achieve the disassembly and assembly of counterweights, foot pads, and auxiliary arms, reducing operational cost input Other parameters Hydraulic system:Utilizing advanced hydraulic technology, the system features high working pressure and large flow rate, ensuring that all movements of the crane are completed smoothly, quickly and accurately. Electrical system:Equipped with an intelligent electrical control system, it features functions such as fault diagnosis and automatic protection, enhancing the reliability and safety of the crane. Safety devices:A variety of safety devices are installed, such as overload protection devices, moment limiters, height limiters, amplitude limiters, anti-overturning devices, etc., to ensure the safety of the crane during operation
