Dimenzije prostora za tovor (DxŠxV)
8000/2400/2100 m
Transportne dimenzije (DxŠxV)
9930 x 2550 x 2825 mm
Ohranjenost profila sprednjih pnevmatik
100
Ohranjenost profila zadnjih pnevmatik
100
Maksimalna nosilnost
16.7 m3
Drugi podatki
DESIGN

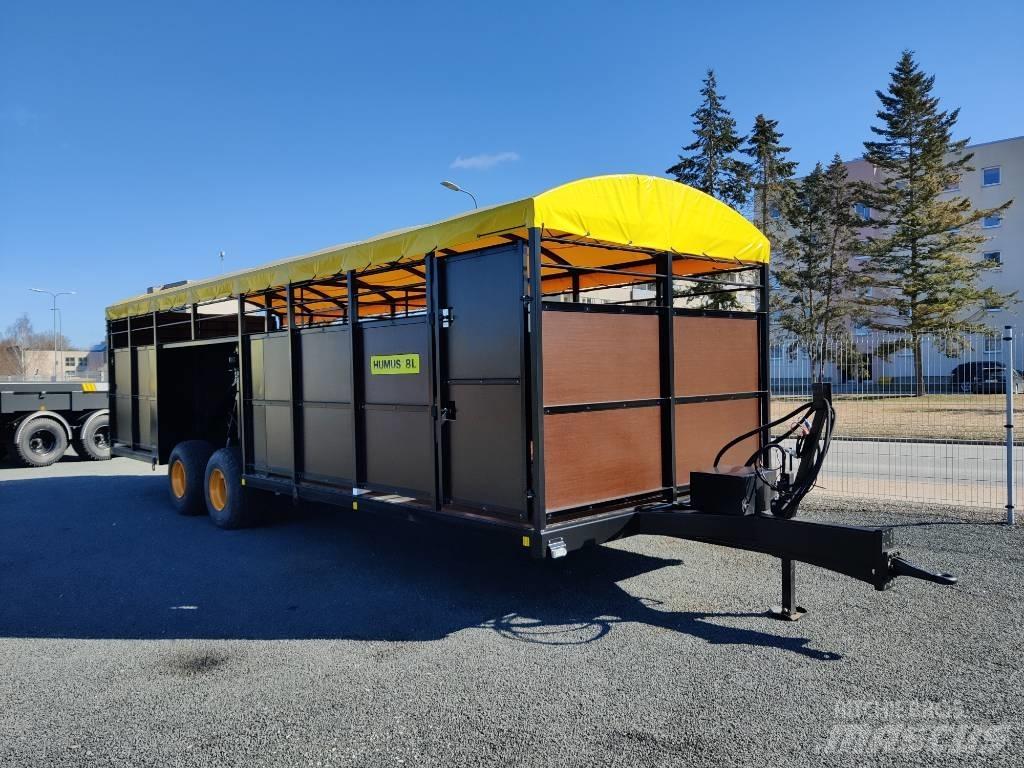

The Humus livestock trailer is hydraulically lowerable. It has high wheel covers so that animals can lean onto them and balance better while driving. In addition the trailer can also be equipped with non-slippery floor coating (optional equipment), which significantly decrease the slipperiness of the floor and the risk of animals injuring themselves.
Adjustable fences can be installed inside the trailer, so that the space inside the trailer is divided into areas of various size. This concept provides an advantage, for example when older animals need to be separated from the young or livestock needs to be transported with a half-empty trailer.
FUNCTIONALITY
The fences and back hatch of the Humus livestock trailers are constructed to be opened and closed with one movement. This way, fences can be closed quickly after the animals are loaded onto the trailer, so that they can no longer turn around or back out. The fence can be quickly and safely removed from in front of the animals with one movement the same way.
Some space has been left between the floor and walls of the trailer to make the interior washing of the livestock trailer faster and easier. This way, dirt runs off fast when hosed with water.
SPECIFICATION
Length (mm) 9930
Width (mm) 2550
Height (mm) 2825
Internal size for loading (mm) 8000/2400/2100
Useable loading area (m²) 16,7
Side wall plywood (mm) 12
Unladen weight (kg) 3500
Maximum load capacity (kg) 8500
Total weight (kg) 12000
Speed limit (km/h) 40
Loading area divider yes
Folding gates for catching yes
Roof material covertent
Standard wheels 400/60-15,5

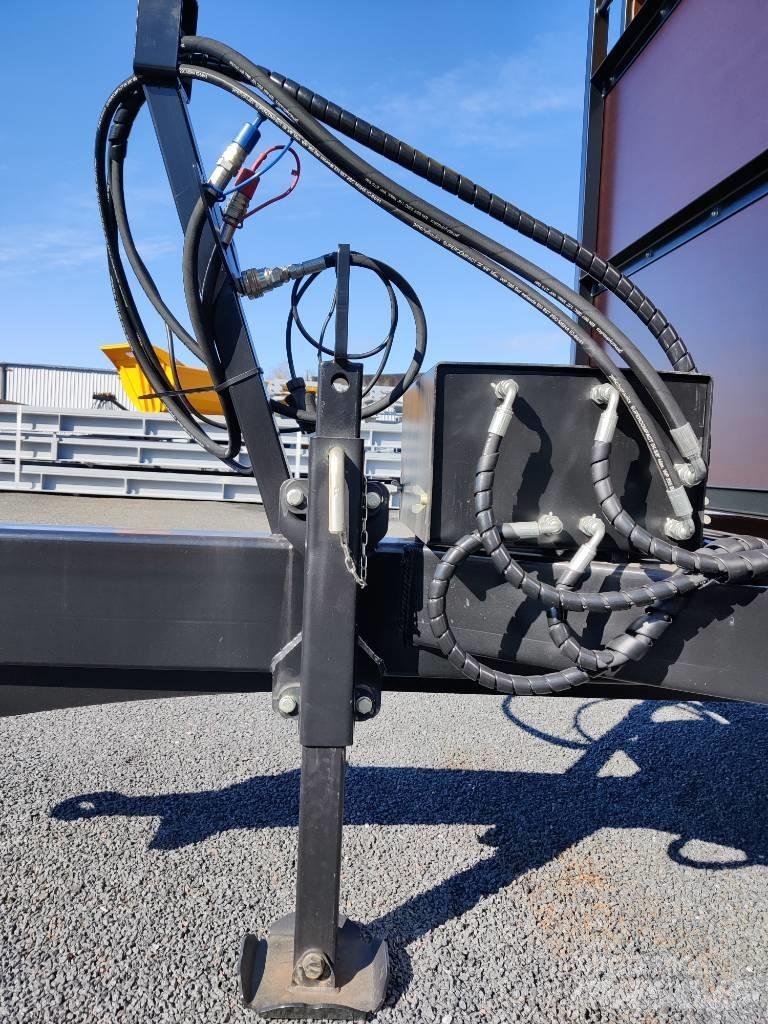

Hydraulic suspension yes
Brakes (hydraulical) all wheelsNaprej
